SpringAOP的原理

Posted on 2020-12-05 Edited on 2025-02-22 In 后端 , Spring Views: Word count in article: 50k Reading time ≈ 46 mins.

SpringAOP的概述和使用已经在之前的文章中讲过，此篇文章就根据一个测试用例简单介绍基于注解的SpringAOP的原理。测试用例如下：
- 导入有关SpringAOP的依赖：
1
2
3
4
5
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aspects</artifactId>
<version>5.2.5.RELEASE</version>
</dependency>
- 编写测试用例如下：

@Service
public class MathCalculator {
    public int add(int i, int j) {
        System.out.println("add目标方法执行");
        return i + j;
    }

    public int sub(int i, int j) {
        System.out.println("sub目标方法执行");
        return i - j;
    }

    public int mul(int i, int j) {
        System.out.println("mul目标方法执行");
        return i*j;
    }

    public int div(int i, int j) {
        System.out.println("div目标方法执行");
        return i/j;
    }
}

@Component
@Aspect
public class LogUtil {

    @Pointcut("execution(* com.example.aop.MathCalculator.*(int,int))")
    public void myPoint(){
    }

    //在目标方法开始之前执行
    @Before("myPoint()")
    public static void logStart(JoinPoint joinPoint){
        //获取目标方法运行时使用的参数
        Object[] args = joinPoint.getArgs();
        //获取到方法签名
        Signature signature = joinPoint.getSignature();
        String name = signature.getName();
        System.out.println("LogUtil前置：" + name +"方法开始执行，参数列表为：" + Arrays.asList(args));
    }

    //在目标方法正常返回后执行
    @AfterReturning(value = "myPoint()",returning = "result")
    public static void logReturn(JoinPoint joinPoint,Object result){
        Signature signature = joinPoint.getSignature();
        String name = signature.getName();
        System.out.println("LogUtil返回：" + name +"方法执行完成,执行结果为:" + result);
    }

    //在目标方法出现异常后执行
    @AfterThrowing(value = "myPoint()",throwing = "exception")
    public static void logException(JoinPoint joinPoint, Exception exception){
        Signature signature = joinPoint.getSignature();
        String name = signature.getName();
        System.out.println("LogUtil异常：" + name + "方法出现异常,异常信息为:" + exception);
    }

    //在目标方法结束完后执行
    @After("myPoint()")
    public static void logEnd(JoinPoint joinPoint){
        Signature signature = joinPoint.getSignature();
        String name = signature.getName();
        System.out.println("LogUtil后置：" + name + "方法执行结束");
    }
}

@Configuration
//开启基于注解的aop模式
@EnableAspectJAutoProxy
@ComponentScan("com.example.aop")
public class MainConfig {

}

public class MainTest {
    public static void main(String[] args) {
        AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(MainConfig.class);
        MathCalculator bean = applicationContext.getBean(MathCalculator.class);
        bean.add(1,1);
        System.out.println("****************");
        bean.div(1,0);
    }
}

执行结果：

LogUtil前置：add方法开始执行，参数列表为：[1, 1]
add目标方法执行
LogUtil后置：add方法执行结束
LogUtil返回：add方法执行完成,执行结果为:2
****************
LogUtil前置：div方法开始执行，参数列表为：[1, 0]
div目标方法执行
LogUtil后置：div方法执行结束
LogUtil异常：div方法出现异常,异常信息为:java.lang.ArithmeticException: / by zero

读源码之前先了解一些基础知识：
- 在使用 ApplicationContext 相关实现类加载 bean 的时候，会对所有单例且非懒加载的 bean，在构造 ApplicationContext 的时候就会初始化好这些 bean，而不会等到使用的时候才去初始化。这也就是单例 bean 默认非懒加载的应用。
- 结合以上，被代理后的 bean，实际在 ApplicationContext 构造完成之后就已经被创建完成，getBean() 的操作直接从一级缓存 singletonObjects 中获取即可。
- beanPostProcessor 和 beanFactoryPostProcessor ：
  - beanPostProcessor 接口： bean 后置处理器。beanPostProcessor 能在 spring 容器实例化 bean 之后，bean 初始化前或后对 bean 做一些修改。而 aop 的功能实现正式基于此，在 bean 初始化后创建针对该 bean 的 proxy，然后返回给用户该 proxy。
  - beanFactoryPostProcessor 接口：beanFactoryPostProcessor 接口是针对 bean 容器的，它的实现类可以在当前 spring 容器加载 bean 定义后，bean 实例化之前修改 bean 的定义属性，达到影响之后实例化 bean 的效果。
- spring 中单例 bean 的初始化主要过程：
  - createBeanInstance：实例化，其实也就是调用对象的构造方法实例化对象。
  - populateBean：填充属性，这一步主要是多 bean 的依赖属性进行填充。
  - initializeBean：初始化，执行该 bean 的一些初始化方法。

基于注解的方式实现AOP需要在配置类中添加注解@EnableAspectJAutoProxy。我们就先从这个注解看一下Spring实现AOP的过程，此注解的定义如下：

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {

    /**
     * 控制创建动态代理方式：
     * true:①如果目标对象实现了接口则使用CGLIB代理机制。②如果目标对象没有接口(只有实现类)也使用CGLIB代理机制。
     * false:①如果目标对象实现了接口则使用JDK动态代理机制(代理所有实现了的接口)。②如果目标对象没有接口(只有实现类)则使用CGLIB代理机制。
     */
	boolean proxyTargetClass() default false;

    //是否通过aop框架暴露该代理对象。
	boolean exposeProxy() default false;
}

①从此注解的定义可知其通过@Import(AspectJAutoProxyRegistrar.class)给容器中导入了AspectJAutoProxyRegistrar，通过看源码可知此类是ImportBeanDefinitionRegistrar接口的实现类，即可以利用此组件自定义给容器中注册bean，这里是给利用此组件给容器中注册了一个名为”org.springframework.aop.config.internalAutoProxyCreator”的AnnotationAwareAspectJAutoProxyCreator。

//AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
@Nullable
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {
    return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null);
}

//AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null)
@Nullable
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
    BeanDefinitionRegistry registry, @Nullable Object source) {
	//向容器中注册AnnotationAwareAspectJAutoProxyCreator。
    return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
}

//AopConfigUtils.registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source)
@Nullable
private static BeanDefinition registerOrEscalateApcAsRequired(
    Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {

    Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
    //如果容器中已经包含internalAutoProxyCreator这个组件。
    if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
        BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
        if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
            int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
            int requiredPriority = findPriorityForClass(cls);
            if (currentPriority < requiredPriority) {
                apcDefinition.setBeanClassName(cls.getName());
            }
        }
        return null;
    }
    //注册AnnotationAwareAspectJAutoProxyCreator，这里的cls是AnnotationAwareAspectJAutoProxyCreator。
    RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
    beanDefinition.setSource(source);
    beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
    beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
    //将beanDefinition注册进registry中,注册名为AUTO_PROXY_CREATOR_BEAN_NAME="org.springframework.aop.config.internalAutoProxyCreator"。
    registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
    return beanDefinition;
}

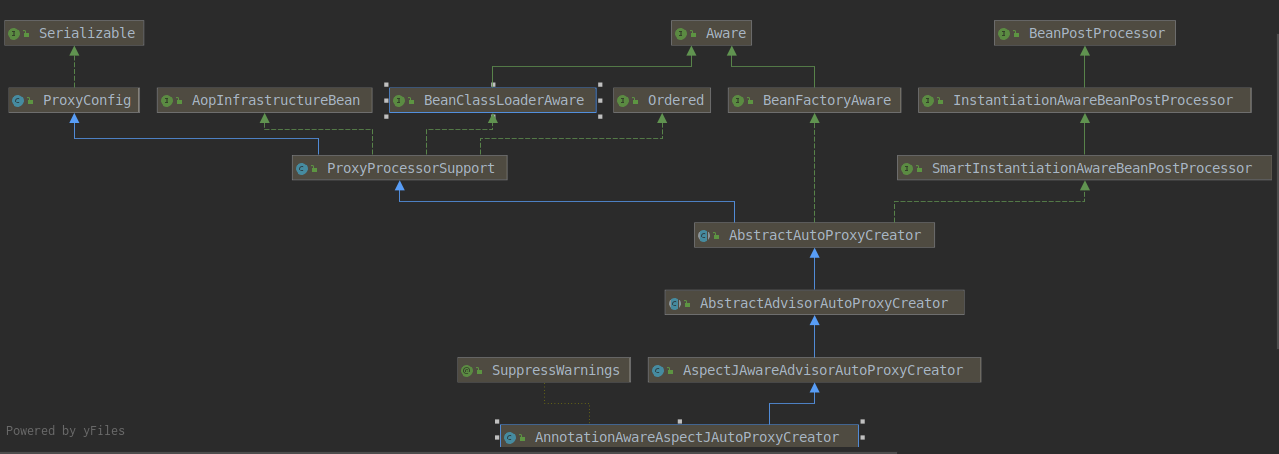

AnnotationAwareAspectJAutoProxyCreator类的继承树如下图，这里主要关注后置处理器SmartInstantiationAwareBeanPostProcessor和自动装备Bean工厂BeanFactoryAware相关的方法。

首先AnnotationAwareAspectJAutoProxyCreator继承了AbstractAutoProxyCreator实现了BeanFactoryAware接口，所以在创建AnnotationAwareAspectJAutoProxyCreatorBean的过程中初始化方法里面会调用setBeanFactory方法，在setBeanFactory方法里面调用initBeanFactory来初始化通知者检索帮助类，后面检索通知会用到。

//AbstractAdvisorAutoProxyCreator
@Override
public void setBeanFactory(BeanFactory beanFactory) {
    super.setBeanFactory(beanFactory);
    if (!(beanFactory instanceof ConfigurableListableBeanFactory)) {
        throw new IllegalArgumentException(
            "AdvisorAutoProxyCreator requires a ConfigurableListableBeanFactory: " + beanFactory);
    }
    initBeanFactory((ConfigurableListableBeanFactory) beanFactory);
}

//父类AbstractAdvisorAutoProxyCreator中的initBeanFactory方法
protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    this.advisorRetrievalHelper = new BeanFactoryAdvisorRetrievalHelperAdapter(beanFactory);
}

@SuppressWarnings("serial")
public class AnnotationAwareAspectJAutoProxyCreator extends AspectJAwareAdvisorAutoProxyCreator {

    //重写了父类AbstractAdvisorAutoProxyCreator中的initBeanFactory方法。
    @Override
    protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
        super.initBeanFactory(beanFactory);
        if (this.aspectJAdvisorFactory == null) {
            this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
        }
        this.aspectJAdvisorsBuilder =
            new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
    }
}

②其次AnnotationAwareAspectJAutoProxyCreator继承了AbstractAutoProxyCreator实现了InstantiationAwareBeanPostProcessor接口，该接口定义了2个方法：postProcessBeforeInstantiation和postProcessAfterInstantiation，所以AbstractAutoProxyCreator实现了这2个方法。在讲Spring启动流程的源码分析里AbstractAutowireCapableBeanFactory.createBean(beanName, mbd, args)中调用了resolveBeforeInstantiation(beanName, mbdToUse)执行了所有实现了InstantiationAwareBeanPostProcessor接口的类的postProcessBeforeInstantiation方法。

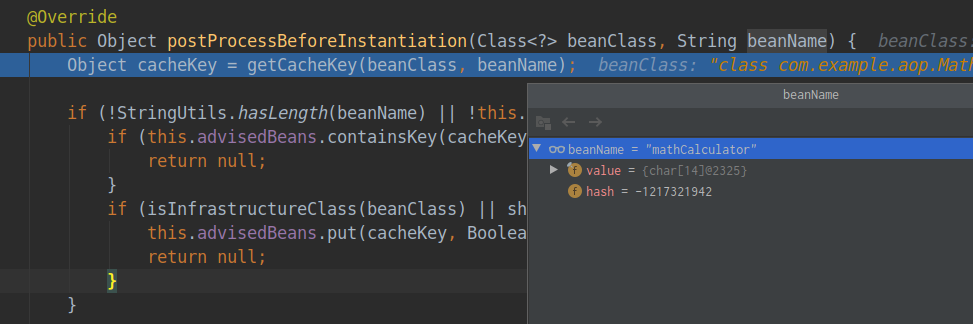

//AbstractAutoProxyCreator类实现InstantiationAwareBeanPostProcessor接口中的方法。
/**
  * 在创建Bean的流程中还没调用构造器来实例化Bean的时候进行调用
  * AOP解析切面以及事务解析事务注解都是在这里完成的
  * @param beanClass 当前正在创建的Bean的Class对象
  * @param beanName beanName
  * @return
  * @throws BeansException
*/
@Override
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
    //构建我们的缓存key
    Object cacheKey = getCacheKey(beanClass, beanName);

    if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
        //如果被解析过直接返回
        if (this.advisedBeans.containsKey(cacheKey)) {
            return null;
        }
        /**
        * 判断是不是基础的Bean（Advice、PointCut、Advisor、AopInfrastructureBean）是就直接跳过
        * 判断是不是应该跳过 (AOP解析直接解析出我们的切面信息(并且把我们的切面信息进行缓存)，而事务在这里是不会解析的)
        */
        if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
            this.advisedBeans.put(cacheKey, Boolean.FALSE);
            return null;
        }
    }

    // Create proxy here if we have a custom TargetSource.
    // Suppresses unnecessary default instantiation of the target bean:
    // The TargetSource will handle target instances in a custom fashion.
    TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
    if (targetSource != null) {
        if (StringUtils.hasLength(beanName)) {
            this.targetSourcedBeans.add(beanName);
        }
        Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
        Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
        this.proxyTypes.put(cacheKey, proxy.getClass());
        return proxy;
    }

    return null;
}

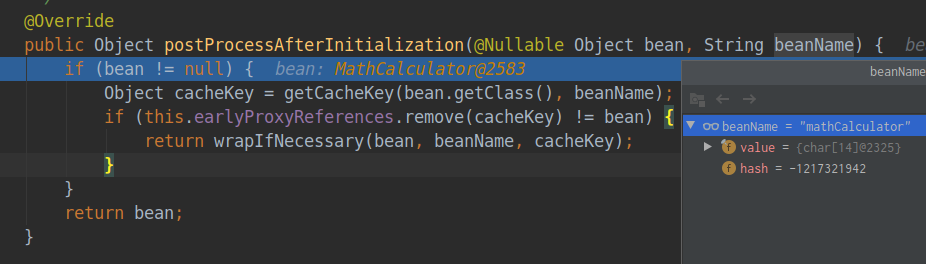

如果有返回值则触发BeanPostProcessor.postProcessAfterInitialization()方法。

//AbstractAutoProxyCreator类实现BeanPostProcessor接口中的方法。
@Override
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
    if (bean != null) {
        Object cacheKey = getCacheKey(bean.getClass(), beanName);
        if (this.earlyProxyReferences.remove(cacheKey) != bean) {
            return wrapIfNecessary(bean, beanName, cacheKey);
        }
    }
    return bean;
}

③通过测试用例的debug分析运行流程：

①传入配置类，创建ioc容器（new AnnotationConfigApplicationContext(MainConfig.class)）。

public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
    //调用无参构造创建对象。
    this();
    //注册配置类。
    register(componentClasses);
    //刷新容器，初始化容器创建需要的bean。
    refresh();
}

②注册配置类后调用refresh()刷新容器。refresh()方法调用方法registerBeanPostProcessors(beanFactory)，即注册BeanPostProcessor（Bean的后置处理器），用于拦截bean创建过程。此方法完成了AnnotationAwareAspectJAutoProxyCreator的注册。
- ①先获取ioc容器已经定义了的需要创建对象的所有BeanPostProcessor。
- ②向容器中注册后置处理器BeanPostProcessorChecker。
- ③先注册实现了PriorityOrdered接口的BeanPostProcessor。
- ④再给容器中注册实现了Ordered接口的BeanPostProcessor。
- ⑤注册没实现优先级接口的BeanPostProcessor。
- ⑥最后重新注册所有内部BeanPostProcessor。

③AnnotationAwareAspectJAutoProxyCreator的注册是在上述第大③步的registerBeanPostProcessors(beanFactory)方法中完成的，由继承关系可知其实现了Ordered接口，所以是在上述第②大步中的第④小步中完成的。

①getBean(ppName, BeanPostProcessor.class)方法通过调用doGetBean(name, requiredType, null, false)—>getSingleton()—>createBean(beanName, mbd, args)—>doCreateBean(beanName, mbdToUse, args)方法，可见创建此后置处理器的实例重点在doCreateBean(beanName, mbdToUse, args)方法：

①创建Bean的实例。
②给bean的各种属性赋值。

③初始化bean。

①处理Aware接口的方法回调，此时执行之前打断点处的AbstractAdvisorAutoProxyCreator.setBeanFactory方法。

@Override
public void setBeanFactory(BeanFactory beanFactory) {
    super.setBeanFactory(beanFactory);
    if (!(beanFactory instanceof ConfigurableListableBeanFactory)) {
        throw new IllegalArgumentException(
            "AdvisorAutoProxyCreator requires a ConfigurableListableBeanFactory: " + beanFactory);
    }
    initBeanFactory((ConfigurableListableBeanFactory) beanFactory);
}

紧接着调用AnnotationAwareAspectJAutoProxyCreator.initBeanFactory(beanFactory)方法。

@Override
protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    super.initBeanFactory(beanFactory);
    if (this.aspectJAdvisorFactory == null) {
        this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
    }
    this.aspectJAdvisorsBuilder =
        new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
}

②执行后置处理器初始化之前的方法（postProcessBeforeInitialization()）。
③执行自定义的初始化方法。
④执行后置处理器初始化之后的方法（postProcessAfterInitialization()）。

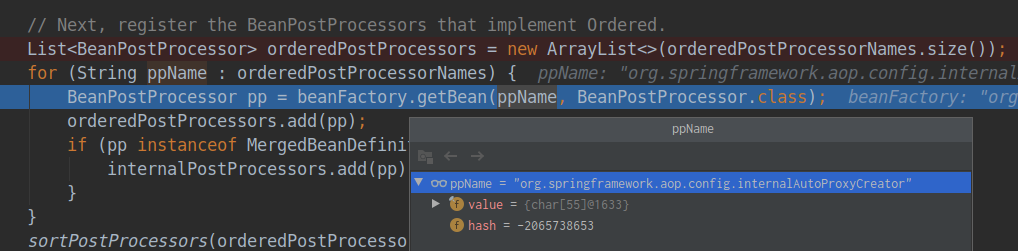

②至此beanFactory.getBean(ppName, BeanPostProcessor.class)执行成功，接下来将注册和初始化成功的AnnotationAwareAspectJAutoProxyCreator注册到BeanFactory中(registerBeanPostProcessors(beanFactory, orderedPostProcessors))。

List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
for (String ppName : orderedPostProcessorNames) {
    BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
    orderedPostProcessors.add(pp);
    if (pp instanceof MergedBeanDefinitionPostProcessor) {
        internalPostProcessors.add(pp);
    }
}
//按照优先级排序。
sortPostProcessors(orderedPostProcessors, beanFactory);
//注册到容器中。
registerBeanPostProcessors(beanFactory, orderedPostProcessors);

private static void registerBeanPostProcessors(
    ConfigurableListableBeanFactory beanFactory, List<BeanPostProcessor> postProcessors) {

    for (BeanPostProcessor postProcessor : postProcessors) {
        beanFactory.addBeanPostProcessor(postProcessor);
    }
}

④注册完BeanPostProcessor后，refresh()还调用了方法finishBeanFactoryInitialization(beanFactory) ，创建剩下的单实例bean。

①调用DefaultListableBeanFactory.preInstantiateSingletons()方法，遍历获取容器中所有的Bean，实例化所有剩余的(非懒加载初始化)单例bean。

②调用getBean(beanName)方法创建bean实例，此方法的执行过程还是调用doGetBean(name, requiredType, null, false)—>getSingleton()—>createBean(beanName, mbd, args)—>doCreateBean(beanName, mbdToUse, args)完成。在此过程中的createBean(beanName, mbd, args)调用了resolveBeforeInstantiation(beanName, mbdToUse)，即让BeanPostProcessor有机会返回代理而不是目标bean实例。

@Nullable
  protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
      Object bean = null;
      if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
          // Make sure bean class is actually resolved at this point.
          // 确保此时bean类已经被解析。
          if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
              Class<?> targetType = determineTargetType(beanName, mbd);
              if (targetType != null) {
                  //拿到所有后置处理器，如果是InstantiationAwareBeanPostProcessor，就执行postProcessBeforeInstantiation。
                  bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
                  //如果有返回值则触发postProcessAfterInitialization()。
                  if (bean != null) {
                      bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
                  }
              }
          }
          mbd.beforeInstantiationResolved = (bean != null);
      }
      return bean;
  }

  @Nullable
  protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
      for (BeanPostProcessor bp : getBeanPostProcessors()) {
          if (bp instanceof InstantiationAwareBeanPostProcessor) {
              InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
              //执行InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation方法。
              Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
              if (result != null) {
                  return result;
              }
          }
      }
      return null;
  }

  @Override
  public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
      throws BeansException {

      Object result = existingBean;
      for (BeanPostProcessor processor : getBeanPostProcessors()) {
          //执行BeanPostProcessor.postProcessAfterInitialization方法。
          Object current = processor.postProcessAfterInitialization(result, beanName);
          if (current == null) {
              return result;
          }
          result = current;
      }
      return result;
  }

postProcessBeforeInstantiation方法是InstantiationAwareBeanPostProcessor接口中定义的方法，其会在applyBeanPostProcessorsBeforeInstantiation方法中被调用，同时也是在创建Bean实例之前先尝试用后置处理器返回对象的。而BeanPostProcessor是在Bean对象创建完成初始化前后调用的。

③这时通过上面的applyBeanPostProcessorsBeforeInstantiation方法执行InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation()方法，即来到我们一开始打好断点的AbstractAutoProxyCreator类中的postProcessBeforeInstantiation()方法。即开始了Spring创建AOP代理的步骤。现在通过debug来到mathCalculator的创建。

@Override
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
    Object cacheKey = getCacheKey(beanClass, beanName);

    if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
        //判断当前bean是否在advisedBeans中（advisedBeans保存了所有需要增强的bean）。
        if (this.advisedBeans.containsKey(cacheKey)) {
            return null;
        }
        //判断当前bean是否基础类型Advice、Pointcut、Advisor、AopInfrastructureBean，或是否切面（@Aspect）的。而且判断是否需要跳过。
        if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
            this.advisedBeans.put(cacheKey, Boolean.FALSE);
            return null;
        }
    }

    // Create proxy here if we have a custom TargetSource.
    // Suppresses unnecessary default instantiation of the target bean:
    // The TargetSource will handle target instances in a custom fashion.
  //如果我们有一个自定义TargetSource，则在这里创建代理并返回。
    TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
  if (targetSource != null) {
        if (StringUtils.hasLength(beanName)) {
          this.targetSourcedBeans.add(beanName);
        }
      Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
        Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
      this.proxyTypes.put(cacheKey, proxy.getClass());
        return proxy;
  }

  return null;
}

①判断当前bean是否在advisedBeans中（advisedBeans保存了所有需要增强的bean）。
②判断当前bean是否基础类型Advice、Pointcut、Advisor、AopInfrastructureBean，或是否切面（@Aspect）的，这里返回false。

③判断是否需要跳过（shouldSkip(beanClass, beanName)），这里也返回false。

@Override
protected boolean shouldSkip(Class<?> beanClass, String beanName) {
    // TODO: Consider optimization by caching the list of the aspect names
    //获取候选的增强器（切面里面的通知方法），即把当前切面里的四个通知方法包装成四个增强器List<Advisor> candidateAdvisors。增强器的类型为InstantiationModelAwarePointcutAdvisor。
    List<Advisor> candidateAdvisors = findCandidateAdvisors();
    //判断每一个增强器是否是AspectJPointcutAdvisor类型的。
    for (Advisor advisor : candidateAdvisors) {
        if (advisor instanceof AspectJPointcutAdvisor &&
            ((AspectJPointcutAdvisor) advisor).getAspectName().equals(beanName)) {
            return true;
        }
    }
    //返回false。
    return super.shouldSkip(beanClass, beanName);
}

①调用findCandidateAdvisors()获取候选的增强器（切面里面的通知方法），即把当前切面里的四个通知方法包装成四个增强器List<Advisor> candidateAdvisors。且增强器的类型为InstantiationModelAwarePointcutAdvisor。

@Override
protected List<Advisor> findCandidateAdvisors() {
    //找出事务相关的advisor
    List<Advisor> advisors = super.findCandidateAdvisors();
    //找出Aspect相关的信息之后封装为一个advisor
    if (this.aspectJAdvisorsBuilder != null) {
        advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
    }
    //返回我们所有的通知
    return advisors;
}

①调用super.findCandidateAdvisors()找出事务相关的advisor。

protected List<Advisor> findCandidateAdvisors() {
    Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");
    //通过通知者检测帮助类来帮助我们找到通知
    return this.advisorRetrievalHelper.findAdvisorBeans();
}

②调用this.aspectJAdvisorsBuilder.buildAspectJAdvisors()找出Aspect相关的信息之后封装为一个advisor。

/**
     * 去容器中获取到所有的切面信息保存到缓存中
     **/
public List<Advisor> buildAspectJAdvisors() {
    List<String> aspectNames = this.aspectBeanNames;
    //缓存字段aspectNames没有值，注意实例化第一个单实例bean的时候就会触发解析切面
    if (aspectNames == null) {
        synchronized (this) {
            aspectNames = this.aspectBeanNames;
            if (aspectNames == null) {
                //用于保存所有解析出来的Advisors集合对象
                List<Advisor> advisors = new ArrayList<>();
                //用于保存切面的名称的集合
                aspectNames = new ArrayList<>();
                /**
                         * AOP功能中在这里传入的是Object对象，代表去容器中获取到所有的组件的名称，然后再
                         * 进行遍历，这个过程是十分的消耗性能的，所以说Spring会再这里加入了保存切面信息的缓存。
                         * 但是事务功能不一样，事务模块的功能是直接去容器中获取Advisor类型的，选择范围小，且不消耗性能。
                         * 所以Spring在事务模块中没有加入缓存来保存我们的事务相关的advisor
                         */
                String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
                    this.beanFactory, Object.class, true, false);
                //遍历我们从IOC容器中获取处的所有Bean的名称
                for (String beanName : beanNames) {
                    if (!isEligibleBean(beanName)) {
                        continue;
                    }
                    //通过beanName去容器中获取到对应class对象
                    Class<?> beanType = this.beanFactory.getType(beanName);
                    if (beanType == null) {
                        continue;
                    }
                    //根据class对象判断是不是切面 @Aspect
                    if (this.advisorFactory.isAspect(beanType)) {
                        //是切面类
                        //加入到缓存中
                        aspectNames.add(beanName);
                        //把beanName和class对象构建成为一个AspectMetadata
                        AspectMetadata amd = new AspectMetadata(beanType, beanName);
                        if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {

                            //构建切面注解的实例工厂
                            MetadataAwareAspectInstanceFactory factory =
                                new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
                            //真正的去获取我们的Advisor
                            List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
                            //加入到缓存中
                            if (this.beanFactory.isSingleton(beanName)) {
                                this.advisorsCache.put(beanName, classAdvisors);
                            }
                            else {
                                this.aspectFactoryCache.put(beanName, factory);
                            }
                            advisors.addAll(classAdvisors);
                        }
                        else {
                            // Per target or per this.
                            if (this.beanFactory.isSingleton(beanName)) {
                                throw new IllegalArgumentException("Bean with name '" + beanName +
                                                                   "' is a singleton, but aspect instantiation model is not singleton");
                            }
                            MetadataAwareAspectInstanceFactory factory =
                                new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
                            this.aspectFactoryCache.put(beanName, factory);
                            advisors.addAll(this.advisorFactory.getAdvisors(factory));
                        }
                    }
                }
                this.aspectBeanNames = aspectNames;
                return advisors;
            }
        }
    }

    if (aspectNames.isEmpty()) {
        return Collections.emptyList();
    }
    List<Advisor> advisors = new ArrayList<>();
    for (String aspectName : aspectNames) {
        List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
        if (cachedAdvisors != null) {
            advisors.addAll(cachedAdvisors);
        }
        else {
            MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
            advisors.addAll(this.advisorFactory.getAdvisors(factory));
        }
    }
    return advisors;
}

①调用this.advisorFactory.isAspect(beanType)根据class对象判断是不是切面 @Aspect。

@Override
public boolean isAspect(Class<?> clazz) {
    return (hasAspectAnnotation(clazz) && !compiledByAjc(clazz));
}

1
2
3

private boolean hasAspectAnnotation(Class<?> clazz) {
  return (AnnotationUtils.findAnnotation(clazz, Aspect.class) != null);
}

②真正的去获取我们的Advisor，this.advisorFactory.getAdvisors(factory)方法如下。

@Override
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
    //获取我们的标记为Aspect的类
    Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
    //获取我们的切面类的名称
    String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
    //校验我们的切面类
    validate(aspectClass);

    //我们使用的是包装模式来包装我们的MetadataAwareAspectInstanceFactory构建为MetadataAwareAspectInstanceFactory
    MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
        new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);

    List<Advisor> advisors = new ArrayList<>();
    //获取到切面类中的所有方法，但是该方法不会解析到标注了@PointCut注解的方法
    for (Method method : getAdvisorMethods(aspectClass)) {
        //循环解析我们切面中的方法
        Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName);
        if (advisor != null) {
            advisors.add(advisor);
        }
    }

    if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
        Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
        advisors.add(0, instantiationAdvisor);
    }

    for (Field field : aspectClass.getDeclaredFields()) {
        Advisor advisor = getDeclareParentsAdvisor(field);
        if (advisor != null) {
            advisors.add(advisor);
        }
    }

    return advisors;
}

这里面会调用getAdvisorMethods(aspectClass)获取切面上的通知方法，并按照规则排序。

private List<Method> getAdvisorMethods(Class<?> aspectClass) {
    final List<Method> methods = new ArrayList<>();
    ReflectionUtils.doWithMethods(aspectClass, method -> {
        // Exclude pointcuts
        if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
            methods.add(method);
        }
    }, ReflectionUtils.USER_DECLARED_METHODS);
    if (methods.size() > 1) {
        methods.sort(METHOD_COMPARATOR);
    }
    return methods;
}

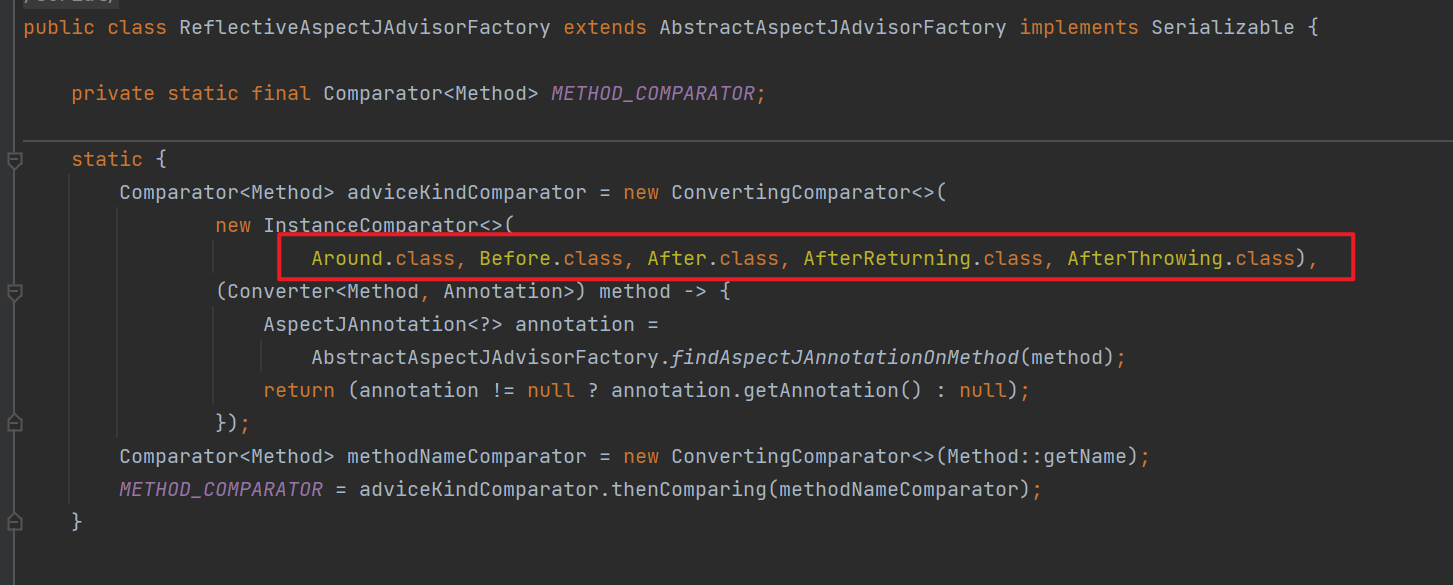

排序的规则如下：

接着会调用getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName)一一根据切面方法创建增强器。

@Override
@Nullable
public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
                          int declarationOrderInAspect, String aspectName) {

    validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
    //切面的方法上构建切点表达式
    AspectJExpressionPointcut expressionPointcut = getPointcut(
        candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
    if (expressionPointcut == null) {
        return null;
    }
    //实例化我们的切面通知对象
    return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
                                                          this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}

其中实例化切面通知对象代码如下：

public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut,
                                                  Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory,
                                                  MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {

    //当前的切点表达式
    this.declaredPointcut = declaredPointcut;
    //切面的class对象
    this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
    //切面方法的名称
    this.methodName = aspectJAdviceMethod.getName();
    //切面方法的参数类型
    this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
    //切面方法对象
    this.aspectJAdviceMethod = aspectJAdviceMethod;
    //aspectj的通知工厂
    this.aspectJAdvisorFactory = aspectJAdvisorFactory;
    //aspect的实例工厂
    this.aspectInstanceFactory = aspectInstanceFactory;
    //切面的顺序
    this.declarationOrder = declarationOrder;
    //切面的名称
    this.aspectName = aspectName;

    /**
                 * 判断当前的切面对象是否需要延时加载
                 */
    if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
        // Static part of the pointcut is a lazy type.
        Pointcut preInstantiationPointcut = Pointcuts.union(
            aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);

        // Make it dynamic: must mutate from pre-instantiation to post-instantiation state.
        // If it's not a dynamic pointcut, it may be optimized out
        // by the Spring AOP infrastructure after the first evaluation.
        this.pointcut = new PerTargetInstantiationModelPointcut(
            this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);
        this.lazy = true;
    }
    else {
        // A singleton aspect.
        this.pointcut = this.declaredPointcut;
        this.lazy = false;
        //将切面中的通知构造为advice通知对象
        this.instantiatedAdvice = instantiateAdvice(this.declaredPointcut);
    }
}

里面通过调用instantiateAdvice(this.declaredPointcut)将切面中的通知构造为advice通知对象：

private Advice instantiateAdvice(AspectJExpressionPointcut pointcut) {
    Advice advice = this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pointcut,
                                                         this.aspectInstanceFactory, this.declarationOrder, this.aspectName);
    return (advice != null ? advice : EMPTY_ADVICE);
}

public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
                        MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {

    //获取我们的切面类的class对象
    Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
    validate(candidateAspectClass);

    //获取切面方法上的注解
    AspectJAnnotation<?> aspectJAnnotation =
        AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
    //解析出来的注解信息是否为null
    if (aspectJAnnotation == null) {
        return null;
    }

    //再次判断是否是切面对象
    if (!isAspect(candidateAspectClass)) {
        throw new AopConfigException("Advice must be declared inside an aspect type: " +
                                     "Offending method '" + candidateAdviceMethod + "' in class [" +
                                     candidateAspectClass.getName() + "]");
    }

    if (logger.isDebugEnabled()) {
        logger.debug("Found AspectJ method: " + candidateAdviceMethod);
    }

    AbstractAspectJAdvice springAdvice;

    //判断标注在方法上的注解类型
    switch (aspectJAnnotation.getAnnotationType()) {
            //是PointCut注解 那么就抛出异常 因为在外面传递进来的方法已经排除了Pointcut的方法
        case AtPointcut:
            if (logger.isDebugEnabled()) {
                logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
            }
            return null;
            //环绕通知 构建AspectJAroundAdvice
        case AtAround:
            springAdvice = new AspectJAroundAdvice(
                candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            break;
            //前置通知  构建AspectJMethodBeforeAdvice
        case AtBefore:
            springAdvice = new AspectJMethodBeforeAdvice(
                candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            break;
            //后置通知 AspectJAfterAdvice
        case AtAfter:
            springAdvice = new AspectJAfterAdvice(
                candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            break;
            //返回通知 AspectJAfterReturningAdvice
        case AtAfterReturning:
            springAdvice = new AspectJAfterReturningAdvice(
                candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();
            if (StringUtils.hasText(afterReturningAnnotation.returning())) {
                springAdvice.setReturningName(afterReturningAnnotation.returning());
            }
            break;
            //异常通知   AspectJAfterThrowingAdvice
        case AtAfterThrowing:
            springAdvice = new AspectJAfterThrowingAdvice(
                candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
            AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();
            if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
                springAdvice.setThrowingName(afterThrowingAnnotation.throwing());
            }
            break;
        default:
            throw new UnsupportedOperationException(
                "Unsupported advice type on method: " + candidateAdviceMethod);
    }

    //设置我们构建出来的通知对象的相关属性比如DeclarationOrder，在代理调用的时候，责任链顺序上会用到
    springAdvice.setAspectName(aspectName);
    springAdvice.setDeclarationOrder(declarationOrder);
    String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
    if (argNames != null) {
        springAdvice.setArgumentNamesFromStringArray(argNames);
    }
    springAdvice.calculateArgumentBindings();

    return springAdvice;
}

③到此所有的切面方法解析完成，如果该切面是单实例的就加入到缓存中。

if (this.beanFactory.isSingleton(beanName)) {
    this.advisorsCache.put(beanName, classAdvisors);
}
else {
    this.aspectFactoryCache.put(beanName, factory);
}
advisors.addAll(classAdvisors);

④遍历所有的切面，将每个切面的所有的增强器添加在advisors中进行返回。

List<Advisor> advisors = new ArrayList<>();
for (String aspectName : aspectNames) {
    List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
    if (cachedAdvisors != null) {
        advisors.addAll(cachedAdvisors);
    }
    else {
        MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
        advisors.addAll(this.advisorFactory.getAdvisors(factory));
    }
}
return advisors;

②判断每一个增强器是否是AspectJPointcutAdvisor类型的，如果是则返回true，由于这里的四个增强器都是InstantiationModelAwarePointcutAdvisor类型的，所以永远返回false。

for (Advisor advisor : candidateAdvisors) {
    if (advisor instanceof AspectJPointcutAdvisor &&
        ((AspectJPointcutAdvisor) advisor).getAspectName().equals(beanName)) {
        return true;
    }
}

③最后调用父类的shouldSkip()返回false，就是不跳过的意思。
④如果我们有一个自定义TargetSource，则在这里创建代理并返回。至此postProcessBeforeInstantiation执行完成。

④这时通过上面的applyBeanPostProcessorsAfterInitialization方法执行BeanPostProcessor.postProcessAfterInitialization()方法，即来到我们一开始打好断点的AbstractAutoProxyCreator.postProcessAfterInitialization()方法，其主要就是通过前面创建的增强器来创建代理对象。

@Override
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
    if (bean != null) {
      //获取缓存key
        Object cacheKey = getCacheKey(bean.getClass(), beanName);
      if (this.earlyProxyReferences.remove(cacheKey) != bean) {
            //如果有必要就代理
          return wrapIfNecessary(bean, beanName, cacheKey);
        }
    }
  return bean;
}

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
    //已经被处理过
    if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
        return bean;
    }
    //不需要增强的
    if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
        return bean;
    }
    //是不是基础的bean 是不是需要跳过的
    if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
        this.advisedBeans.put(cacheKey, Boolean.FALSE);
        return bean;
    }

    // Create proxy if we have advice.
    //获取当前bean的所有增强器（通知方法）。
    //如果有匹配的通知,就创建代理对象
    Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
    //如果当前bean需要增强，则进入创建代理对象的过程。
    if (specificInterceptors != DO_NOT_PROXY) {
        //设置当前的对象已处理
        this.advisedBeans.put(cacheKey, Boolean.TRUE);
        //创建代理对象。
        Object proxy = createProxy(
            bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
        //加入到缓存
        this.proxyTypes.put(cacheKey, proxy.getClass());
        return proxy;
    }

    this.advisedBeans.put(cacheKey, Boolean.FALSE);
    return bean;
}

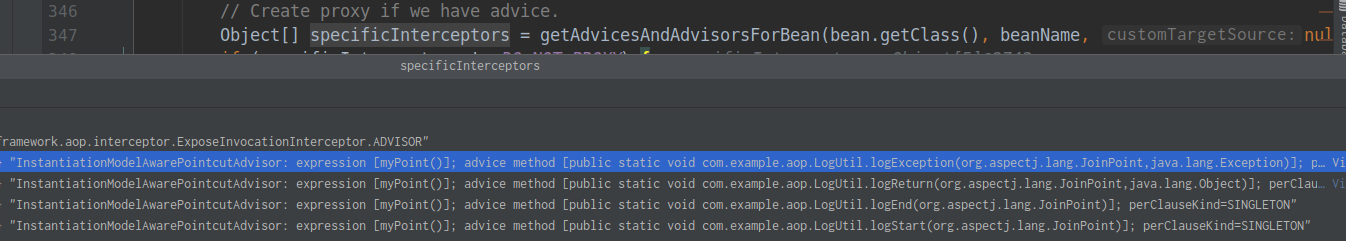

①获取当前bean的所有增强器（通知方法）：Object[] specificInterceptors。

@Override
@Nullable
protected Object[] getAdvicesAndAdvisorsForBean(
    Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
  	//找合适的增强器对象
    List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
  //若为空表示没找到
    if (advisors.isEmpty()) {
      return DO_NOT_PROXY;
    }
    return advisors.toArray();
}

①获取到能在bean使用的增强器。

②给增强器排序。

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
    //获取所有可用的增强器。
    List<Advisor> candidateAdvisors = findCandidateAdvisors();
    //获取当前bean可用的增强器。
  List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
  extendAdvisors(eligibleAdvisors);
  if (!eligibleAdvisors.isEmpty()) {
      //给增强器排序。
      eligibleAdvisors = sortAdvisors(eligibleAdvisors);
  }
  return eligibleAdvisors;
}

protected List<Advisor> findAdvisorsThatCanApply(
    List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {

    ProxyCreationContext.setCurrentProxiedBeanName(beanName);
    try {
        //从候选的通知器中找到合适正在创建的实例对象的通知器
        return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
    }
  finally {
        ProxyCreationContext.setCurrentProxiedBeanName(null);
  }
}

//AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
    //若候选的增强器集合为空 直接返回
    if (candidateAdvisors.isEmpty()) {
        return candidateAdvisors;
    }
    //定义一个合适的增强器集合对象
    List<Advisor> eligibleAdvisors = new ArrayList<>();
    //循环我们候选的增强器对象
    for (Advisor candidate : candidateAdvisors) {
        //判断我们的增强器对象是不是实现了IntroductionAdvisor (很明显我们事务的没有实现 所以不会走下面的逻辑)
        if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
            eligibleAdvisors.add(candidate);
        }
    }
    //不为空
    boolean hasIntroductions = !eligibleAdvisors.isEmpty();
    for (Advisor candidate : candidateAdvisors) {
        //判断我们的增强器对象是不是实现了IntroductionAdvisor (很明显我们事务的没有实现 所以不会走下面的逻辑)
        if (candidate instanceof IntroductionAdvisor) {
            // already processed
            //在上面已经处理过 ，不需要处理
            continue;
        }
        //真正的判断增强器是否合适当前类型
        if (canApply(candidate, clazz, hasIntroductions)) {
            eligibleAdvisors.add(candidate);
        }
    }
    return eligibleAdvisors;
}

//AopUtils.canApply(candidate, clazz, hasIntroductions)
public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
    //判断我们的增强器是否是IntroductionAdvisor
    if (advisor instanceof IntroductionAdvisor) {
        return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
    }
    //判断我们事务的增强器BeanFactoryTransactionAttributeSourceAdvisor是否实现了PointcutAdvisor
    else if (advisor instanceof PointcutAdvisor) {
        //转为PointcutAdvisor类型
        PointcutAdvisor pca = (PointcutAdvisor) advisor;
        //找到真正能用的增强器
        return canApply(pca.getPointcut(), targetClass, hasIntroductions);
    }
    else {
        // It doesn't have a pointcut so we assume it applies.
        return true;
    }
}


public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
    Assert.notNull(pc, "Pointcut must not be null");
    if (!pc.getClassFilter().matches(targetClass)) {
        return false;
    }
    //通过切点获取到一个方法匹配器对象
    MethodMatcher methodMatcher = pc.getMethodMatcher();
    if (methodMatcher == MethodMatcher.TRUE) {
        // No need to iterate the methods if we're matching any method anyway...
        return true;
    }
    //判断匹配器是不是IntroductionAwareMethodMatcher
    IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
    if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
        introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
    }
    //创建一个集合用于保存targetClass的class对象
    Set<Class<?>> classes = new LinkedHashSet<>();
    //判断当前class是不是代理的class对象
    if (!Proxy.isProxyClass(targetClass)) {
        //加入到集合中去
        classes.add(ClassUtils.getUserClass(targetClass));
    }
    //获取到targetClass所实现的接口的class对象，然后加入到集合中
    classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
    //循环所有的class对象
    for (Class<?> clazz : classes) {
        //通过class获取到所有的方法
        Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
        //循环我们的方法
        for (Method method : methods) {
            //通过methodMatcher.matches来匹配我们的方法
            if (introductionAwareMethodMatcher != null ?
                introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
                methodMatcher.matches(method, targetClass)) {
                return true;
            }
        }
    }

    return false;
}

②如果当前bean需要增强，则将进入创建代理对象的过程。当前的bean为mathCalculator，需要增强。
③保存当前bean在advisedBeans中。

④创建当前bean的代理对象，即调用createProxy()方法。

protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
                             @Nullable Object[] specificInterceptors, TargetSource targetSource) {

    if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
        AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
    }
    //创建一个代理对象工厂
    ProxyFactory proxyFactory = new ProxyFactory();
    proxyFactory.copyFrom(this);
    //为proxyFactory设置创建jdk还是cglib代理
    if (!proxyFactory.isProxyTargetClass()) {
        if (shouldProxyTargetClass(beanClass, beanName)) {
            proxyFactory.setProxyTargetClass(true);
        }
        else {
            evaluateProxyInterfaces(beanClass, proxyFactory);
        }
    }
    //把我们的specificInterceptors数组中的Advisor转化为数组形式的
    Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
    //保存到代理工厂。
    proxyFactory.addAdvisors(advisors);
    //设置targetSource对象
    proxyFactory.setTargetSource(targetSource);
    customizeProxyFactory(proxyFactory);

    proxyFactory.setFrozen(this.freezeProxy);
    if (advisorsPreFiltered()) {
        proxyFactory.setPreFiltered(true);
    }
    //创建代理对象。
    return proxyFactory.getProxy(getProxyClassLoader());
}

①获取当前bean的所有增强器（通知方法）。
②保存到proxyFactory。

③创建代理对象proxyFactory.getProxy(getProxyClassLoader()。

JdkDynamicAopProxy(config)：jdk动态代理。

ObjenesisCglibAopProxy(config)：cglib的动态代理。

  //此方法在ProxyFactory类中。
  public Object getProxy(@Nullable ClassLoader classLoader) {
      return createAopProxy().getProxy(classLoader);
  }

  //此方法在ProxyCreatorSupport类中。
  protected final synchronized AopProxy createAopProxy() {
    if (!this.active) {
          activate();
    }
      return getAopProxyFactory().createAopProxy(this);
  }

  //此方法在DefaultAopProxyFactory类中。
  @Override
  public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
      //判断我们是否指定使用cglib代理ProxyTargetClass =true  默认false
      if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
          Class<?> targetClass = config.getTargetClass();
          if (targetClass == null) {
              throw new AopConfigException("TargetSource cannot determine target class: " +
                                           "Either an interface or a target is required for proxy creation.");
          }
          //targetClass是接口使用的就是jdk代理
          if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
              //创建JDK动态代理（基于接口）。
              return new JdkDynamicAopProxy(config);
          }
          //创建CGLIB的动态代理（基于类）
          return new ObjenesisCglibAopProxy(config);
      }
      else {
          return new JdkDynamicAopProxy(config);
    }
}

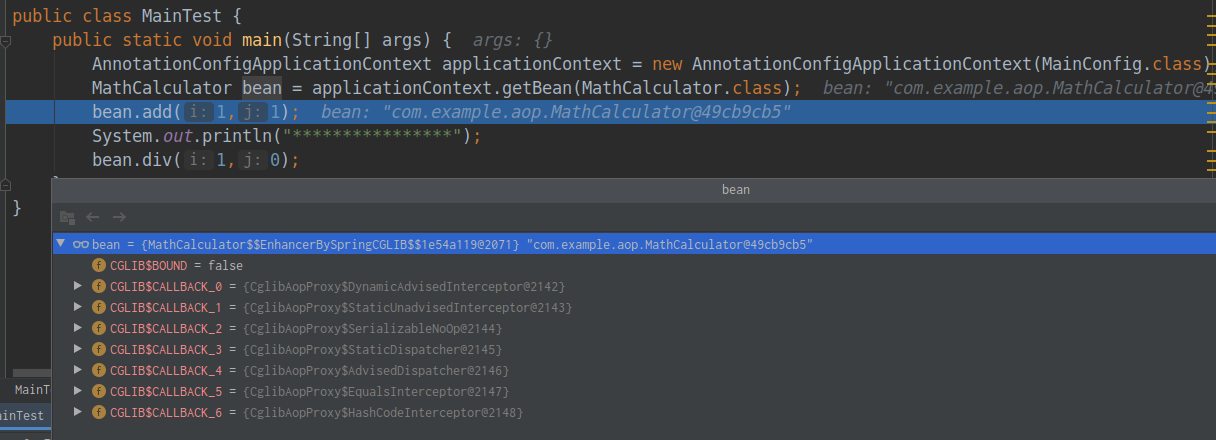

④返回代理对象。由于上面测试用例中的MathCalculator没有实现任何接口，因此在默认情况下Spring使用的是基于CGLIB的动态代理。以后容器中获取到的就是这个组件的代理对象，执行目标方法的时候，代理对象就会执行通知方法的流程。

⑤创建代理对象成功并返回后，现在回到测试用例，debug目标方法的执行过程。

①目标方法执行时，会先进入CglibAopProxy类的intercept方法。

@Override
@Nullable
public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
    Object oldProxy = null;
    boolean setProxyContext = false;
    Object target = null;
    //获取到我们的目标对象
    TargetSource targetSource = this.advised.getTargetSource();
    try {
        //这个配置是暴露我们的代理对象到线程变量中，需要搭配@EnableAspectJAutoProxy(exposeProxy = true)一起使用，比如在目标对象方法中再次获取代理对象可以使用这个AopContext.currentProxy()，还有的就是事务方法调用事务方法的时候也是用到这个
        if (this.advised.exposeProxy) {
            // Make invocation available if necessary.
            //把我们的代理对象暴露到线程变量中
            oldProxy = AopContext.setCurrentProxy(proxy);
            setProxyContext = true;
        }
        // Get as late as possible to minimize the time we "own" the target, in case it comes from a pool...
        //目标对象，也就是切入点对象。
        target = targetSource.getTarget();
        //获取我们目标对象的class
        Class<?> targetClass = (target != null ? target.getClass() : null);
        //把aop的advisor转化为拦截器链
        List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
        Object retVal;
        // Check whether we only have one InvokerInterceptor: that is,
        // no real advice, but just reflective invocation of the target.
        //如果没有拦截器链。
        if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) {
            // We can skip creating a MethodInvocation: just invoke the target directly.
            // Note that the final invoker must be an InvokerInterceptor, so we know
            // it does nothing but a reflective operation on the target, and no hot
            // swapping or fancy proxying.
            //通过反射直接调用执行
            Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
            // 直接执行目标方法。
            retVal = methodProxy.invoke(target, argsToUse);
        }
        else {
            //如果有拦截器链则把需要执行的目标对象，目标方法，拦截器链等信息传入并创建一个CglibMethodInvocation对象，最后调用其proceed()方法。
            // We need to create a method invocation...
            retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
        }
        retVal = processReturnType(proxy, target, method, retVal);
      return retVal;
    }
  finally {
        if (target != null && !targetSource.isStatic()) {
          targetSource.releaseTarget(target);
        }
      if (setProxyContext) {
            // Restore old proxy.
        AopContext.setCurrentProxy(oldProxy);
        }
}
}

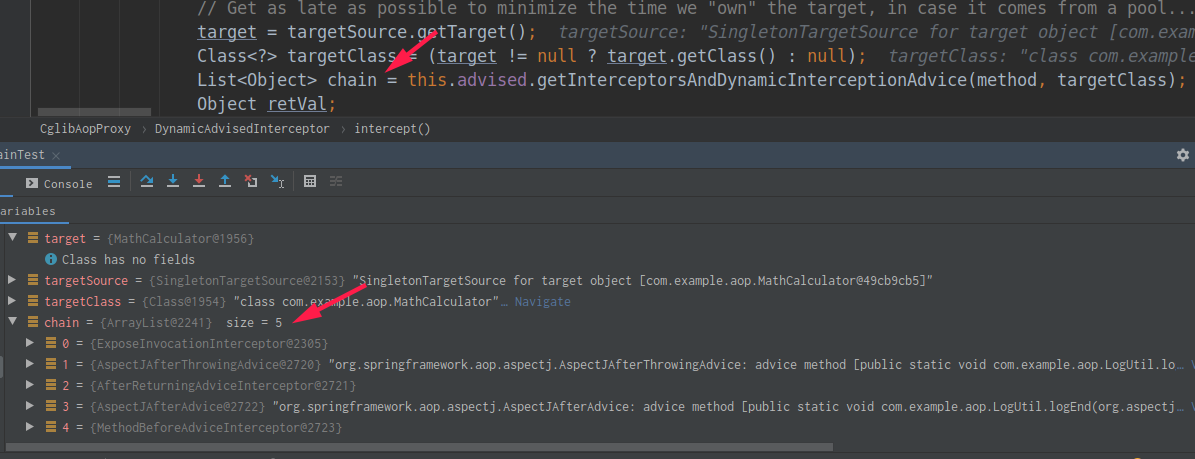

①根据ProxyFactory对象获取将要执行的目标方法拦截器链（每一个通知方法又被包装为方法拦截器，后来每个方法的执行都是利用MethodInterceptor机制）。

  //此方法在AdvisedSupport类中。
  public List<Object> getInterceptorsAndDynamicInterceptionAdvice(Method method, @Nullable Class<?> targetClass) {
      //缓存目标方法。
      MethodCacheKey cacheKey = new MethodCacheKey(method);
      //获取缓存中目标方法的拦截器链。
      List<Object> cached = this.methodCache.get(cacheKey);
      //缓存中没有获取到拦截器链。
      if (cached == null) {
          //获取目标方法的拦截器链。
          cached = this.advisorChainFactory.getInterceptorsAndDynamicInterceptionAdvice(
              this, method, targetClass);
          this.methodCache.put(cacheKey, cached);
      }
      return cached;
}

//此方法在DefaultAdvisorChainFactory类中。
@Override
public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
    Advised config, Method method, @Nullable Class<?> targetClass) {
    // This is somewhat tricky... We have to process introductions first,
    // but we need to preserve order in the ultimate list.
    AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
    Advisor[] advisors = config.getAdvisors();
    //保存所有拦截器。
    List<Object> interceptorList = new ArrayList<>(advisors.length);
    Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());
    Boolean hasIntroductions = null;
    //遍历所有增强器。
    for (Advisor advisor : advisors) {
        //如果是切入点增强器。
        if (advisor instanceof PointcutAdvisor) {
            // Add it conditionally.
            PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
            if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
                MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
                boolean match;
                if (mm instanceof IntroductionAwareMethodMatcher) {
                    if (hasIntroductions == null) {
                        hasIntroductions = hasMatchingIntroductions(advisors, actualClass);
                    }
                    match = ((IntroductionAwareMethodMatcher) mm).matches(method, actualClass, hasIntroductions);
                }
                else {
                    match = mm.matches(method, actualClass);
                }
                if (match) {
                    MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
                    if (mm.isRuntime()) {
                        // Creating a new object instance in the getInterceptors() method
                        // isn't a problem as we normally cache created chains.
                        for (MethodInterceptor interceptor : interceptors) {
                            interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
                        }
                    }
                    else {
                        interceptorList.addAll(Arrays.asList(interceptors));
                    }
                }
            }
        }
        else if (advisor instanceof IntroductionAdvisor) {
            IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
            if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
                Interceptor[] interceptors = registry.getInterceptors(advisor);
                interceptorList.addAll(Arrays.asList(interceptors));
            }
        }
        else {
            Interceptor[] interceptors = registry.getInterceptors(advisor);
            interceptorList.addAll(Arrays.asList(interceptors));
        }
    }

    return interceptorList;
}

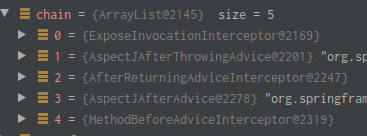

①通过List<Object> interceptorList保存所有拦截器，此时长度为5（一个默认的ExposeInvocationInterceptor和4个增强器）。

②遍历所有的增强器，将其转为Interceptor，即调用registry.getInterceptors(advisor)。

//此方法在DefaultAdvisorAdapterRegistry类中。
@Override
public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
    List<MethodInterceptor> interceptors = new ArrayList<>(3);
    Advice advice = advisor.getAdvice();
    //如果advice增强器是MethodIntercept类型。
    if (advice instanceof MethodInterceptor) {
        interceptors.add((MethodInterceptor) advice);
    }
    //遍历适配器。
    for (AdvisorAdapter adapter : this.adapters) {
        //适配器类型与增强器类型匹配。
        if (adapter.supportsAdvice(advice)) {
            //将增强器装换成MethodIntercept类型。
            interceptors.add(adapter.getInterceptor(advisor));
        }
    }
    if (interceptors.isEmpty()) {
        throw new UnknownAdviceTypeException(advisor.getAdvice());
    }
    return interceptors.toArray(new MethodInterceptor[0]);
}

①如果是MethodInterceptor，直接加入到集合中。

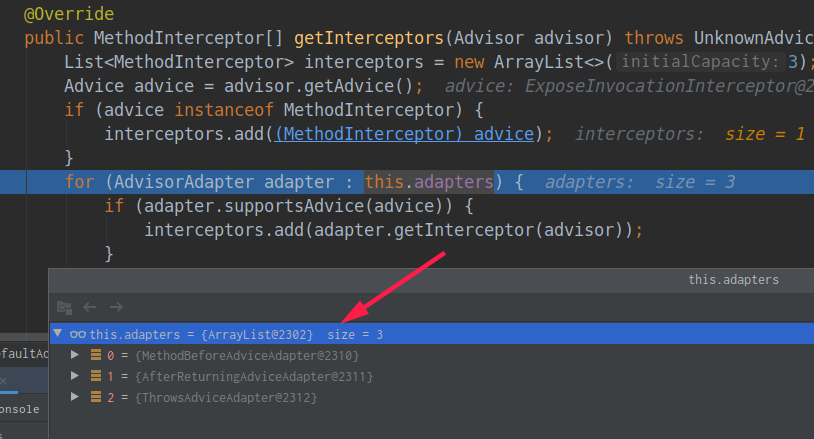

②如果不是，使用AdvisorAdapter将增强器转为MethodInterceptor。适配器内容如下图：

③转换完成返回MethodInterceptor数组。

②如果没有拦截器链，直接执行目标方法。
③如果有拦截器链则把需要执行的目标对象，目标方法，拦截器链等信息传入并创建一个CglibMethodInvocation对象，最后调用其proceed()方法。

④再创建了一个CglibMethodInvocation()对象后，通过调用proceed()实现目标方法的调用。

//此方法在CglibAopProxy类中。
@Override
@Nullable
public Object proceed() throws Throwable {
    try {
        return super.proceed();
    }
    catch (RuntimeException ex) {
        throw ex;
    }
    catch (Exception ex) {
        if (ReflectionUtils.declaresException(getMethod(), ex.getClass())) {
            throw ex;
      }
        else {
          throw new UndeclaredThrowableException(ex);
        }
    }
}

//此方法在ReflectiveMethodInvocation类中。
@Override
@Nullable
public Object proceed() throws Throwable {
    // We start with an index of -1 and increment early.
    //this.currentInterceptorIndex初始值为-1，用于记录拦截器的索引。
    //或者拦截器的索引和拦截器数组-1大小一样（指定到了最后一个拦截器）
    if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
        //执行目标方法。
      return invokeJoinpoint();
    }
  //从拦截器链中获取拦截器。
    Object interceptorOrInterceptionAdvice =
        this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
    //如果获取的拦截器是动态匹配方法拦截器类型。
    if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
        // Evaluate dynamic method matcher here: static part will already have
        // been evaluated and found to match.
        InterceptorAndDynamicMethodMatcher dm =
            (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
      Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
        if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
          return dm.interceptor.invoke(this);
        }
      else {
            // Dynamic matching failed.
            // Skip this interceptor and invoke the next in the chain.
            // 动态匹配失败。跳过这个拦截器并调用链中的下一个。
            return proceed();
        }
    }
    else {
        // It's an interceptor, so we just invoke it: The pointcut will have
        // been evaluated statically before this object was constructed.
    // 调用拦截器:切入点将在构造这个对象之前被静态地计算。
        return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
}
}


+ ①链式获取每一个拦截器，拦截器执行invoke方法，每一个拦截器等待下一个拦截器执行完成返回以后再来执行（递归调用），**拦截器链的机制，保证通知方法与目标方法的执行顺序**。五个拦截器的信息如下：

  {% asset_img 12.png  %}

  + ①ExposeInvocationInterceptor的invoke方法：

      ```java
      @Override
      public Object invoke(MethodInvocation mi) throws Throwable 	   {
          MethodInvocation oldInvocation = invocation.get();
          invocation.set(mi);
          try {
              return mi.proceed();
          }
          finally {
              invocation.set(oldInvocation);
          }
      }

②AspectJAfterThrowingAdvice的invoke方法：

@Override
public Object invoke(MethodInvocation mi) throws Throwable 	   {
    try {
        return mi.proceed();
    }
    catch (Throwable ex) {
        if (shouldInvokeOnThrowing(ex)) {
            //执行异常通知。
            invokeAdviceMethod(getJoinPointMatch(), null, ex);
        }
        throw ex;
    }
}

③AfterReturningAdviceInterceptor的invoke方法：

@Override
public Object invoke(MethodInvocation mi) throws Throwable     {
    //如果此方法执行后没有异常则直接执行返回通知；如果有异常则抛给上个拦截器。
    Object retVal = mi.proceed();
    this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());
    return retVal;
}

④AspectJAfterAdvice的invoke方法：

@Override
public Object invoke(MethodInvocation mi) throws Throwable     {
    try {
        return mi.proceed();
    }
    finally {
        //执行后置通知。
        invokeAdviceMethod(getJoinPointMatch(), null, null);
    }
}

⑤MethodBeforeAdviceInterceptor的invoke方法：

@Override
public Object invoke(MethodInvocation mi) throws Throwable     {
    //调用前置通知。
    this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
    return mi.proceed();
}

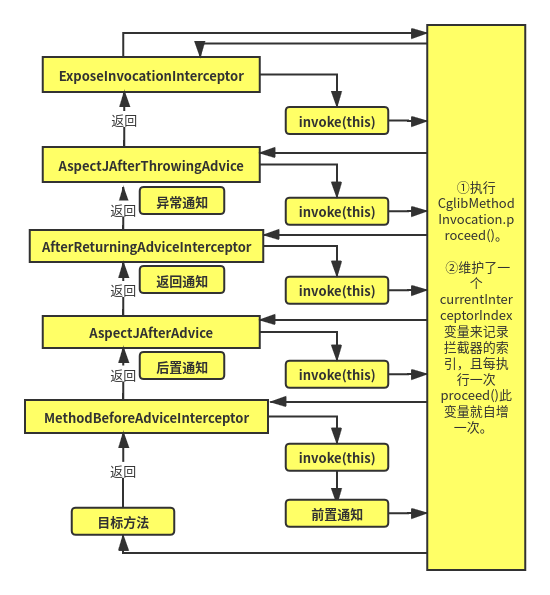

图解：

总结：

通过@EnableAspectJAutoProxy注解开启AOP功能，该注解为我们Spring容器中注册了AnnotationAwareAspectJAuto ProxyCreator组件，AOP的准备和代理创建都在这个组件中完成，AnnotationAwareAspectJAutoProxyCreator继承AbstractAuto ProxyCreator实现了InstantiationAwareBeanPostProcessor接口，在方法postProcessBeforeInstantiation中找到Spring容器中所有的增强器，为创建代理做准备；AnnotationAwareAspectJAutoProxyCreator继承了AbstractAutoProxyCreator实现了BeanPost Processor接口，在方法postProcessAfterInitialization中通过前面找到的候选增强器中找到合适的增强器来创建代理对象，最后调用目标方法，进去到代理对象的invoke方法中进行调用。
- @EnableAspectJAutoProxy 开启AOP功能。
- @EnableAspectJAutoProxy 会给容器中注册一个组件 AnnotationAwareAspectJAutoProxyCreator，它是一个后置处理器。
- 容器的创建流程：
  - registerBeanPostProcessors()注册后置处理器，创建AnnotationAwareAspectJAutoProxyCreator对象。
  - finishBeanFactoryInitialization()初始化剩下的单实例bean。
    - 创建业务逻辑组件和切面组件。
    - AnnotationAwareAspectJAutoProxyCreator拦截组件的创建过程。
    - 组件创建完之后，判断组件是否需要增强(如果是则把切面的通知方法包装成增强器(Advisor)，给业务逻辑组件创建一个代理对象(cglib))。
- 执行目标方法：
  - 代理对象执行目标方法。
  - CglibAopProxy.intercept()：
    - 得到目标方法的拦截器链（增强器包装成拦截器MethodInterceptor）。
    - 利用拦截器的链式机制，依次进入每一个拦截器进行执行。
    - 正常执行：前置通知–>目标方法–>后置通知–>返回通知。
    - 出现异常：前置通知–>目标方法–>后置通知–>异常通知。
