Java之AQS

Posted on 2021-02-06 Edited on 2024-07-22 In 后端 , Java多线程 Views: Word count in article: 53k Reading time ≈ 49 mins.

1、ReentrantLock介绍

相对于synchronized它具备如下特点:
- 可中断。
- 可以设置超时时间。
- 可以设置为公平锁。
- 支持多个条件变量。
- 与synchronized一样，都支持可重入。

基本语法：

// 获取锁
reentrantLock.lock();
try {
 // 临界区
} finally {
 // 释放锁
 reentrantLock.unlock();
}

1.1 可重入

可重入是指同一个线程如果首次获得了这把锁，那么因为它是这把锁的拥有者，因此有权利再次获取这把锁。

如果是不可重入锁，那么第二次获得锁时，自己也会被锁挡住。

@Slf4j
public class TestReentrantLock {
    static ReentrantLock lock = new ReentrantLock();
    public static void main(String[] args) {
        lock.lock();
        try {
            log.debug("execute main");
            method1();
        }finally {

        }
    }

    public static void method1() {
        lock.lock();
        try {
            log.debug("execute method1");
            method2();
        } finally {
            lock.unlock();
        }
    }
    public static void method2() {
        lock.lock();
        try {
            log.debug("execute method2");
        } finally {
            lock.unlock();
        }
    }
}

执行结果：

1
2
3

11:41:05.613 org.example.TestReentrantLock [main] - execute main
11:41:05.617 org.example.TestReentrantLock [main] - execute method1
11:41:05.617 org.example.TestReentrantLock [main] - execute method2

1.2 可打断

可打断是指当前线程在等待锁释放的过程中可以被其它线程所打断。

@Slf4j
public class TestReentrantLock {
    static ReentrantLock lock = new ReentrantLock();
    public static void main(String[] args) throws InterruptedException {
        Thread t1 = new Thread(() -> {
            try {
                //如果没有竞争那么此方法会获取lock对象锁
                //如果有竞争就进入阻塞队列,可以被其它线程用interrupt方法打断
                log.debug("尝试获取锁");
                lock.lockInterruptibly();
            } catch (InterruptedException e) {
                e.printStackTrace();
                log.debug("没有获得锁,返回");
                return;
            }
            try {
                log.debug("获得到锁");
            } finally {
                lock.unlock();
            }
        },"t1");
		//主线程先获得锁
        lock.lock();
        t1.start();
        Thread.sleep(1000);
        log.debug("打断t1");
        t1.interrupt();
    }
}

执行结果：

11:48:27.116 org.example.TestReentrantLock [t1] - 尝试获取锁
11:48:28.117 org.example.TestReentrantLock [main] - 打断t1
11:48:28.117 org.example.TestReentrantLock [t1] - 没有获得锁,返回
java.lang.InterruptedException
	at java.util.concurrent.locks.AbstractQueuedSynchronizer.doAcquireInterruptibly(AbstractQueuedSynchronizer.java:898)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer.acquireInterruptibly(AbstractQueuedSynchronizer.java:1222)
	at java.util.concurrent.locks.ReentrantLock.lockInterruptibly(ReentrantLock.java:335)
	at org.example.TestReentrantLock.lambda$main$0(TestReentrantLock.java:21)
	at java.lang.Thread.run(Thread.java:748)

1.3 锁超时

锁超时是指在等待获得锁超过一定时间就会主动放弃等待，表示此次尝试获取锁失败，即可以避免该线程无限等待下去。

①获取不到锁则立刻放弃等待的情况。

@Slf4j
public class TestReentrantLock {
    static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) throws InterruptedException {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获得锁");
            if (!lock.tryLock()) {
                log.debug("获取不到锁");
                return;
            }
            try {
                log.debug("获得到锁");
            } finally {
                lock.unlock();
            }
        }, "t1");

        lock.lock();
        t1.start();
    }
}

运行结果：

1 2	11:54:35.706 org.example.TestReentrantLock [t1] - 尝试获得锁 11:54:35.706 org.example.TestReentrantLock [t1] - 获取不到锁

②设置超时时间等待的情况。

@Slf4j
public class TestReentrantLock {
    static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) throws InterruptedException {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获得锁");
            try {
                if (! lock.tryLock(1, TimeUnit.SECONDS)) {
                    log.debug("获取不到锁");
                    return;
                }
            } catch (InterruptedException e) {
                e.printStackTrace();
                log.debug("获取不到锁");
                return;
            }
            try {
                log.debug("获得到锁");
            } finally {
                lock.unlock();
            }
        }, "t1");

        lock.lock();
        log.debug("获得到锁");
        t1.start();
        Thread.sleep(2000);
        log.debug("释放了锁");
        lock.unlock();
    }
}

执行结果：

11:58:01.187 org.example.TestReentrantLock [main] - 获得到锁
11:58:01.195 org.example.TestReentrantLock [t1] - 尝试获得锁
11:58:02.209 org.example.TestReentrantLock [t1] - 获取不到锁
11:58:03.196 org.example.TestReentrantLock [main] - 释放了锁

1.4 条件变量

synchronized中也有条件变量，就是我们讲原理时那个waitSet休息室，当条件不满足时进入waitSet等待。
ReentrantLock的条件变量比synchronized强大之处在于，它是支持多个条件变量的，这就好比：
- synchronized是那些不满足条件的线程都在一间休息室等消息。
- 而 ReentrantLock支持多间休息室，有专门等烟的休息室、专门等早餐的休息室、唤醒时也是按休息室来唤醒。
使用要点：
- await前需要获得锁。
- await执行后，会释放锁，进入conditionObject等待。
- await的线程被唤醒（或打断、或超时）取重新竞争lock锁。
- 竞争lock锁成功后，从await后继续执行。

@Slf4j
public class TestReentrantLock {
    static final Object room = new Object();
    static boolean hasCigarette = false;
    static boolean hasTakeout = false;
    static ReentrantLock ROOM = new ReentrantLock();
    // 等待烟的休息室
    static Condition waitCigaretteSet = ROOM.newCondition();
    // 等外卖的休息室
    static Condition waitTakeoutSet = ROOM.newCondition();

    public static void main(String[] args) throws InterruptedException {
        new Thread(() -> {
            ROOM.lock();
            try {
                log.debug("有烟没？[{}]", hasCigarette);
                while (!hasCigarette) {
                    log.debug("没烟，先歇会！");
                    try {
                        waitCigaretteSet.await();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
                log.debug("可以开始干活了");
            } finally {
                ROOM.unlock();
            }
        }, "小南").start();

        new Thread(() -> {
            ROOM.lock();
            try {
                log.debug("外卖送到没？[{}]", hasTakeout);
                while (!hasTakeout) {
                    log.debug("没外卖，先歇会！");
                    try {
                        waitTakeoutSet.await();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
                log.debug("可以开始干活了");
            } finally {
                ROOM.unlock();
            }
        }, "小女").start();

        Thread.sleep(1000);
        new Thread(() -> {
            ROOM.lock();
            try {
                hasTakeout = true;
                waitTakeoutSet.signal();
            } finally {
                ROOM.unlock();
            }
        }, "送外卖的").start();

        Thread.sleep(1000);

        new Thread(() -> {
            ROOM.lock();
            try {
                hasCigarette = true;
                waitCigaretteSet.signal();
            } finally {
                ROOM.unlock();
            }
        }, "送烟的").start();
    }
}

执行结果：

14:12:06.972 org.example.TestReentrantLock [小南] - 有烟没？[false]
14:12:06.972 org.example.TestReentrantLock [小南] - 没烟，先歇会！
14:12:06.972 org.example.TestReentrantLock [小女] - 外卖送到没？[false]
14:12:06.972 org.example.TestReentrantLock [小女] - 没外卖，先歇会！
14:12:07.980 org.example.TestReentrantLock [小女] - 可以开始干活了
14:12:08.981 org.example.TestReentrantLock [小南] - 可以开始干活了

2、ReentrantLock原理

ReentrantLock是基于AQS(全称是AbstractQueuedSynchronizer，是阻塞式锁和相关的同步器工具的框架)实现的。
AQS特点：
- 用state属性来表示资源的状态（分独占模式和共享模式），子类需要定义如何维护这个状态，控制如何获取锁和释放锁。
- getState - 获取state状态。
- setState - 设置state状态。
- compareAndSetState - cas机制设置state状态。
- 独占模式是只有一个线程能够访问资源，而共享模式可以允许多个线程访问资源。
- 提供了基于FIFO的等待队列，类似于Monitor的EntryList。
- 条件变量来实现等待、唤醒机制，支持多个条件变量，类似于Monitor的WaitSet。
- 子类主要实现这样一些方法（默认抛出UnsupportedOperationException）
- tryAcquire
- tryRelease
- tryAcquireShared
- tryReleaseShared
- isHeldExclusively
- 获取锁的姿势：
1
2
3
4
// 如果获取锁失败
if (!tryAcquire(arg)) {
// 入队, 可以选择阻塞当前线程 park unpark
}
- 释放锁的姿势:
1
2
3
4
// 如果释放锁成功
if (tryRelease(arg)) {
// 让阻塞线程恢复运行
}

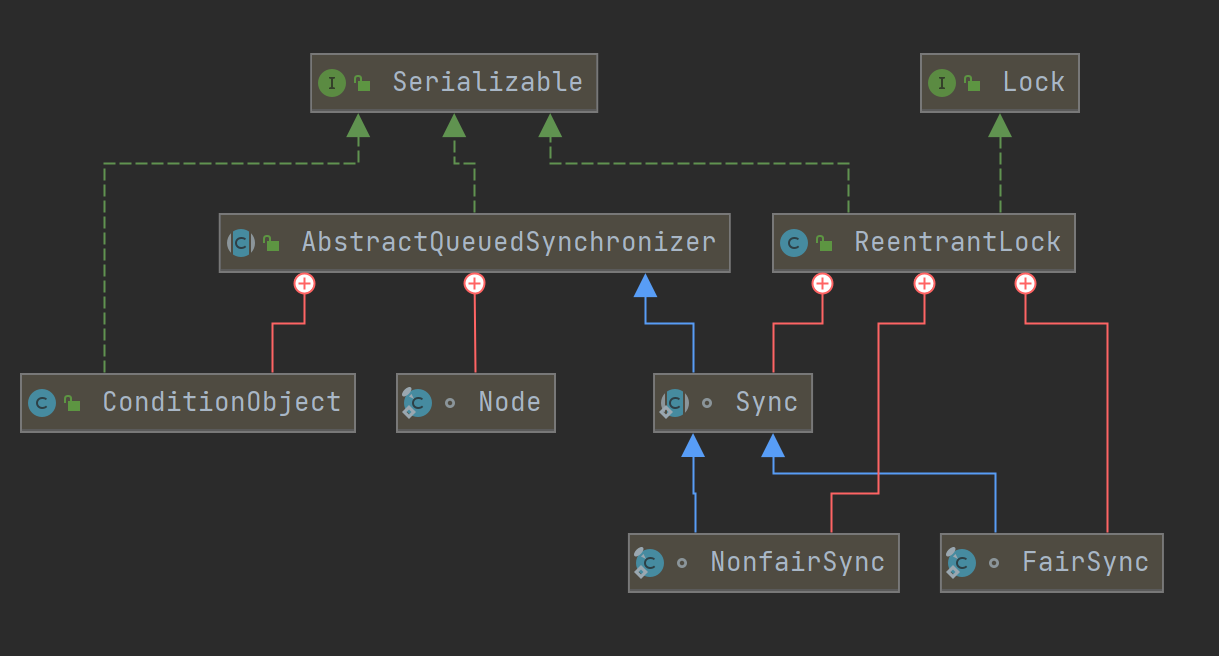

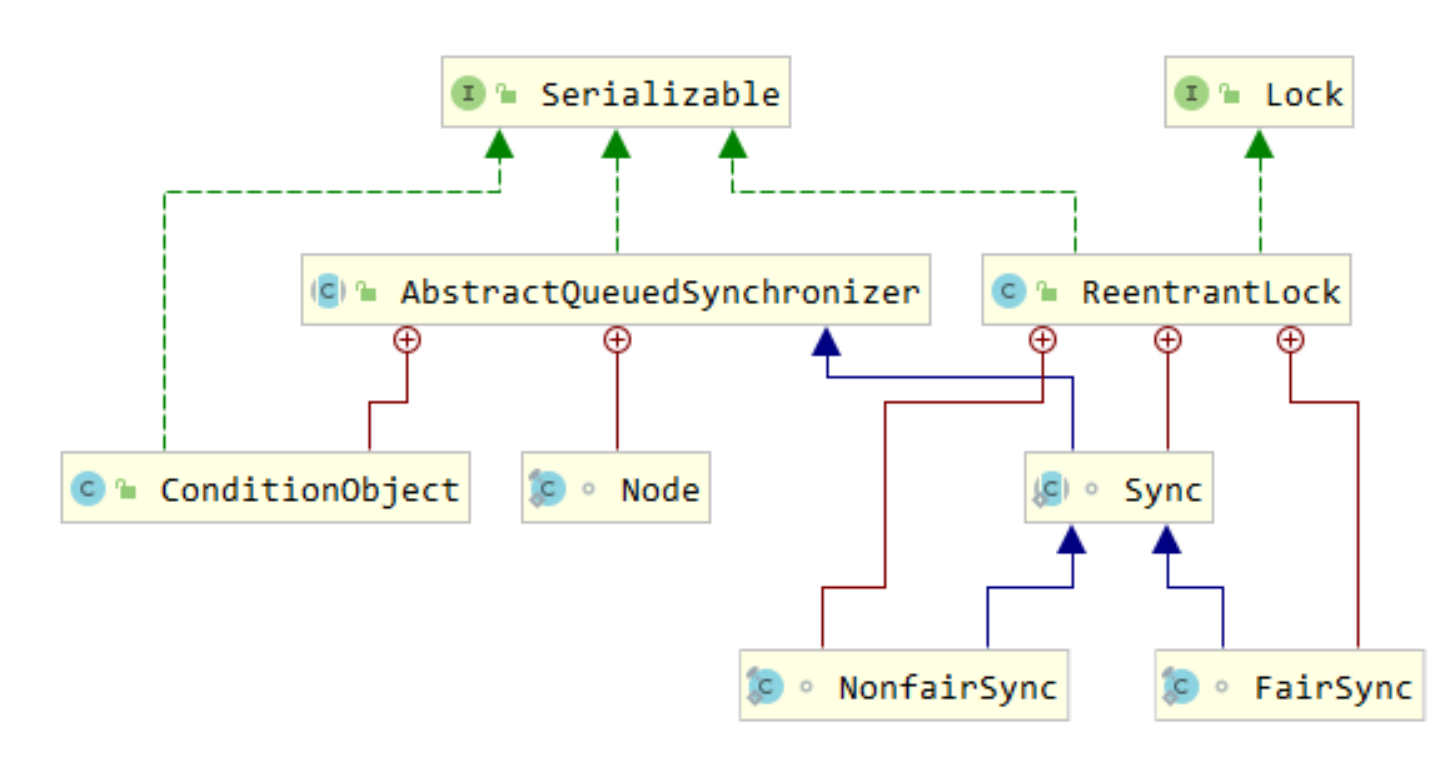

ReentrantLock内部结构：

2.1 非公平锁实现原理

①从构造器开始看，默认为非公平锁实现。

//同步器提供所有实施机制
private final Sync sync;

//创建ReentrantLock的实例，这等效于使用构造器ReentrantLock(false)。
public ReentrantLock() {
    sync = new NonfairSync();
}

其中的NonfairSync继承自AQS：

//同步对象的非公平锁
static final class NonfairSync extends Sync {
    private static final long serialVersionUID = 7316153563782823691L;

    //执行锁定，并在出现故障时备份到正常状态。
    final void lock() {
        //首先用 cas 尝试（仅尝试一次）将 state 从 0 改为 1, 如果成功表示获得了独占锁。
        if (compareAndSetState(0, 1))
            setExclusiveOwnerThread(Thread.currentThread());
        else
            //如果尝试失败
            acquire(1);
    }

    protected final boolean tryAcquire(int acquires) {
        return nonfairTryAcquire(acquires);
    }
}

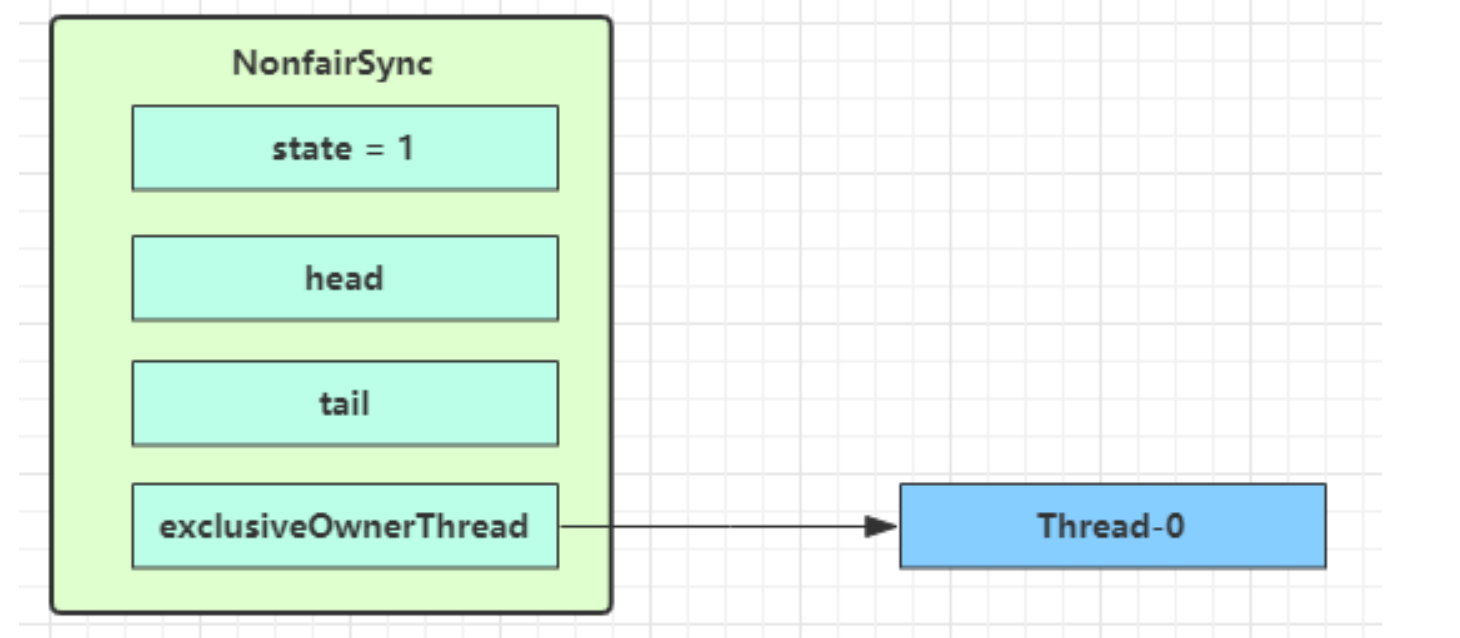

②当线程Thread-0执行ReentrantLock.lock()时，尝试将线程状态设置为1，如果设置成功就设置当前线程为同步器的Owner。

//如果没有其他线程持有该锁，则获取该锁并立即返回，将锁保持计数设置为1。
//如果当前线程已经持有该锁，则持有计数将增加1，该方法将立即返回。
//如果锁是由另一个线程持有的，则当前线程将出于线程调度目的而被禁用，并处于休眠状态，直到获取了锁为止，此时，锁持有计数被设置为1。
public void lock() {
    sync.lock();
}

③这时如果线程Thread-1来竞争资源。

//AQS抽象类
//在独占模式下获取，忽略中断。通过至少调用一次tryAcquire()并返回成功来实现。否则，线程将排队，并可能反复阻塞和解除阻塞，并调用tryAcquire()直到成功。
public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

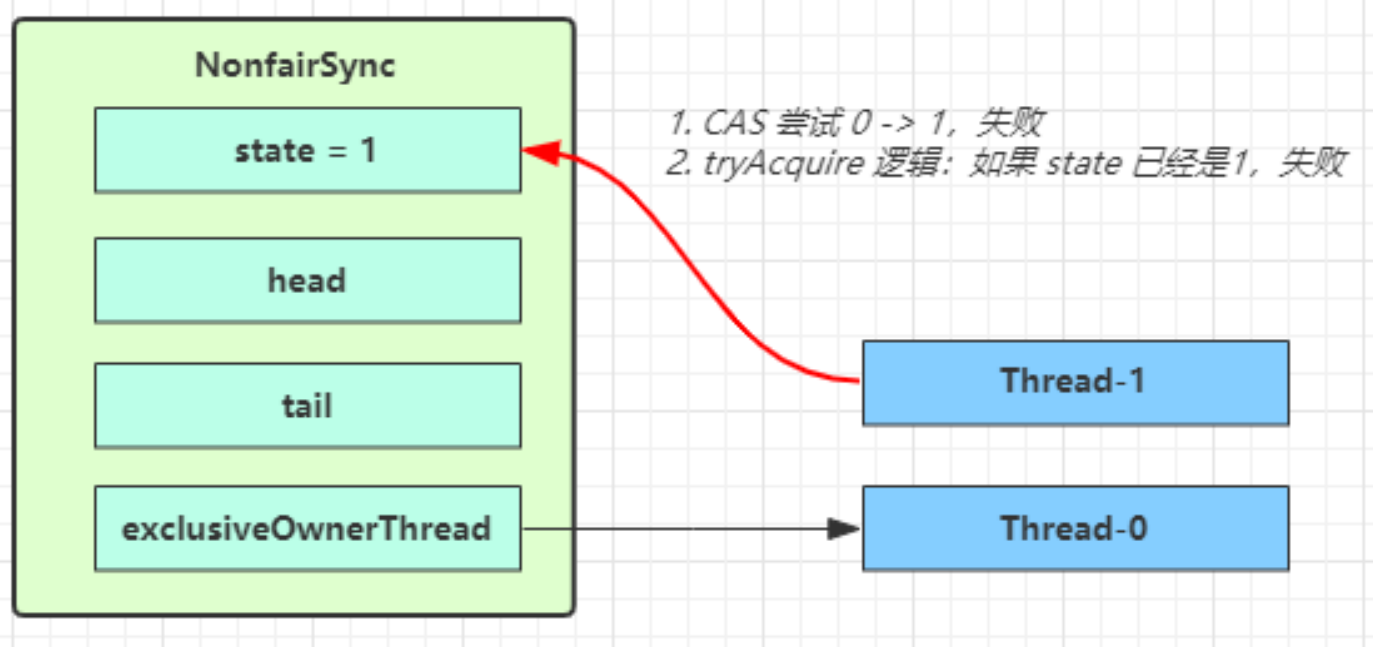

①CAS尝试将state由0改为1，结果失败。
②进入acquire()的tryAcquire()逻辑，这时state已经是1，结果仍然失败。

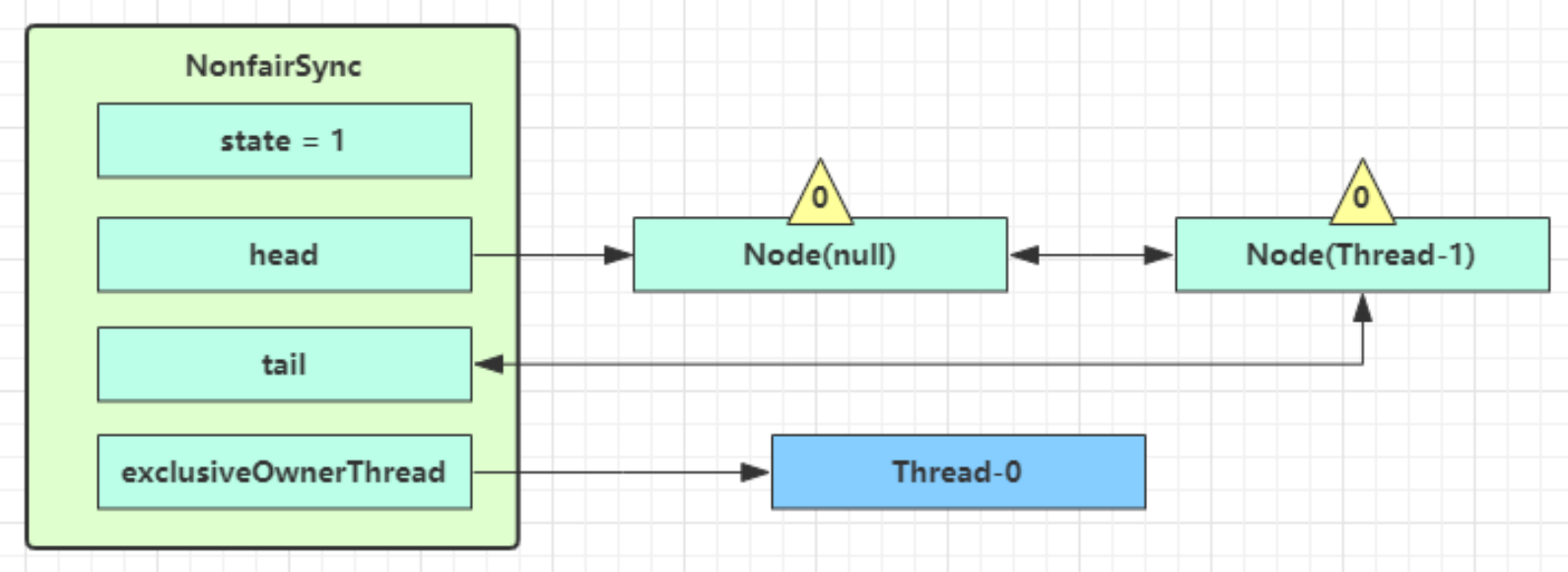

③接下来进入addWaiter逻辑，构造Node队列。
- 图中黄色三角表示该Node的waitStatus状态，其中0为默认正常状态。
- Node的创建是懒惰的。
- 其中第一个Node称为Dummy（哑元）或哨兵，用来占位，并不关联线程。

④接下来进入acquireQueued()逻辑。

//AQS抽象类
//以排他的不间断模式获取已在队列中的线程，用于条件等待方法以及获取。
final boolean acquireQueued(final Node node, int arg) {
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            //上一个节点是 head, 表示轮到自己（当前线程对应的 node）了, 尝试获取
            if (p == head && tryAcquire(arg)) {
                //获取成功, 设置自己（当前线程对应的 node）为 head
                setHead(node);
                p.next = null; // help GC
                failed = false;
                //返回中断标记 false
                return interrupted;
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

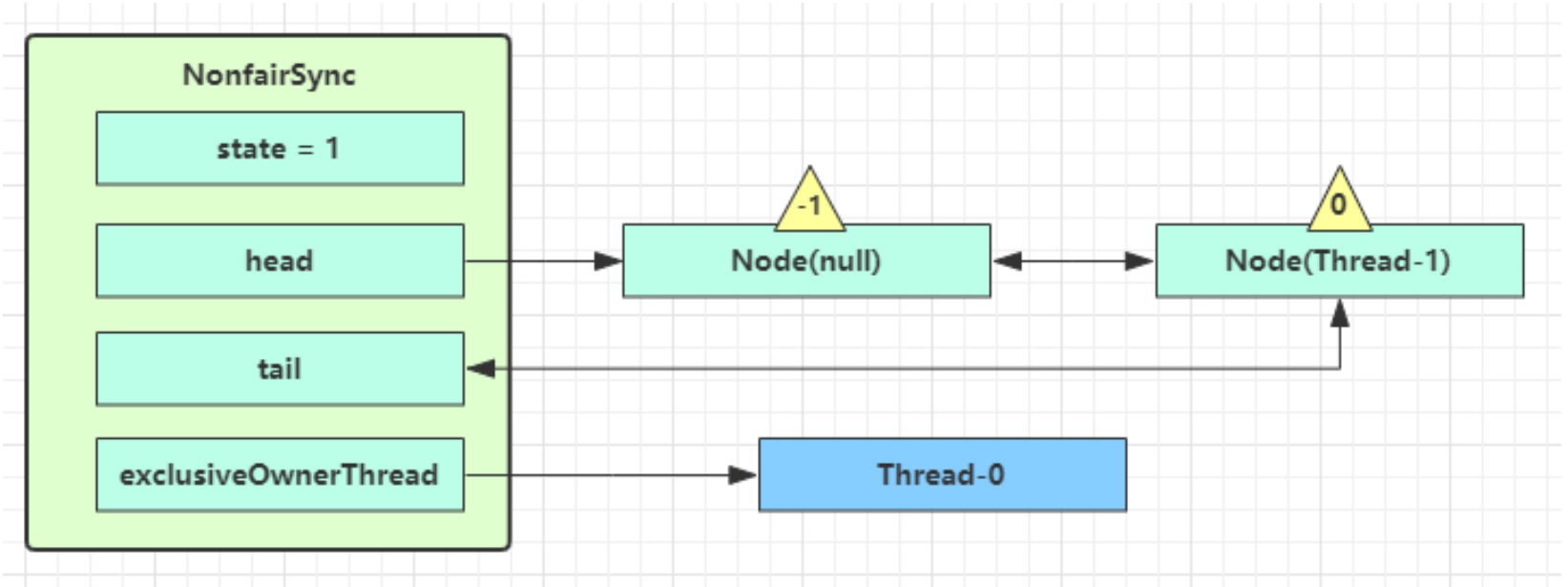

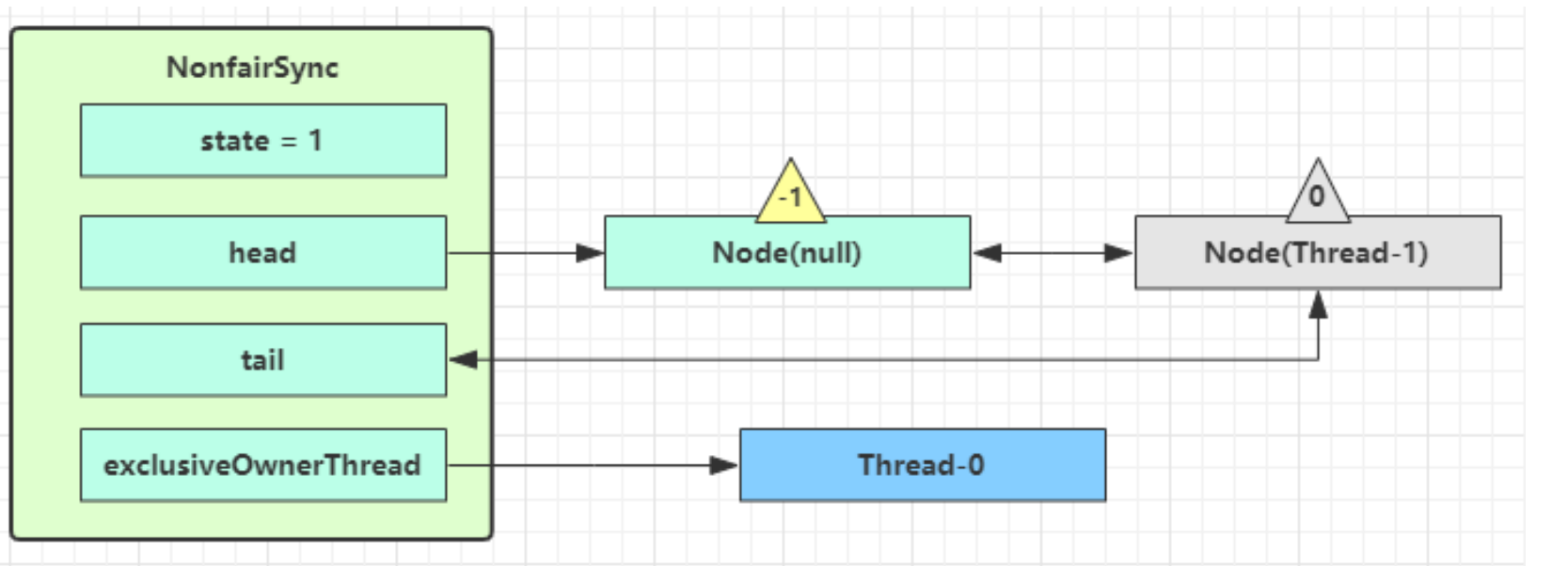

①acquireQueued会在一个死循环中不断尝试获得锁，失败后进入park阻塞。
②如果自己是紧邻着head（排第二位），那么再次tryAcquire尝试获取锁，当然这时state仍为1，失败。
③进入shouldParkAfterFailedAcquire逻辑，将前驱node，即head的waitStatus改为-1，这次返回false。表示waitStatus为-1的节点有资格唤醒它的后继节点。
④当再次进入shouldParkAfterFailedAcquire时，这时因为其前驱node的waitStatus已经是-1，这次返回true。

⑤接着进入parkAndCheckInterrupt，Thread-1 park（灰色表示）。

//AQS抽象类
private final boolean parkAndCheckInterrupt() {
    //阻塞当前线程
    LockSupport.park(this);
    return Thread.interrupted();
}

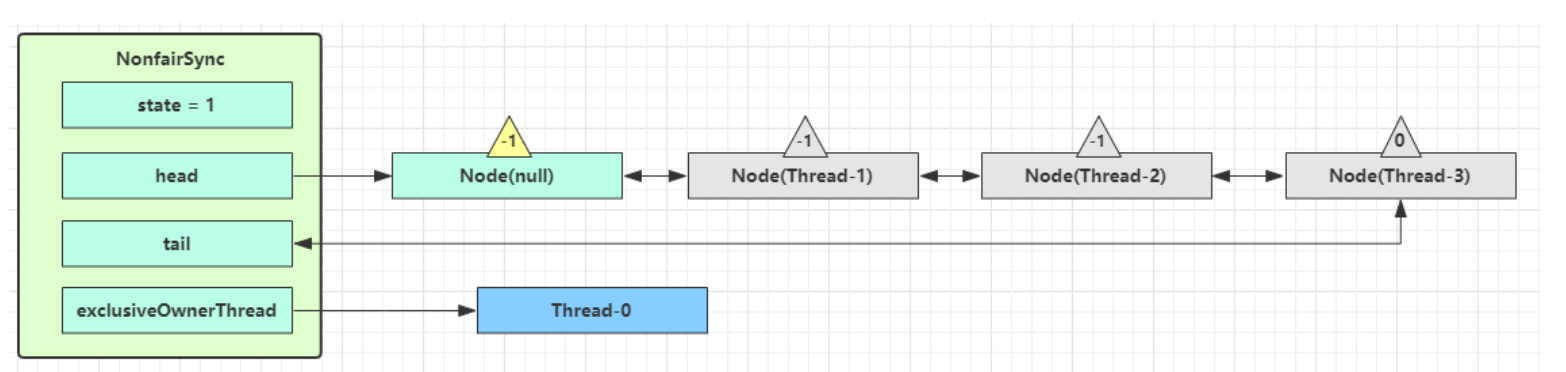

④再次有多个线程经历上述过程竞争失败，变成这个样子。

⑤这时如果Thread-0释放锁(调用ReentrantLock.unlock())，进入tryRelease流程，如果成功：

//如果当前线程是此锁的持有者，则保留计数将减少。 如果保持计数现在为零，则释放锁定。如果当前线程不是此锁的持有者，则抛出IllegalMonitorStateException。
public void unlock() {
    sync.release(1);
}

//AQS抽象类
//以独占模式发布。如果tryRelease返回true，则通过解锁一个或多个线程tryRelease实现。
public final boolean release(int arg) {
    //尝试释放锁
    if (tryRelease(arg)) {
        Node h = head;
        if (h != null && h.waitStatus != 0)
            unparkSuccessor(h);
        return true;
    }
    return false;
}

//AQS抽象类
protected final boolean tryRelease(int releases) {
    int c = getState() - releases;
    if (Thread.currentThread() != getExclusiveOwnerThread())
        throw new IllegalMonitorStateException();
    boolean free = false;
    //支持锁重入, 只有 state 减为 0, 才释放成功
    if (c == 0) {
        free = true;
        setExclusiveOwnerThread(null);
    }
    setState(c);
    return free;
}

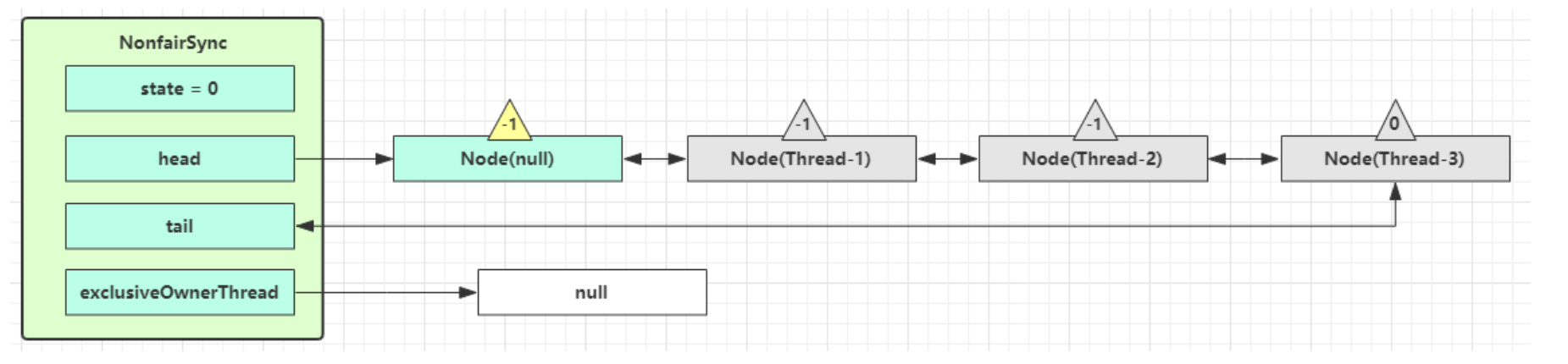

①设置exclusiveOwnerThread为null。
②设置state=0。(此时执行完tryRelease())

③这时回到release()，如果当前队列不为null，并且head的waitStatus=-1，进入unparkSuccessor流程。

//AQS抽象类
//唤醒节点的后继者（如果存在）。
private void unparkSuccessor(Node node) {
    //如果状态是否定的（即可能需要信号），请尝试清除以预期发出信号。如果失败或等待线程更改状态，则可以。
    int ws = node.waitStatus;
    if (ws < 0)
        compareAndSetWaitStatus(node, ws, 0);

    //释放线程保留在后续线程中，该线程通常只是下一个节点。但是，如果已取消或明显为空，请从尾部向后移动以找到实际的未取消后继。
    //找到需要 unpark 的节点, 但本节点从 AQS 队列中脱离, 是由唤醒节点完成的
    Node s = node.next;
    //不考虑已取消的节点, 从 AQS 队列从后至前找到队列最前面需要 unpark 的节点
    if (s == null || s.waitStatus > 0) {
        s = null;
        for (Node t = tail; t != null && t != node; t = t.prev)
            if (t.waitStatus <= 0)
                s = t;
    }
    if (s != null)
        LockSupport.unpark(s.thread);
}

①找到队列中离head最近的一个Node（没取消的），unpark恢复其运行，本例中即为Thread-1。

②这时回到Thread-1的acquireQueued流程。

//以排他的不间断模式获取已在队列中的线程，用于条件等待方法以及获取。
final boolean acquireQueued(final Node node, int arg) {
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            //上一个节点是 head, 表示轮到自己（当前线程对应的 node）了, 尝试获取
            if (p == head && tryAcquire(arg)) {
                //获取成功, 设置自己（当前线程对应的 node）为 head
                setHead(node);
                p.next = null; // help GC
                failed = false;
                //返回中断标记
                return interrupted;
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

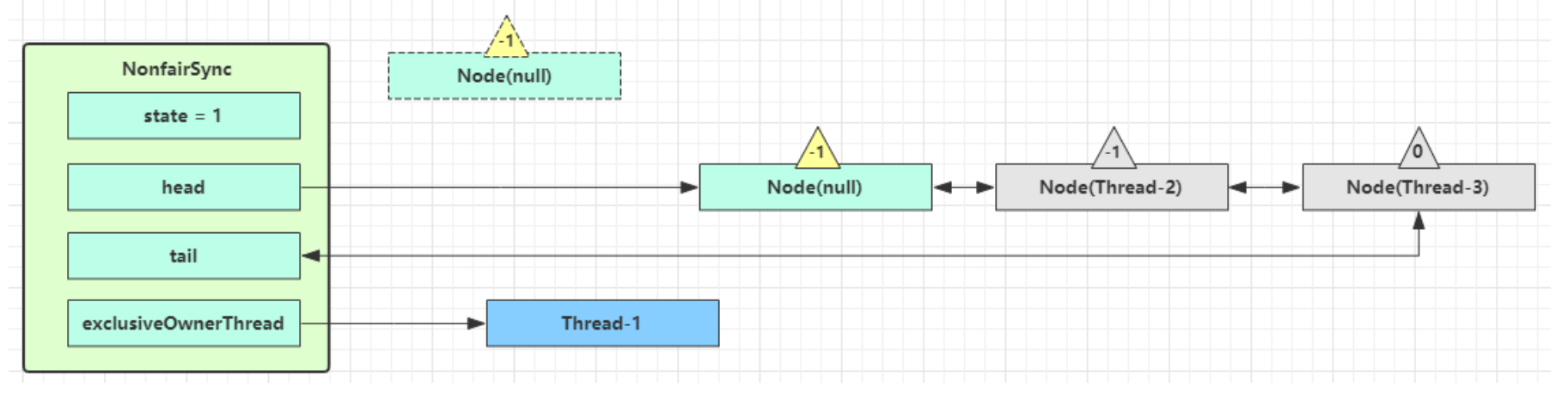

①如果加锁成功（没有竞争），会设置：
- exclusiveOwnerThread为Thread-1，state=1(在tryAcquire(arg)方法中执行)。
- head指向刚刚Thread-1所在的Node，该Node清空Thread。
- 原本的head因为从链表断开，而可被垃圾回收。

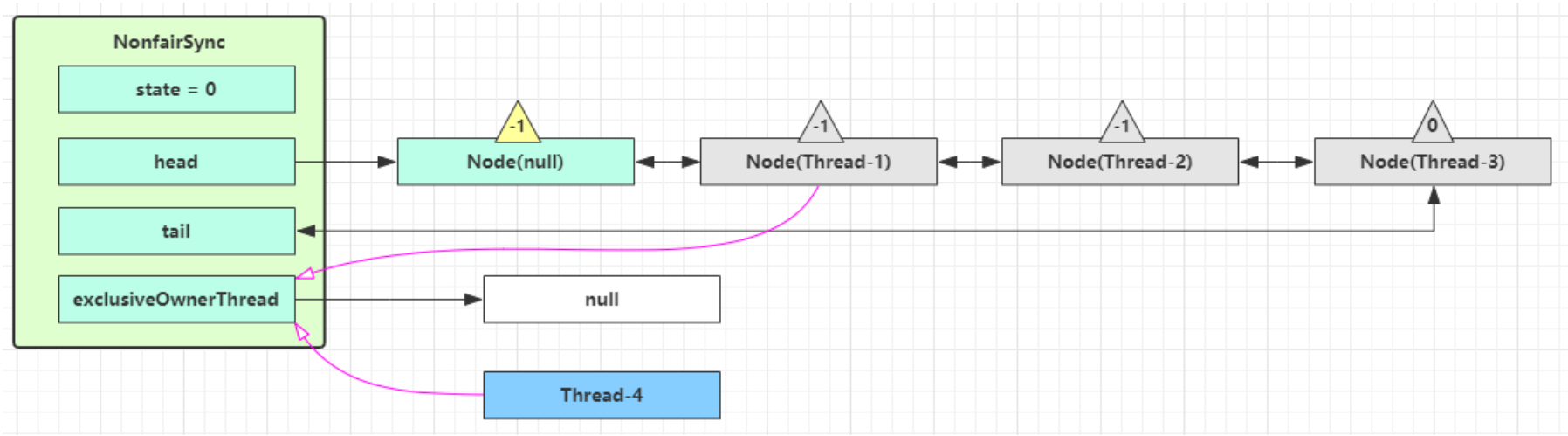

②如果这时候有其它线程来竞争（非公平的体现），例如这时有Thread-4来了，且被 Thread-4占了先。

+  Thread-4被设置为exclusiveOwnerThread，state=1。
+  Thread-1再次进入acquireQueued流程，获取锁失败，重新进入park阻塞。

2.2 可重入原理

在调用ReentrantLock.lock()时如果发现有竞争则会进入acquire()–>tryAcquire()–>nonfairTryAcquire()，相关可重入的代码在nonfairTryAcquire()里：

//Sync抽象类
final boolean nonfairTryAcquire(int acquires) {
    final Thread current = Thread.currentThread();
    int c = getState();
    //如果还没有获得锁
    if (c == 0) {
        //尝试用 cas 获得, 这里体现了非公平性: 不去检查 AQS 队列
        if (compareAndSetState(0, acquires)) {
            setExclusiveOwnerThread(current);
            return true;
        }
    }
    //如果已经获得了锁, 线程还是当前线程, 表示发生了锁重入
    else if (current == getExclusiveOwnerThread()) {
        //state++
        int nextc = c + acquires;
        if (nextc < 0) // overflow
            throw new Error("Maximum lock count exceeded");
        setState(nextc);
        return true;
    }
    //获取失败, 回到调用处
    return false;
}

在调用ReentrantLock.unlock()进行解锁时，会执行sync.release(1)–>tryRelease(arg)，相关可重入的代码在tryRelease()里：

//Sync抽象类
protected final boolean tryRelease(int releases) {
    //state--
    int c = getState() - releases;
    if (Thread.currentThread() != getExclusiveOwnerThread())
        throw new IllegalMonitorStateException();
    boolean free = false;
    //支持锁重入, 只有 state 减为 0, 才释放成功
    if (c == 0) {
        free = true;
        setExclusiveOwnerThread(null);
    }
    setState(c);
    return free;
}

2.3 可打断原理

不可打断模式

在此模式下，即使它被打断，仍会驻留在AQS队列中，一直要等到获得锁后方能得知自己被打断了。

在执行ReentrantLock.lock()时会执行到acquire()：

//AQS抽象类
public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        //如果打断状态为 true
        selfInterrupt();
}

//AQS抽象类
final boolean acquireQueued(final Node node, int arg) {
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            if (p == head && tryAcquire(arg)) {
                setHead(node);
                p.next = null; // help GC
                failed = false;
                //还是需要获得锁后, 才能返回打断状态
                return interrupted;
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                //如果是因为 interrupt 被唤醒, 返回打断状态为 true
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

//AQS抽象类
static void selfInterrupt() {
    //重新产生一次中断
    Thread.currentThread().interrupt();
}

//AQS抽象类
private final boolean parkAndCheckInterrupt() {
    //如果打断标记已经是 true, 则 park 会失效
    LockSupport.park(this);
    //interrupted 会清除打断标记
    return Thread.interrupted();
}

可打断模式

当调用ReentrantLock.lockInterruptibly()时会执行acquireInterruptibly–>doAcquireInterruptibly()：

1
2
3

public void lockInterruptibly() throws InterruptedException {
    sync.acquireInterruptibly(1);
}

//AQS抽象类
public final void acquireInterruptibly(int arg)
    throws InterruptedException {
    if (Thread.interrupted())
        throw new InterruptedException();
    //如果没有获得到锁
    if (!tryAcquire(arg))
        doAcquireInterruptibly(arg);
}

//AQS抽象类
private void doAcquireInterruptibly(int arg)
    throws InterruptedException {
    final Node node = addWaiter(Node.EXCLUSIVE);
    boolean failed = true;
    try {
        for (;;) {
            final Node p = node.predecessor();
            if (p == head && tryAcquire(arg)) {
                setHead(node);
                p.next = null; // help GC
                failed = false;
                return;
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                //在park过程中如果被interrupt会抛出异常, 而不会再次进入 for (;;)
                throw new InterruptedException();
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

2.4 公平锁实现原理

公平锁与非公平锁主要区别在于tryAcquire方法的实现：

非公平锁的tryAcquire()：

//NonfairSync类
protected final boolean tryAcquire(int acquires) {
    return nonfairTryAcquire(acquires);
}

//Sync抽象类
final boolean nonfairTryAcquire(int acquires) {
    final Thread current = Thread.currentThread();
    int c = getState();
    if (c == 0) {
        //尝试用 cas 获得, 这里体现了非公平性: 不去检查 AQS 队列
        if (compareAndSetState(0, acquires)) {
            setExclusiveOwnerThread(current);
            return true;
        }
    }
    else if (current == getExclusiveOwnerThread()) {
        int nextc = c + acquires;
        if (nextc < 0) // overflow
            throw new Error("Maximum lock count exceeded");
        setState(nextc);
        return true;
    }
    return false;
}

公平锁的tryAcquire()：

//FairSync类
protected final boolean tryAcquire(int acquires) {
    final Thread current = Thread.currentThread();
    int c = getState();
    if (c == 0) {
        //先检查 AQS 队列中是否有前驱节点, 没有才去竞争
        if (!hasQueuedPredecessors() &&
            compareAndSetState(0, acquires)) {
            setExclusiveOwnerThread(current);
            return true;
        }
    }
    else if (current == getExclusiveOwnerThread()) {
        int nextc = c + acquires;
        if (nextc < 0)
            throw new Error("Maximum lock count exceeded");
        setState(nextc);
        return true;
    }
    return false;
}

//AQS抽象类
public final boolean hasQueuedPredecessors() {
    Node t = tail; // Read fields in reverse initialization order
    Node h = head;
    Node s;
    //h != t 时表示队列中有 Node
    return h != t &&
        //并且队列中没有第二个node
        ((s = h.next) == null ||
         //或者队列中第二个node不是当前线程
         s.thread != Thread.currentThread());
}

2.5 条件变量实现原理

每个条件变量其实就对应着一个等待队列，其实现类是ConditionObject。

await流程

开始Thread-0持有锁，调用await。

//1.如果当前线程被中断，则抛出InterruptedException。
//2.保存getState返回的锁定状态。
//3.使用保存的状态作为参数调用release ，如果失败则抛出IllegalMonitorStateException。
//4.阻塞直到发信号或被打断。
//5.通过调用以保存状态作为参数的acquire专用版本来重新acquire。
//6.如果在步骤4中被阻止而被中断，则抛出InterruptedException。
public final void await() throws InterruptedException {
    if (Thread.interrupted())
        throw new InterruptedException();
    //添加一个 Node 至等待队列
    AbstractQueuedSynchronizer.Node node = addConditionWaiter();
    //释放节点持有的锁
    int savedState = fullyRelease(node);
    int interruptMode = 0;
    //如果该节点还没有转移至 AQS 队列, 阻塞
    while (!isOnSyncQueue(node)) {
        //当前线程阻塞
        LockSupport.park(this);
        //如果被打断, 退出等待队列
        if ((interruptMode = checkInterruptWhileWaiting(node)) != 0)
            break;
    }
    //退出等待队列后, 还需要获得 AQS 队列的锁
    if (acquireQueued(node, savedState) && interruptMode != THROW_IE)
        interruptMode = REINTERRUPT;
    //所有已取消的 Node 从队列链表删除
    if (node.nextWaiter != null) // clean up if cancelled
        unlinkCancelledWaiters();
    if (interruptMode != 0)
        reportInterruptAfterWait(interruptMode);
}

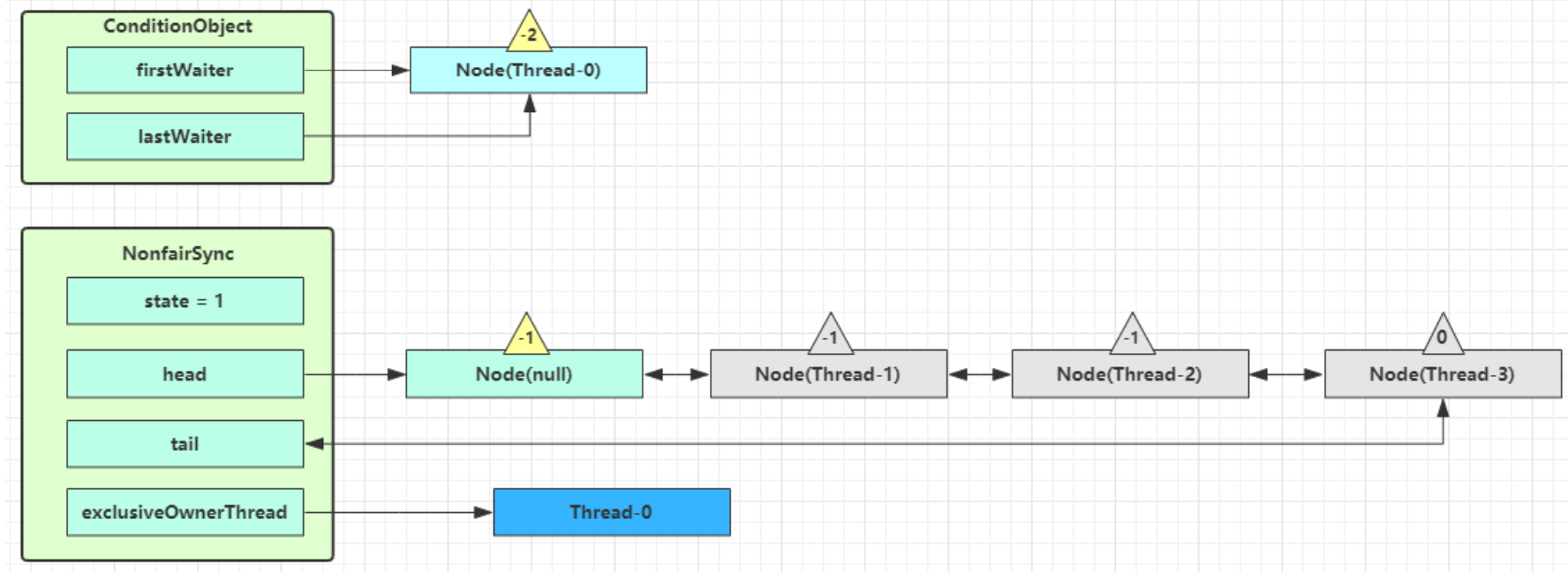

①进入ConditionObject的addConditionWaiter流程，会创建新的Node状态为-2（Node.CONDITION），关联Thread-0，加入等待队列尾部。

private AbstractQueuedSynchronizer.Node addConditionWaiter() {
    AbstractQueuedSynchronizer.Node t = lastWaiter;
    // If lastWaiter is cancelled, clean out.
    if (t != null && t.waitStatus != AbstractQueuedSynchronizer.Node.CONDITION) {
        unlinkCancelledWaiters();
        t = lastWaiter;
    }
    //创建一个关联当前线程的新 Node, 添加至队列尾部
    AbstractQueuedSynchronizer.Node node = new AbstractQueuedSynchronizer.Node(Thread.currentThread(), AbstractQueuedSynchronizer.Node.CONDITION);
    if (t == null)
        firstWaiter = node;
    else
        t.nextWaiter = node;
    lastWaiter = node;
    return node;
}

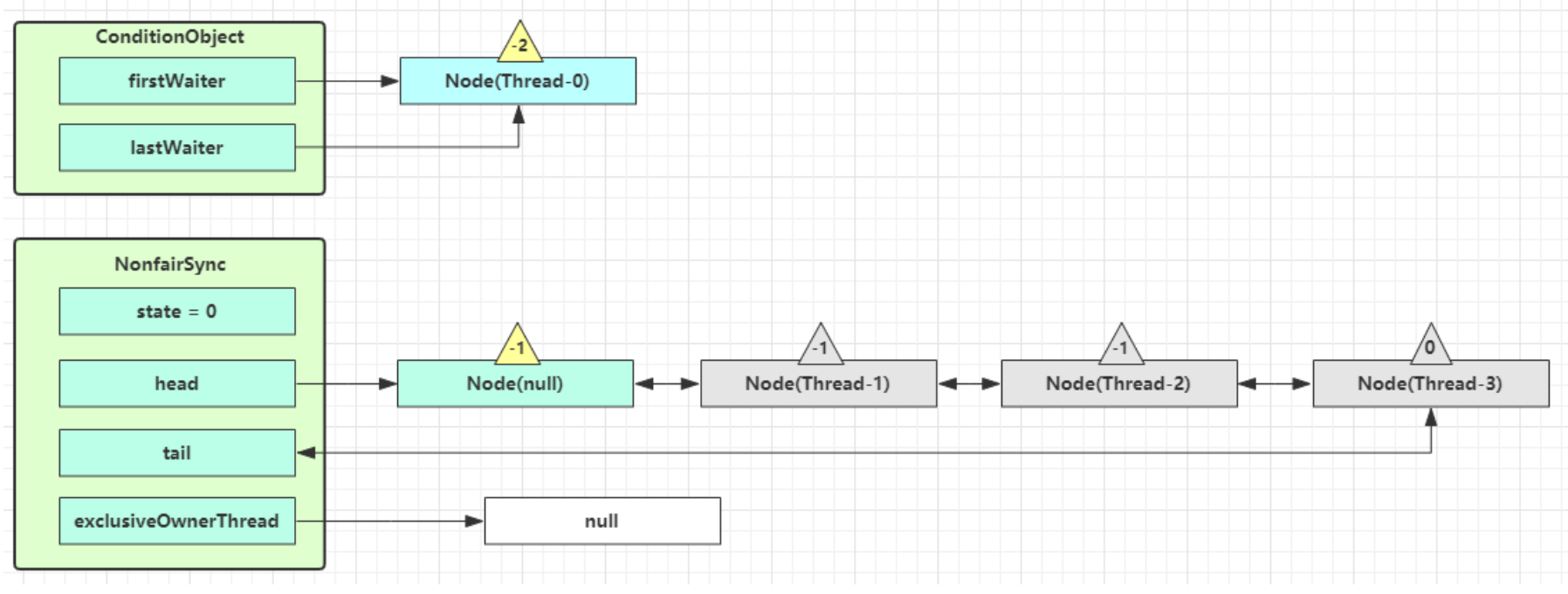

②接下来进入AQS的fullyRelease流程，释放同步器上的锁。

//因为某线程可能重入，需要将 state 全部释放
final int fullyRelease(Node node) {
    boolean failed = true;
    try {
        int savedState = getState();
        if (release(savedState)) {
            failed = false;
            return savedState;
        } else {
            throw new IllegalMonitorStateException();
        }
    } finally {
        if (failed)
            node.waitStatus = Node.CANCELLED;
    }
}

public final boolean release(int arg) {
    if (tryRelease(arg)) {
        Node h = head;
        if (h != null && h.waitStatus != 0)
            //唤醒后继节点
            unparkSuccessor(h);
        return true;
    }
    return false;
}

protected final boolean tryRelease(int releases) {
    int c = getState() - releases;
    if (Thread.currentThread() != getExclusiveOwnerThread())
        throw new IllegalMonitorStateException();
    boolean free = false;
    if (c == 0) {
        free = true;
        setExclusiveOwnerThread(null);
    }
    setState(c);
    return free;
}

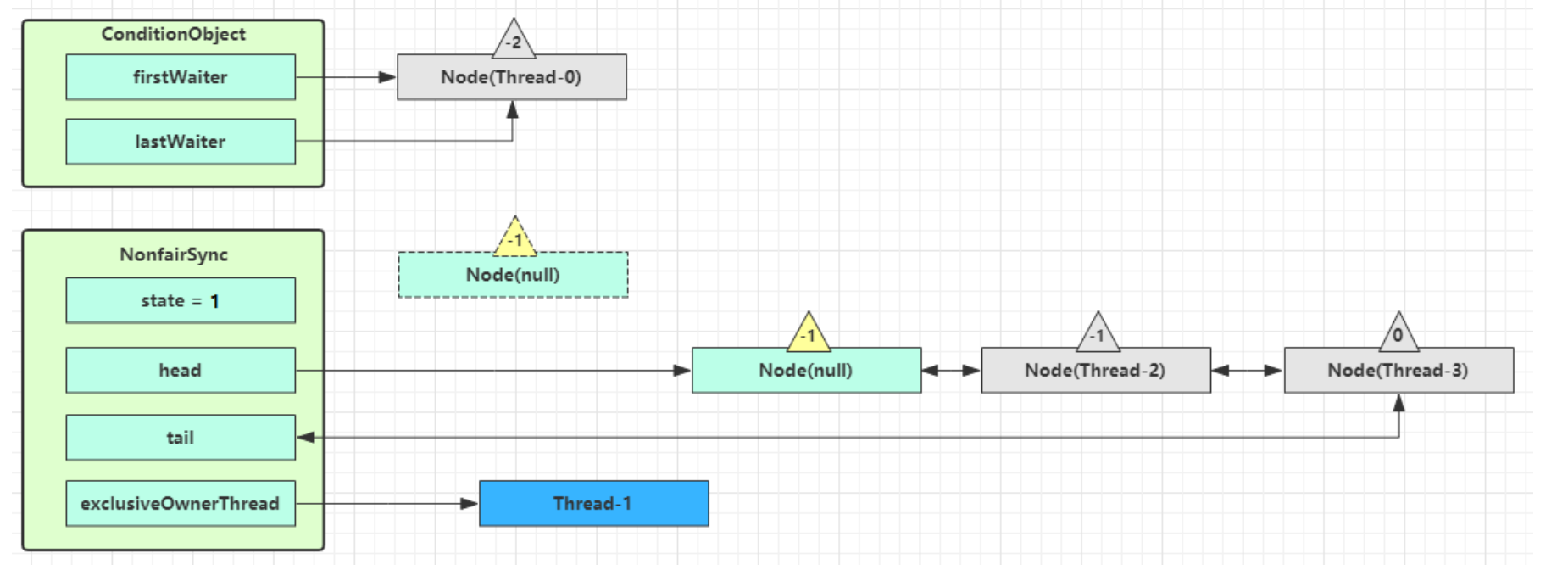

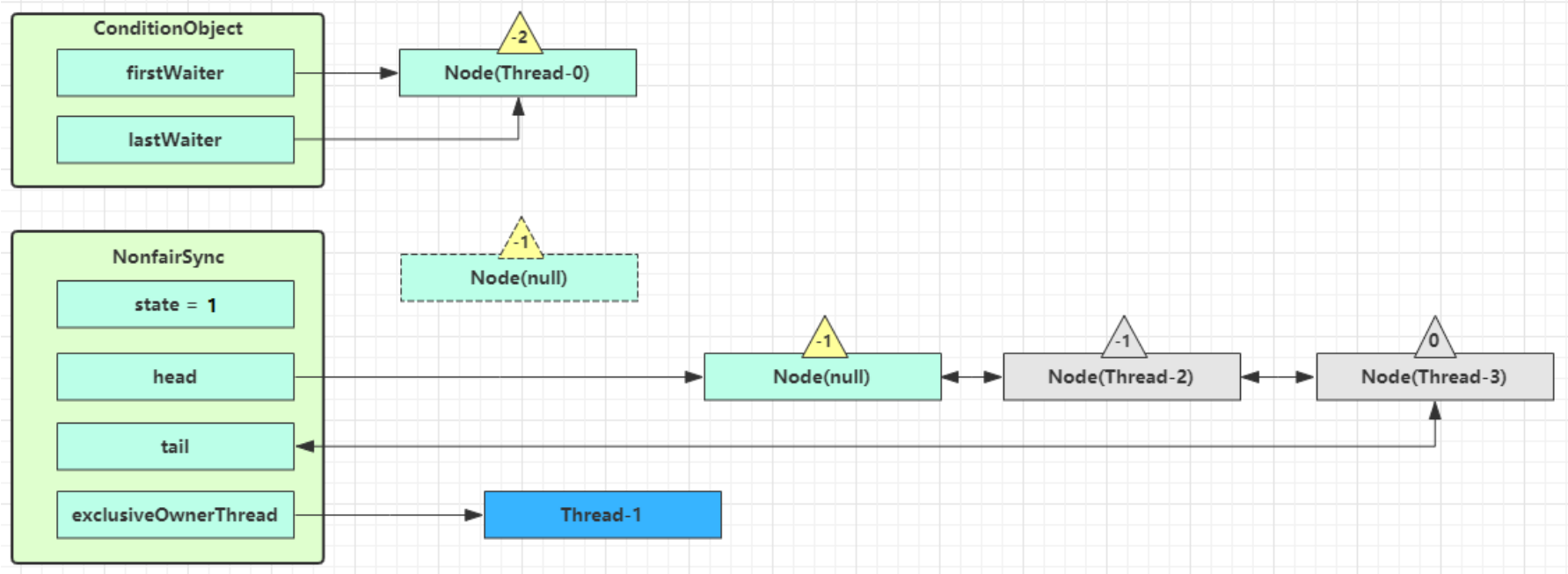

③unpark AQS队列中的下一个节点竞争锁，假设没有其他竞争线程，那么Thread-1竞争成功。
④阻塞Thread-0。

signal流程

假设Thread-1要来唤醒Thread-0，会调用ConditionObject.signal()：

//必须持有锁才能唤醒, 因此 doSignal 内无需考虑加锁。
public final void signal() {
    //判断调用该方法的线程是不是锁的持有者，如果不是则抛异常。
    if (!isHeldExclusively())
        throw new IllegalMonitorStateException();
    AbstractQueuedSynchronizer.Node first = firstWaiter;
    if (first != null)
        doSignal(first);
}

接着进入ConditionObject的doSignal流程，取得等待队列中第一个 Node，即Thread-0所在Node。

private void doSignal(AbstractQueuedSynchronizer.Node first) {
    do {
        if ( (firstWaiter = first.nextWaiter) == null)
            lastWaiter = null;
        first.nextWaiter = null;
    } while (!transferForSignal(first) &&
             (first = firstWaiter) != null);
}

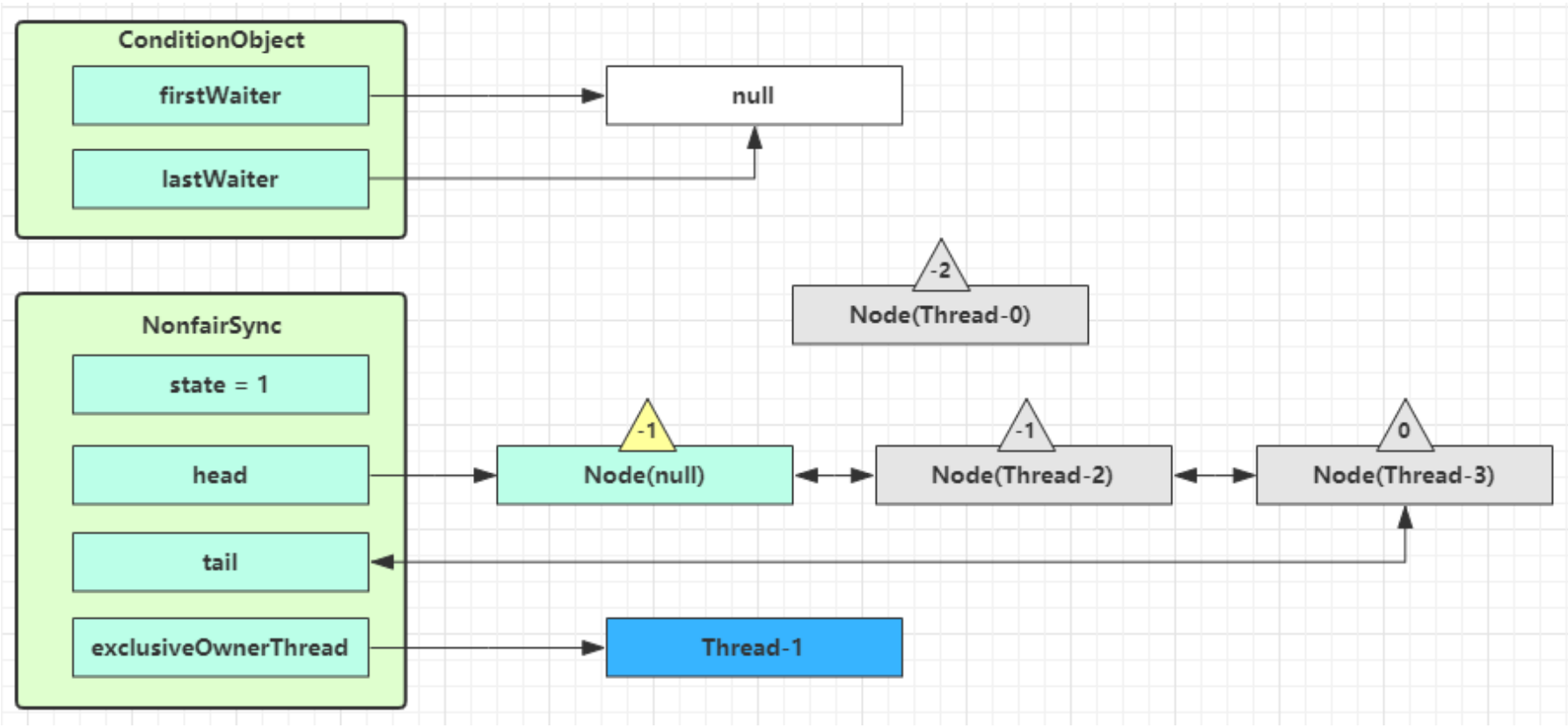

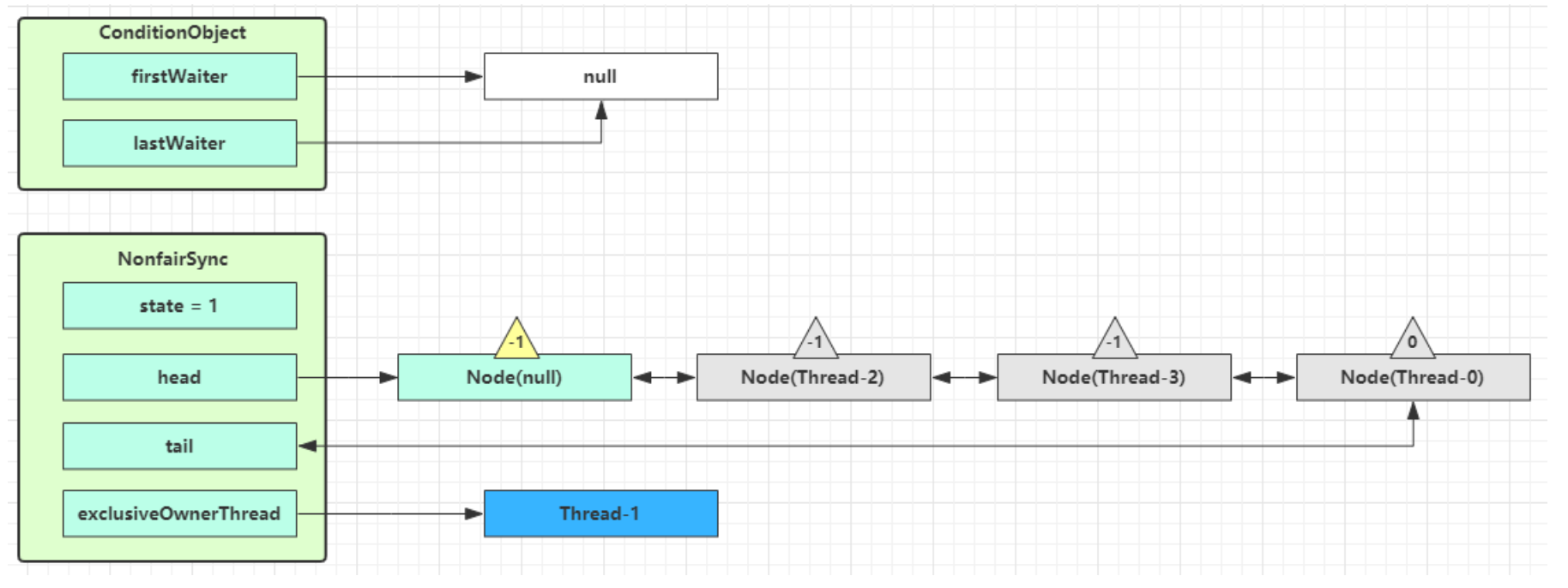

接着执行transferForSignal流程，将该Node加入AQS队列尾部，将Thread-0的waitStatus改为0，Thread-3的waitStatus改为-1。

final boolean transferForSignal(Node node) {
    //如果无法更改waitStatus，则该节点已被取消。
    if (!compareAndSetWaitStatus(node, Node.CONDITION, 0))
        return false;

    //拼接到队列上并尝试设置前任的waitStatus来指示线程（可能）正在等待。如果取消设置或尝试设置waitStatus失败，请唤醒以重新同步（在这种情况下，waitStatus可能会短暂而无害地出现错误）。
    //将该Node加入AQS队列尾部，返回该结点的前驱节点
    Node p = enq(node);
    int ws = p.waitStatus;
    if (ws > 0 || !compareAndSetWaitStatus(p, ws, Node.SIGNAL))
        LockSupport.unpark(node.thread);
    return true;
}

3、读写锁

3.1 使用ReentrantReadWriteLock

当读操作远远高于写操作时，这时候使用读写锁让”读-读”可以并发，提高性能。
提供一个数据容器类内部分别使用读锁保护数据的read()方法，写锁保护数据的write()方法。

@Slf4j
class DataContainer {
    private Object data;
    private ReentrantReadWriteLock rw = new ReentrantReadWriteLock();
    private ReentrantReadWriteLock.ReadLock r = rw.readLock();
    private ReentrantReadWriteLock.WriteLock w = rw.writeLock();
    public Object read() {
        log.debug("获取读锁...");
        r.lock();
        try {
            log.debug("读取");
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return data;
        } finally {
            log.debug("释放读锁...");
            r.unlock();
        }
    }
    public void write() {
        log.debug("获取写锁...");
        w.lock();
        try {
            log.debug("写入");
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        } finally {
            log.debug("释放写锁...");
            w.unlock();
        }
    }
}

+ **测试读锁-读锁可以并发。**

  1
2
3
4
5
6
7
8
9
10
11
12
@Slf4j
public class TestReadWriteLock {
    public static void main(String[] args) {
        DataContainer dataContainer = new DataContainer();
        new Thread(() -> {
            dataContainer.read();
        }, "t1").start();
        new Thread(() -> {
            dataContainer.read();
        }, "t2").start();
    }
}


  执行结果如下，从这里可以看到Thread-0锁定期间，Thread-1的读操作不受影响:

  1
2
3
4
5
6
7
8
20:49:41.307 org.example.DataContainer [t1] - 获取读锁...
20:49:41.307 org.example.DataContainer [t2] - 获取读锁...
20:49:41.307 org.example.DataContainer [t2] - 读取
20:49:41.307 org.example.DataContainer [t1] - 读取
20:49:42.311 org.example.DataContainer [t1] - 释放读锁...
20:49:42.311 org.example.DataContainer [t2] - 释放读锁...

Process finished with exit code 0


+ **测试读锁-写锁相互阻塞。**

  1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@Slf4j
public class TestReadWriteLock {
    public static void main(String[] args) {
        DataContainer dataContainer = new DataContainer();
        new Thread(() -> {
            dataContainer.read();
        }, "t1").start();
        try {
            Thread.sleep(100);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        new Thread(() -> {
            dataContainer.write();
        }, "t2").start();
    }
}


  执行结果：

  1
2
3
4
5
6
7
8
20:51:45.399 org.example.DataContainer [t1] - 获取读锁...
20:51:45.407 org.example.DataContainer [t1] - 读取
20:51:45.504 org.example.DataContainer [t2] - 获取写锁...
20:51:46.408 org.example.DataContainer [t1] - 释放读锁...
20:51:46.408 org.example.DataContainer [t2] - 写入
20:51:47.421 org.example.DataContainer [t2] - 释放写锁...

Process finished with exit code 0


+ **写锁-写锁也是相互阻塞的。**

注意事项

读锁不支持条件变量。

重入时升级不支持：即持有读锁的情况下去获取写锁，会导致获取写锁永久等待。

r.lock();
try {
       // ...
       w.lock();
       try {
           // ...
       } finally{
           w.unlock();
       }
   } finally{
       r.unlock();
   }

重入时降级支持：即持有写锁的情况下去获取读锁。

class CachedData {
    Object data;
    // 是否有效，如果失效，需要重新计算 data
    volatile boolean cacheValid;
    final ReentrantReadWriteLock rwl = new ReentrantReadWriteLock();
    void processCachedData() {
        rwl.readLock().lock();
        if (!cacheValid) {
            // 获取写锁前必须释放读锁
            rwl.readLock().unlock();
            rwl.writeLock().lock();
            try {
                // 判断是否有其它线程已经获取了写锁、更新了缓存, 避免重复更新
                if (!cacheValid) {
                    data = ...
                    cacheValid = true;
                }
                // 降级为读锁, 释放写锁, 这样能够让其它线程读取缓存
                rwl.readLock().lock();
            } finally {
                rwl.writeLock().unlock();
            }
        }
        // 自己用完数据, 释放读锁
        try {
            use(data);
        } finally {
            rwl.readLock().unlock();
        }
    }
}

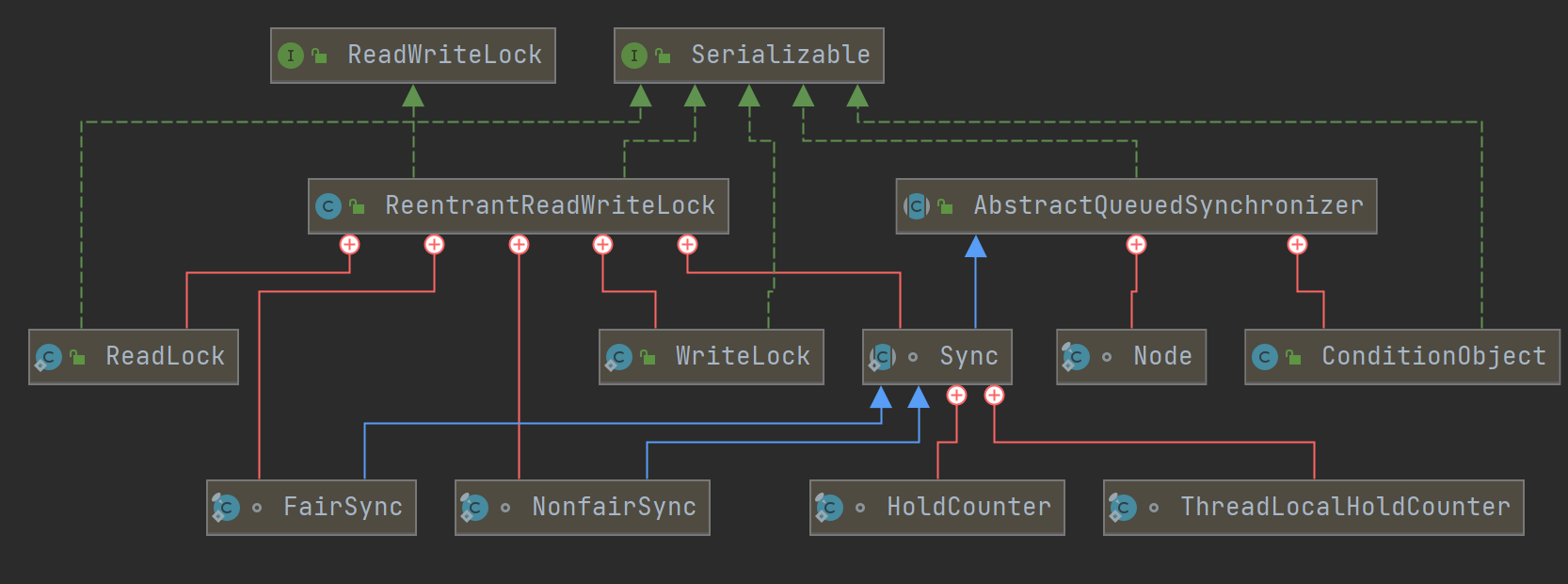

3.2 ReentrantReadWriteLock原理

读写锁用的是同一个Sync同步器，因此等待队列、state等也是同一个。

以t1 w.lock –> t2 r.lock–> t3 r.lock –> t4 w.lock –> t1 w.unlock –> t2 r.unlock –> t3 r.unlock为例。

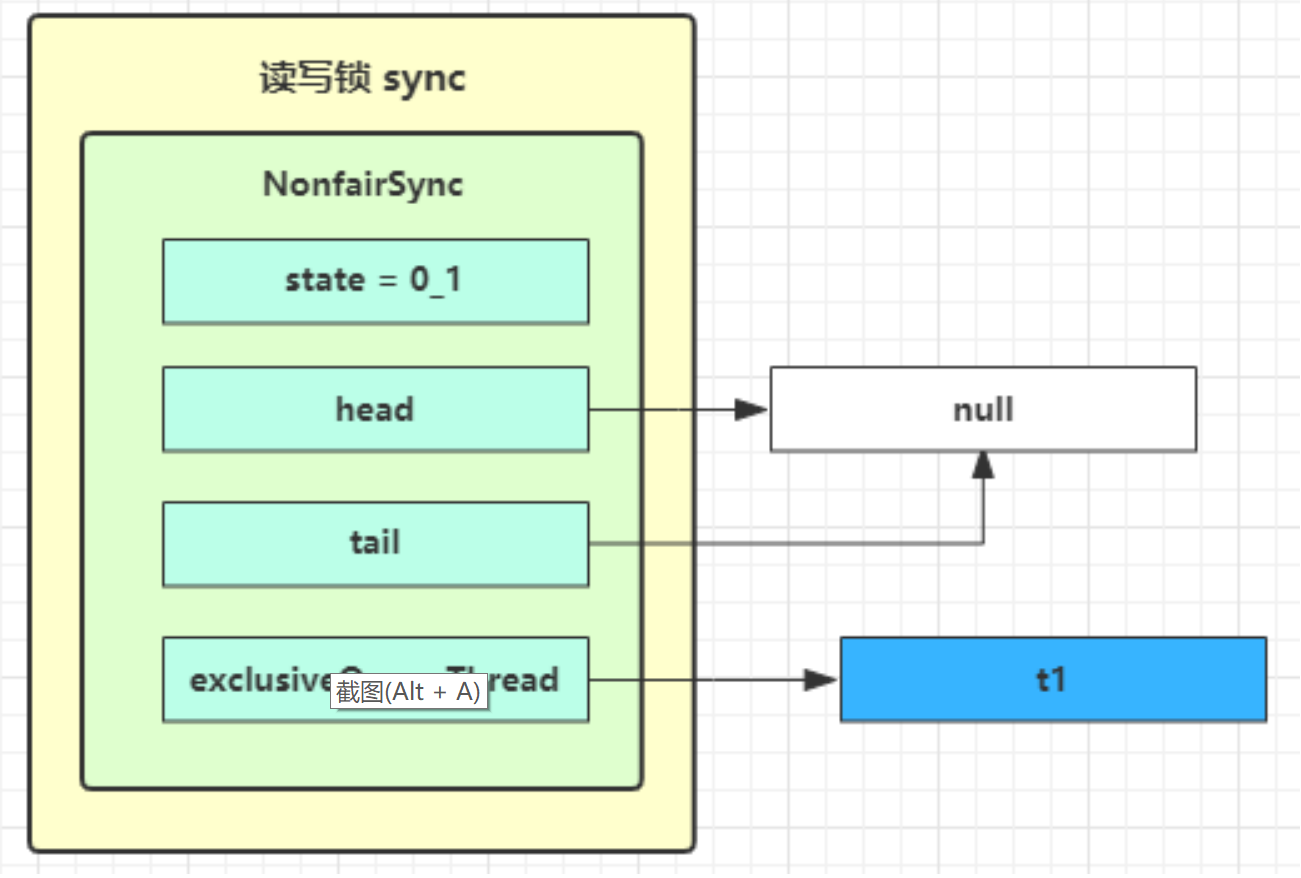

①t1调用w.lock()成功上锁，流程与ReentrantLock加锁相比没有特殊之处，不同是写锁状态占了state的低16位，而读锁使用的是state的高16位。

//WriteLock类
public void lock() {
    sync.acquire(1);
}

//AQS抽象类
public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

//Sync抽象类
protected final boolean tryAcquire(int acquires) {
    //获得低 16 位, 代表写锁的 state 计数
    Thread current = Thread.currentThread();
    int c = getState();
    int w = exclusiveCount(c);
    if (c != 0) {
        // (Note: if c != 0 and w == 0 then shared count != 0)
        //c != 0 and w == 0 表示有读锁, 或者如果 exclusiveOwnerThread 不是自己
        if (w == 0 || current != getExclusiveOwnerThread())
            //获得锁失败
            return false;
        //写锁计数超过低 16 位, 报异常
        if (w + exclusiveCount(acquires) > MAX_COUNT)
            throw new Error("Maximum lock count exceeded");
        // Reentrant acquire
        //写锁重入, 获得锁成功
        setState(c + acquires);
        return true;
    }
    //判断写锁是否该阻塞, 或者尝试更改计数失败
    if (writerShouldBlock() ||
        !compareAndSetState(c, c + acquires))
        //获得锁失败
        return false;
    //获得锁成功
    setExclusiveOwnerThread(current);
    return true;
}

//NonfairSync类
//非公平锁 writerShouldBlock 总是返回 false, 无需阻塞
final boolean writerShouldBlock() {
    return false; // writers can always barge
}

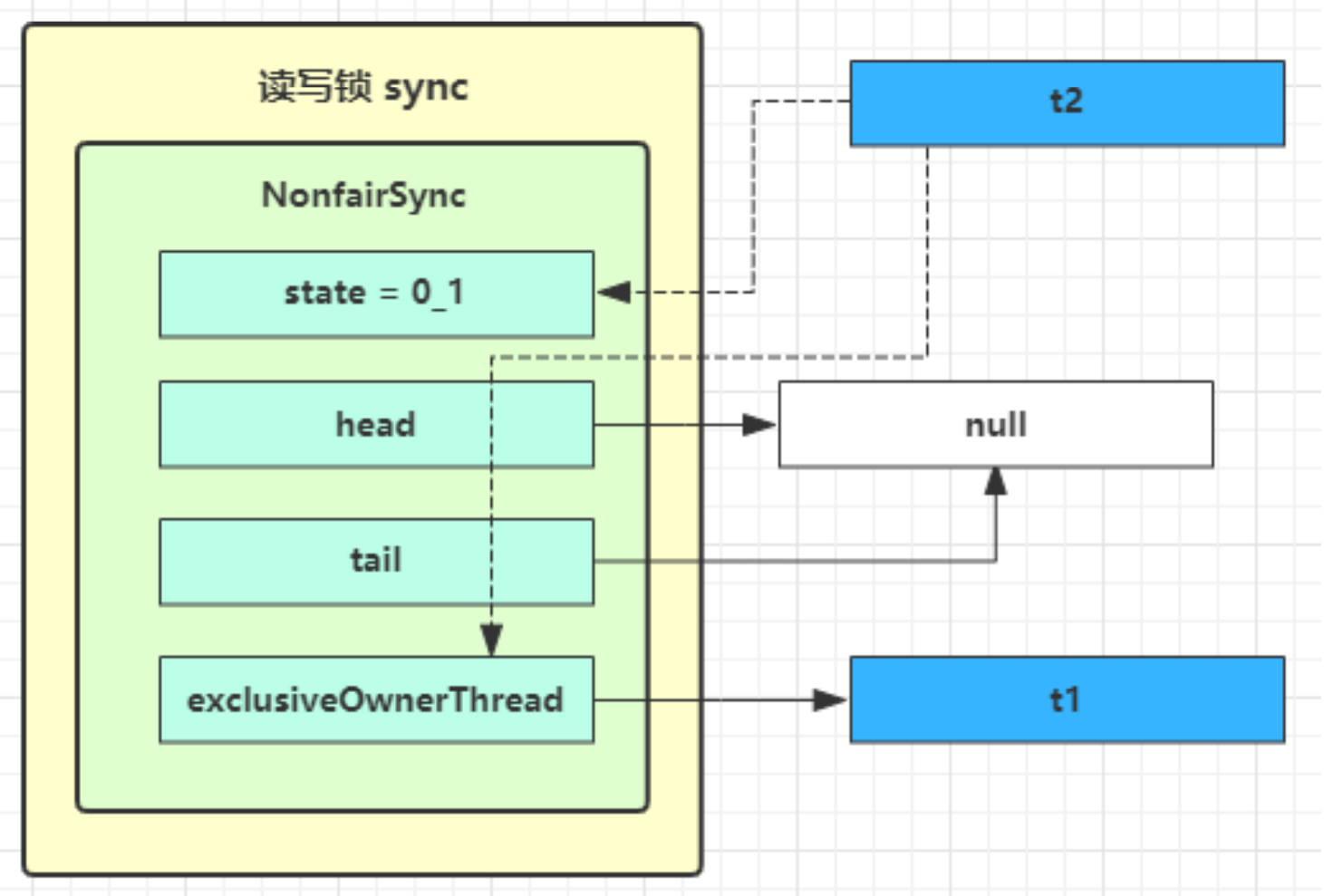

②t2执行r.lock，这时进入读锁的sync.acquireShared(1) 流程，首先会进入tryAcquireShared流程。如果有写锁占据，那么tryAcquireShared返回-1表示失败。（tryAcquireShared 返回值表示：-1 表示失败；0 表示成功，但后继节点不会继续唤醒；正数表示成功，而且数值是还有几个后继节点需要唤醒，读写锁返回 1）

//ReadLock类
public void lock() {
    sync.acquireShared(1);
}

//AQS抽象类
public final void acquireShared(int arg) {
    if (tryAcquireShared(arg) < 0)
        doAcquireShared(arg);
}

//Sync类
protected final int tryAcquireShared(int unused) {
    Thread current = Thread.currentThread();
    int c = getState();
    //如果是其它线程持有写锁, 获取读锁失败
    if (exclusiveCount(c) != 0 &&
        getExclusiveOwnerThread() != current)
        return -1;
    int r = sharedCount(c);
    //读锁不该阻塞(如果老二是写锁，读锁该阻塞), 并且小于读锁计数, 并且尝试增加计数成功
    if (!readerShouldBlock() &&
        r < MAX_COUNT &&
        compareAndSetState(c, c + SHARED_UNIT)) {
        if (r == 0) {
            firstReader = current;
            firstReaderHoldCount = 1;
        } else if (firstReader == current) {
            firstReaderHoldCount++;
        } else {
            ReentrantReadWriteLock.Sync.HoldCounter rh = cachedHoldCounter;
            if (rh == null || rh.tid != getThreadId(current))
                cachedHoldCounter = rh = readHolds.get();
            else if (rh.count == 0)
                readHolds.set(rh);
            rh.count++;
        }
        return 1;
    }
    return fullTryAcquireShared(current);
}

这时会进入sync.doAcquireShared(1) 流程。

private void doAcquireShared(int arg) {
    //将当前线程关联到一个 Node 对象上, 模式为共享模式
    final Node node = addWaiter(Node.SHARED);
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                //再一次尝试获取读锁
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    if (interrupted)
                        selfInterrupt();
                    failed = false;
                    return;
                }
            }
            //是否在获取读锁失败时阻塞（前一个阶段 waitStatus == Node.SIGNAL）
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

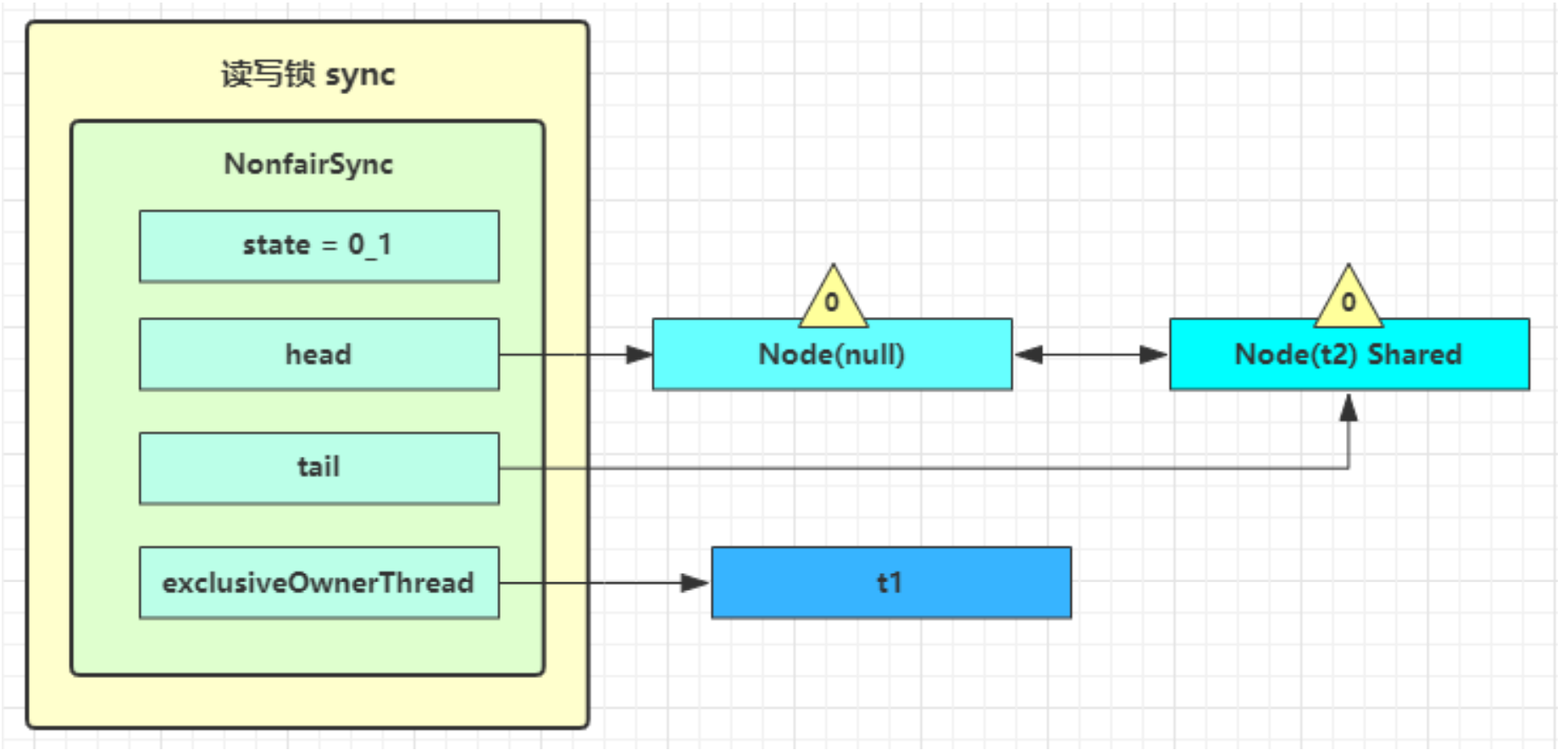

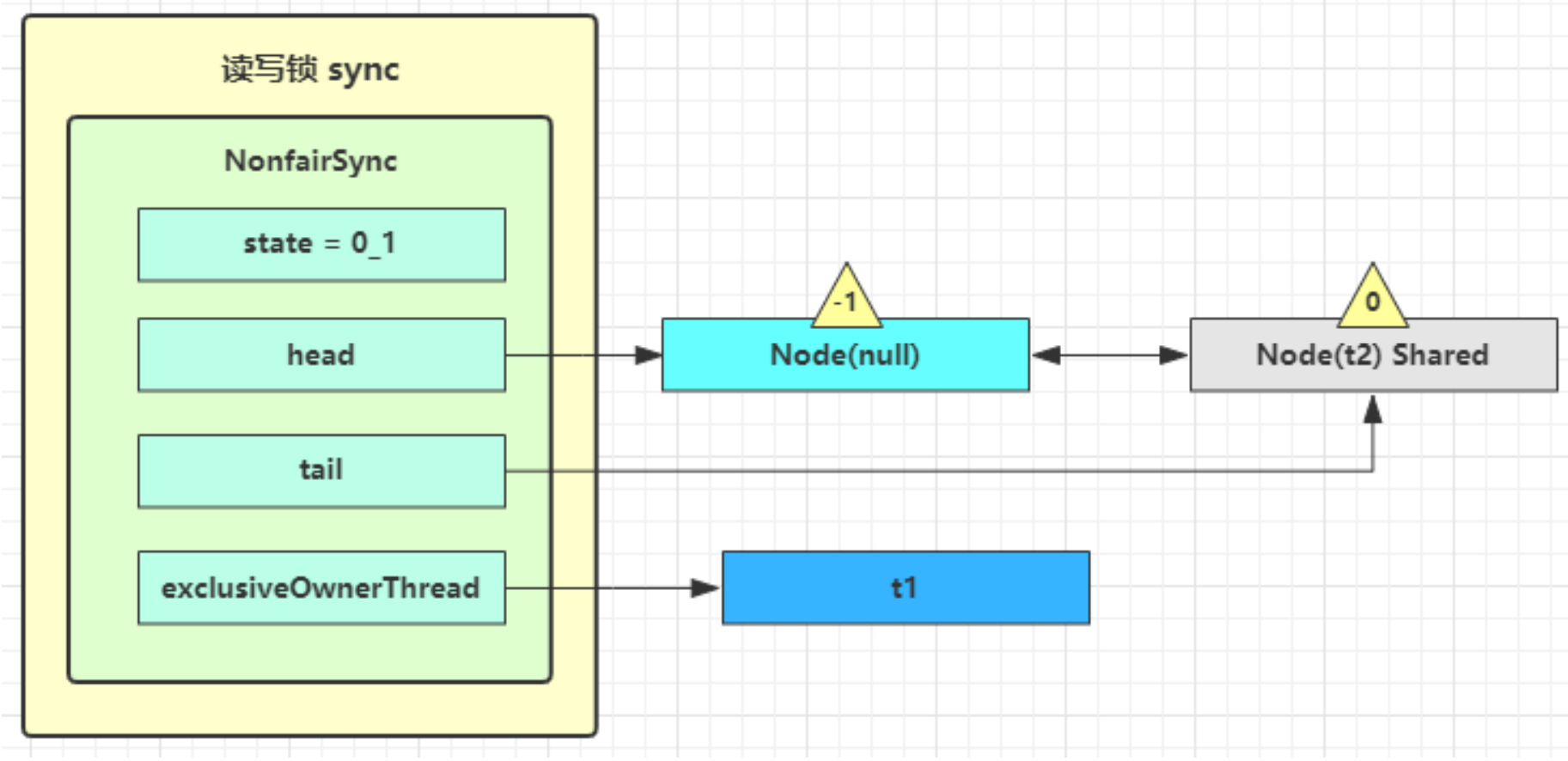

首先也是调用addWaiter添加节点，不同之处在于节点被设置为Node.SHARED模式而非Node.EXCLUSIVE模式，注意此时t2仍处于活跃状态。

t2会看看自己的节点是不是老二，如果是，还会再次调用tryAcquireShared(1)来尝试获取锁。
如果没有成功，在doAcquireShared内for(;;)循环一次，把前驱节点的waitStatus改为-1(在shouldParkAfterFailedAcquire()中实现)，再for(;;)循环一次尝试tryAcquireShared(1)如果还不成功，那么在parkAndCheckInterrupt()处park。

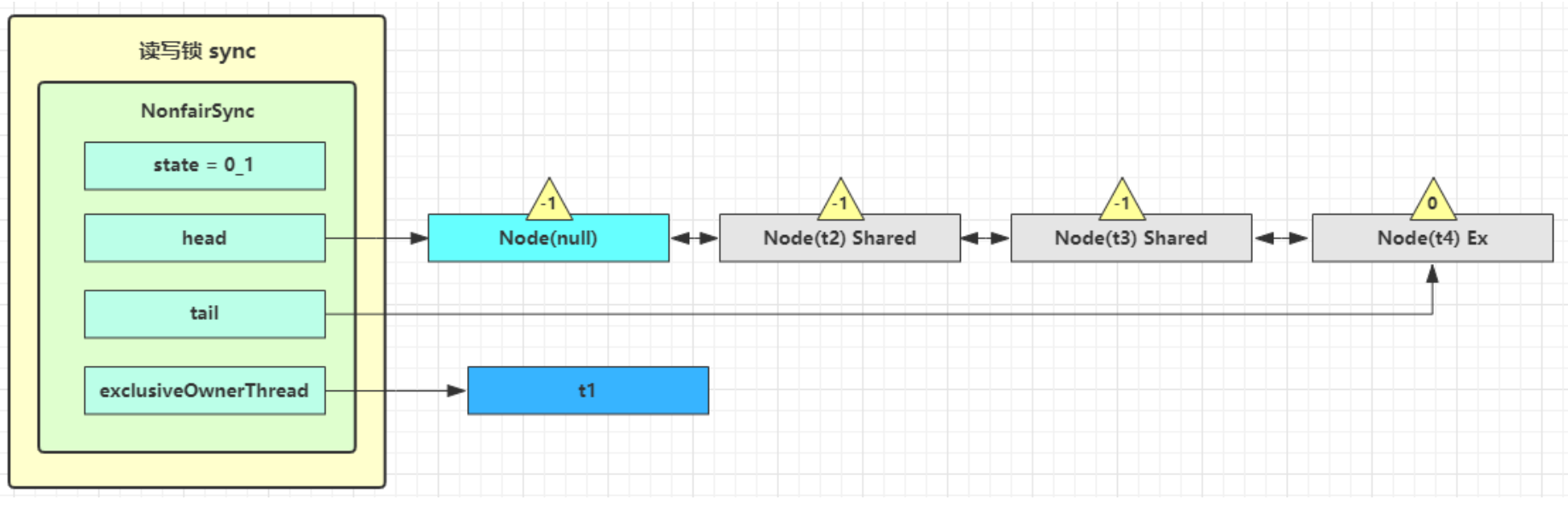

③这种状态下，假设又有t3加读锁和t4加写锁，这期间t1仍然持有锁，就变成了下面的样子：

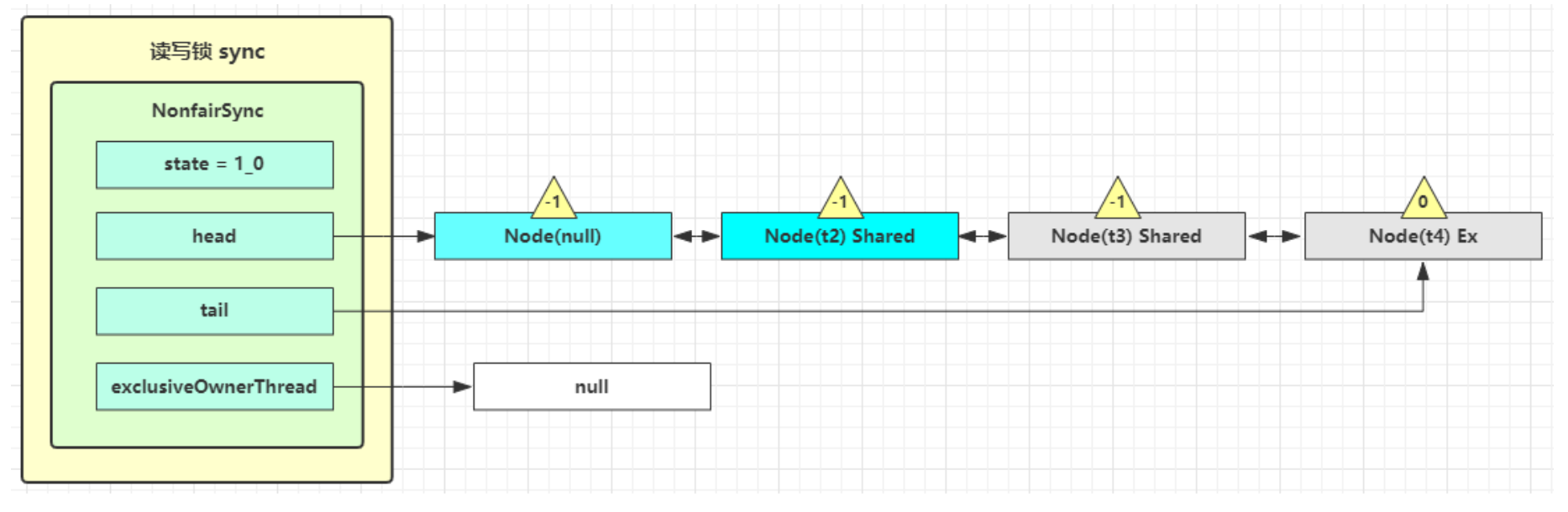

④这时如果t1 w.unlock，会走到写锁的sync.release(1)流程，调用sync.tryRelease(1)成功，变成下面的样子。

//WriteLock类
public void unlock() {
    sync.release(1);
}

//AQS抽象类
public final boolean release(int arg) {
    if (tryRelease(arg)) {
        Node h = head;
        if (h != null && h.waitStatus != 0)
            unparkSuccessor(h);
        return true;
    }
    return false;
}

//Sync抽象类
protected final boolean tryRelease(int releases) {
    if (!isHeldExclusively())
        throw new IllegalMonitorStateException();
    int nextc = getState() - releases;
    //因为可重入的原因, 写锁计数为 0, 才算释放成功
    boolean free = exclusiveCount(nextc) == 0;
    if (free)
        setExclusiveOwnerThread(null);
    setState(nextc);
    return free;
}

接下来执行唤醒流程sync.unparkSuccessor，即让老二恢复运行，这时t2在doAcquireShared内parkAndCheckInterrupt()处恢复运行。这回t2再来一次for (;;) 执行tryAcquireShared成功则让读锁计数加一。

private void doAcquireShared(int arg) {
    //将当前线程关联到一个 Node 对象上, 模式为共享模式
    final Node node = addWaiter(Node.SHARED);
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                //再一次尝试获取读锁
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    if (interrupted)
                        selfInterrupt();
                    failed = false;
                    return;
                }
            }
            //是否在获取读锁失败时阻塞（前一个阶段 waitStatus == Node.SIGNAL）
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

//Sync类
protected final int tryAcquireShared(int unused) {
    Thread current = Thread.currentThread();
    int c = getState();
    //如果是其它线程持有写锁, 获取读锁失败
    if (exclusiveCount(c) != 0 &&
        getExclusiveOwnerThread() != current)
        return -1;
    int r = sharedCount(c);
    //读锁不该阻塞(如果老二是写锁，读锁该阻塞), 并且小于读锁计数, 并且尝试增加计数成功
    if (!readerShouldBlock() &&
        r < MAX_COUNT &&
        compareAndSetState(c, c + SHARED_UNIT)) {
        if (r == 0) {
            firstReader = current;
            firstReaderHoldCount = 1;
        } else if (firstReader == current) {
            firstReaderHoldCount++;
        } else {
            ReentrantReadWriteLock.Sync.HoldCounter rh = cachedHoldCounter;
            if (rh == null || rh.tid != getThreadId(current))
                cachedHoldCounter = rh = readHolds.get();
            else if (rh.count == 0)
                readHolds.set(rh);
            rh.count++;
        }
        return 1;
    }
    return fullTryAcquireShared(current);
}

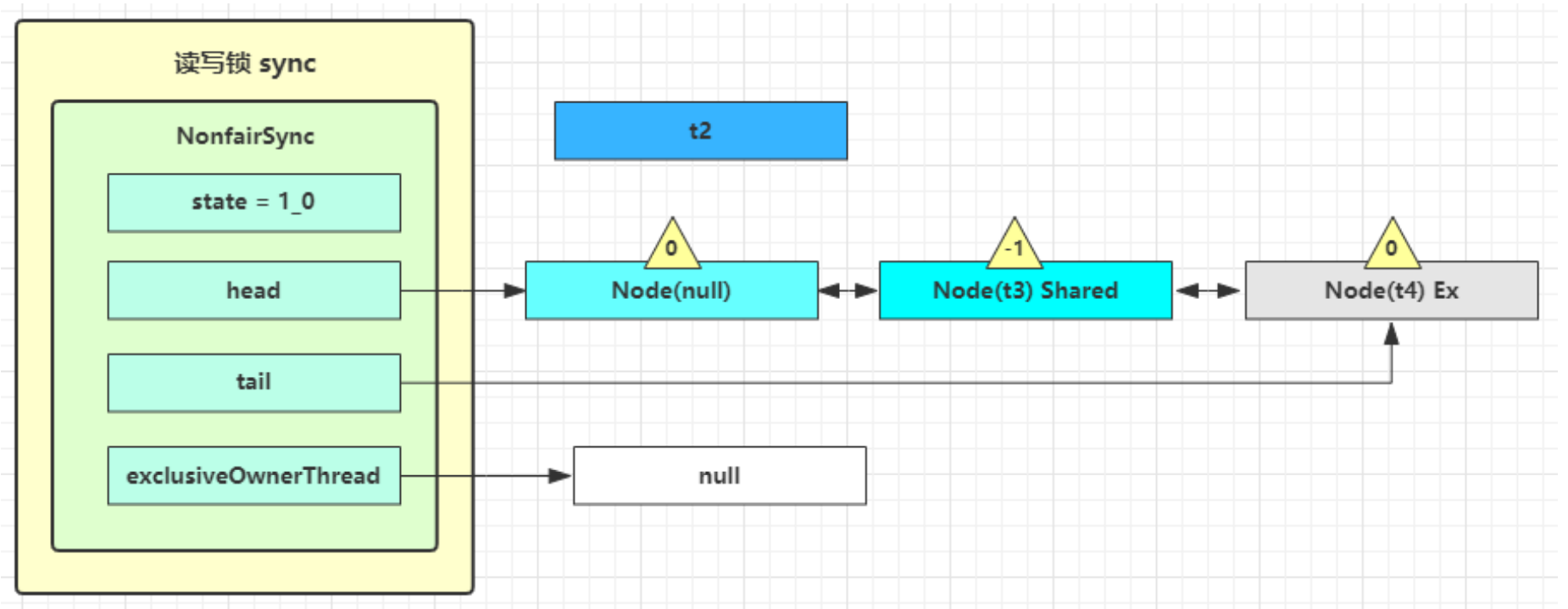

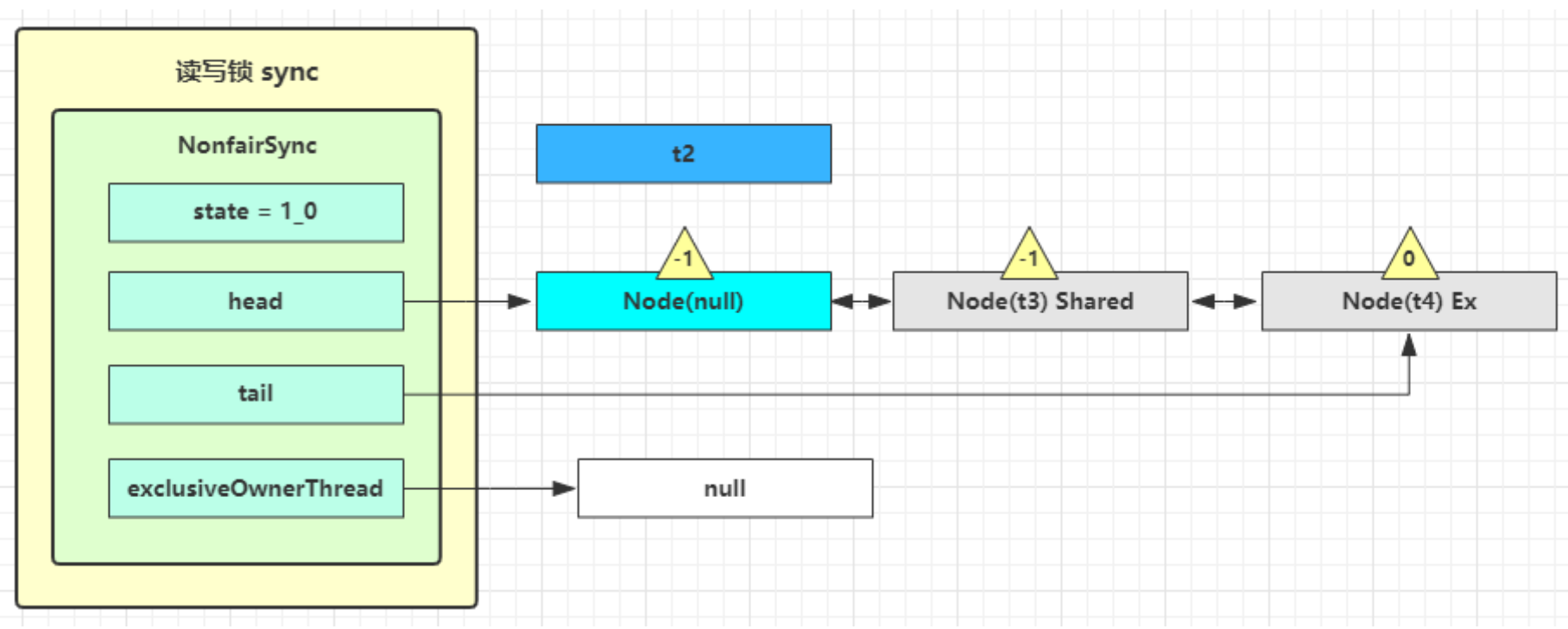

这时t2已经恢复运行，接下来t2调用setHeadAndPropagate(node, 1)，它原本所在节点被置为头节点。

//AQS抽象类
private void setHeadAndPropagate(Node node, int propagate) {
    Node h = head; // Record old head for check below
    //设置自己为 head
    setHead(node);
    //propagate 表示有共享资源（例如共享读锁或信号量）
    if (propagate > 0 || h == null || h.waitStatus < 0 ||
        (h = head) == null || h.waitStatus < 0) {
        Node s = node.next;
        //如果是最后一个节点或者是等待共享读锁的节点
        if (s == null || s.isShared())
            doReleaseShared();
    }
}

//AQS抽象类
private void doReleaseShared() {
    //如果 head.waitStatus == Node.SIGNAL ==> 0 成功, 下一个节点 unpark
    //如果 head.waitStatus == 0 ==> Node.PROPAGATE, 为了解决 bug, 见后面分析
    for (;;) {
        Node h = head;
        //队列还有节点
        if (h != null && h != tail) {
            int ws = h.waitStatus;
            if (ws == Node.SIGNAL) {
                //将头节点的状态从-1改为0，避免并发导致重复唤醒
                if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                    continue;            // loop to recheck cases
                //唤醒后继节点
                unparkSuccessor(h);
            }
            else if (ws == 0 &&
                     !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
                continue;                // loop on failed CAS
        }
        if (h == head)                   // loop if head changed
            break;
    }
}

事情还没完，在setHeadAndPropagate方法内还会检查下一个节点是否是shared，如果是则调用 doReleaseShared()将head的状态从-1改为0并唤醒老二，这时t3在doAcquireShared内parkAndCheckInterrupt()处恢复运行。

private void doAcquireShared(int arg) {
    //将当前线程关联到一个 Node 对象上, 模式为共享模式
    final Node node = addWaiter(Node.SHARED);
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                //再一次尝试获取读锁
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    if (interrupted)
                        selfInterrupt();
                    failed = false;
                    return;
                }
            }
            //是否在获取读锁失败时阻塞（前一个阶段 waitStatus == Node.SIGNAL）
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

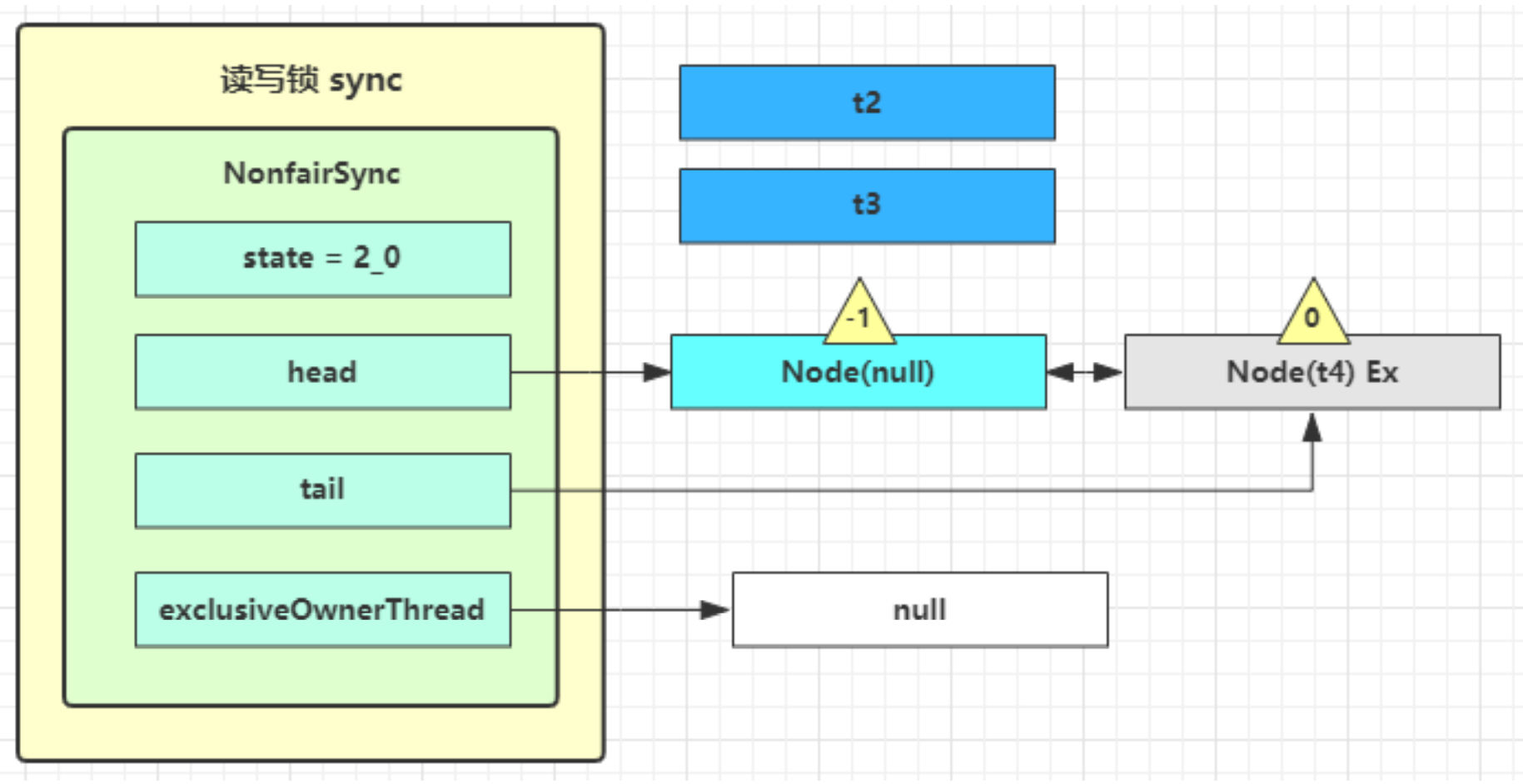

t3这回再来一次for (;;)执行tryAcquireShared成功则让读锁计数加一。

这时t3已经恢复运行，接下来t3调用setHeadAndPropagate(node, 1)，它原本所在节点被置为头节点。且下一个节点不是 shared 了，因此不会继续唤醒t4所在节点。

//AQS抽象类
private void setHeadAndPropagate(Node node, int propagate) {
    Node h = head; // Record old head for check below
    //设置自己为 head
    setHead(node);
    //propagate 表示有共享资源（例如共享读锁或信号量）
    if (propagate > 0 || h == null || h.waitStatus < 0 ||
        (h = head) == null || h.waitStatus < 0) {
        Node s = node.next;
        //如果是最后一个节点或者是等待共享读锁的节点
        if (s == null || s.isShared())
            doReleaseShared();
    }
}

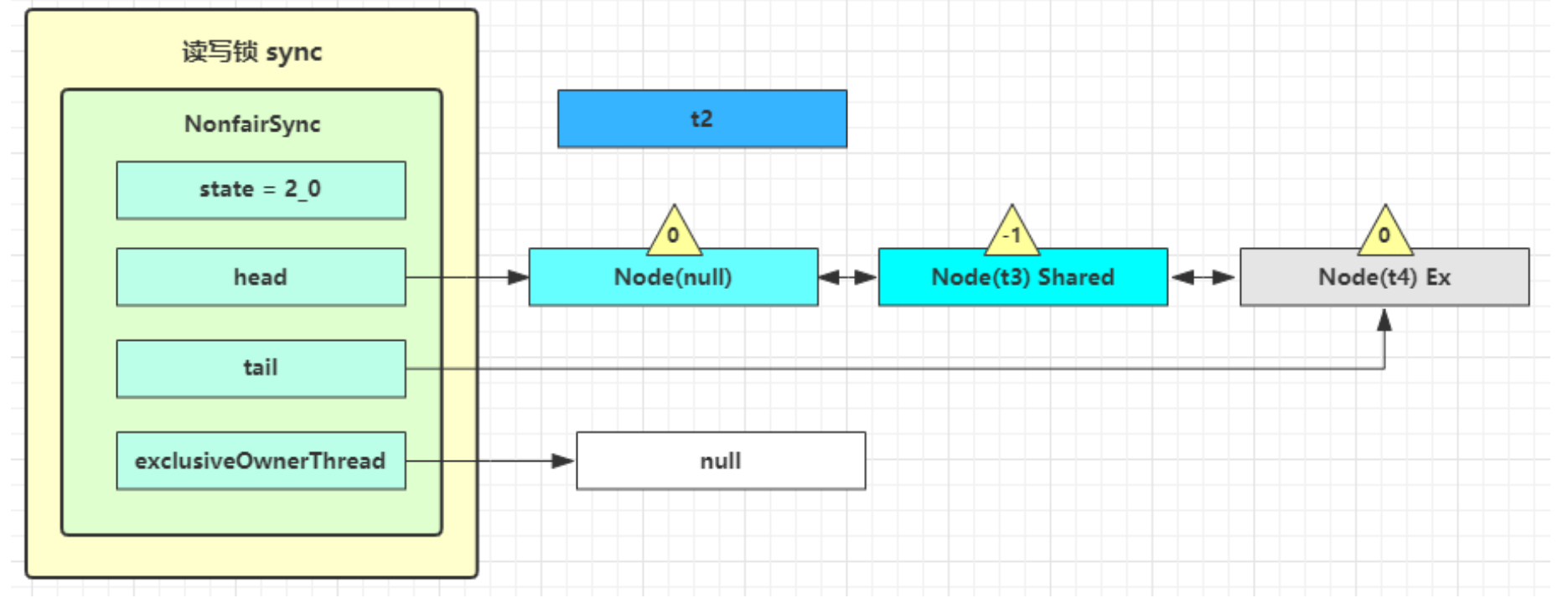

⑤现在假设t2 r.unlock， t2进入sync.releaseShared(1)中，调用tryReleaseShared(1)让计数减一，但由于计数还不为零。

//ReadLock类
public void unlock() {
    sync.releaseShared(1);
}

//AQS抽象类
public final boolean releaseShared(int arg) {
    if (tryReleaseShared(arg)) {
        doReleaseShared();
        return true;
    }
    return false;
}

//Sync抽象类
protected final boolean tryReleaseShared(int unused) {
    Thread current = Thread.currentThread();
    if (firstReader == current) {
        // assert firstReaderHoldCount > 0;
        if (firstReaderHoldCount == 1)
            firstReader = null;
        else
            firstReaderHoldCount--;
    } else {
        ReentrantReadWriteLock.Sync.HoldCounter rh = cachedHoldCounter;
        if (rh == null || rh.tid != getThreadId(current))
            rh = readHolds.get();
        int count = rh.count;
        if (count <= 1) {
            readHolds.remove();
            if (count <= 0)
                throw unmatchedUnlockException();
        }
        --rh.count;
    }
    for (;;) {
        int c = getState();
        int nextc = c - SHARED_UNIT;
        if (compareAndSetState(c, nextc))
            // Releasing the read lock has no effect on readers,
            // but it may allow waiting writers to proceed if
            // both read and write locks are now free.
            //读锁的计数不会影响其它获取读锁线程, 但会影响其它获取写锁线程
            //计数为 0 才是真正释放
            return nextc == 0;
    }
}

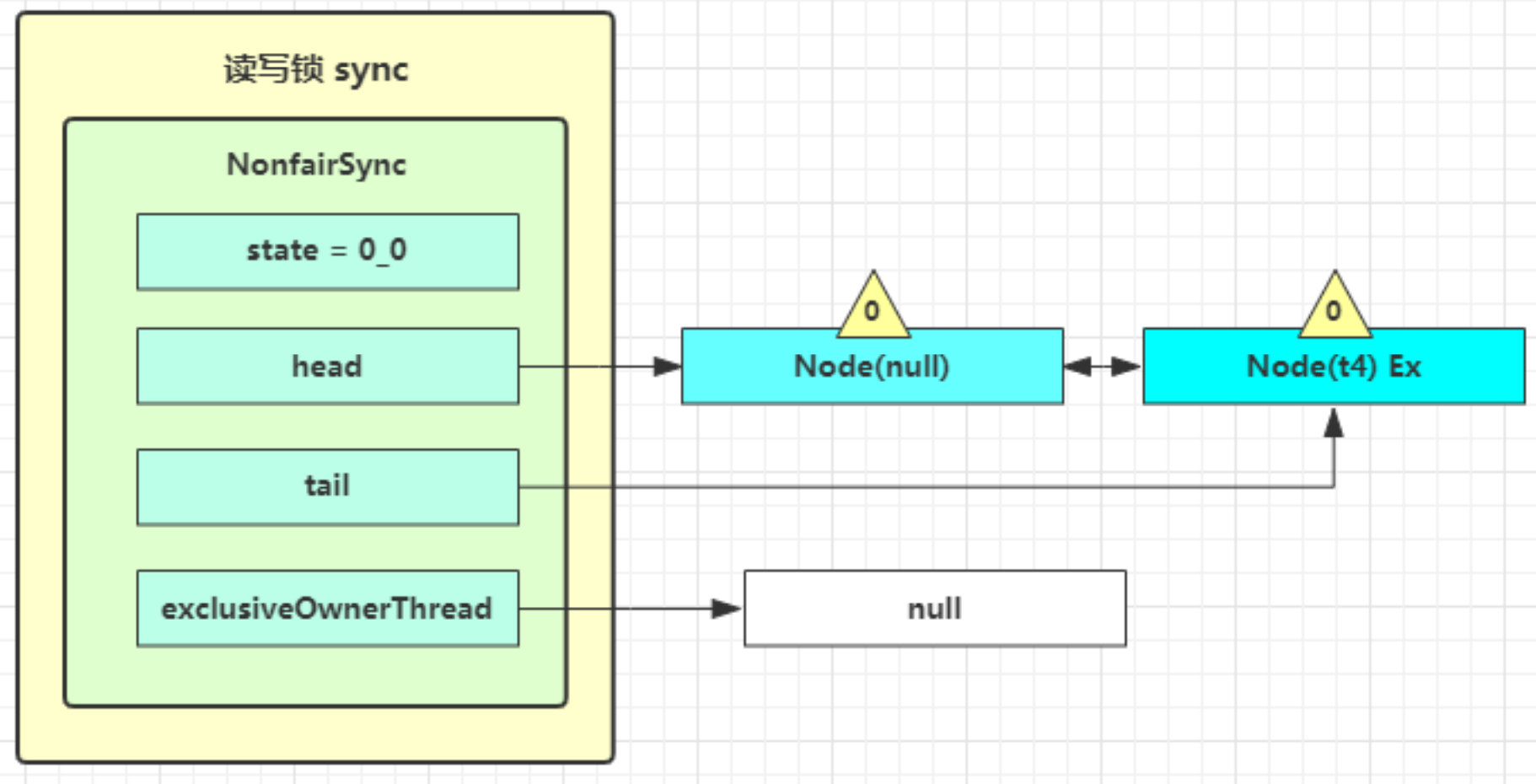

⑥接着如果t3 r.unlock，t3也会进入sync.releaseShared(1) 中，调用tryReleaseShared(1)让计数减一，这回计数为零了，进入doReleaseShared()将头节点从-1改为0并唤醒老二，即：

//AQS抽象类
public final boolean releaseShared(int arg) {
    if (tryReleaseShared(arg)) {
        doReleaseShared();
        return true;
    }
    return false;
}

//AQS抽象类
private void doReleaseShared() {
    for (;;) {
        Node h = head;
        if (h != null && h != tail) {
            int ws = h.waitStatus;
            //如果有其它线程也在释放读锁，那么需要将 waitStatus 先改为 0，防止 unparkSuccessor 被多次执行
            if (ws == Node.SIGNAL) {
                if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                    continue;            // loop to recheck cases
                unparkSuccessor(h);
            }
            //如果已经是 0 了，改为 -3，用来解决传播性
            else if (ws == 0 &&
                     !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
                continue;                // loop on failed CAS
        }
        if (h == head)                   // loop if head changed
            break;
    }
}

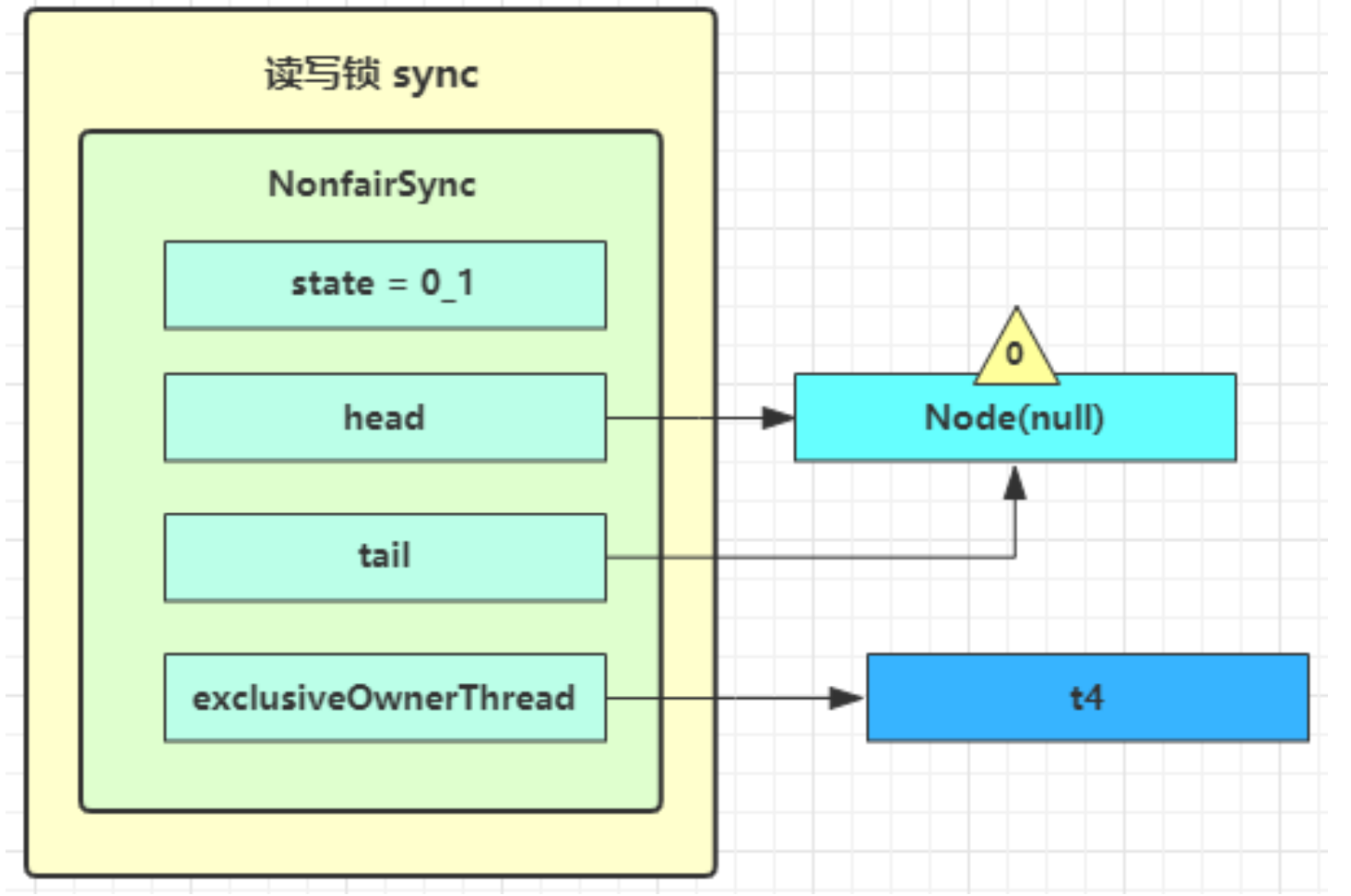

之后t4在acquireQueued中parkAndCheckInterrupt 处恢复运行，再次 for (;;) 这次自己是老二，并且没有其他竞争，tryAcquire(1) 成功，修改头结点，流程结束。

//AQS抽象类中
public final void acquire(int arg) {
    if (!tryAcquire(arg) &&
        acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
        selfInterrupt();
}

//AQS抽象类中
final boolean acquireQueued(final Node node, int arg) {
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            if (p == head && tryAcquire(arg)) {
                setHead(node);
                p.next = null; // help GC
                failed = false;
                return interrupted;
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

3.3 使用StampedLock

该类自JDK 8加入，是为了进一步优化读性能，它的特点是在使用读锁、写锁时都必须配合【戳】使用。
StampedLock不支持条件变量，也不支持可重入。

加解读锁：

1 2	long stamp = lock.readLock(); lock.unlockRead(stamp);

加解写锁:

1 2	long stamp = lock.writeLock(); lock.unlockWrite(stamp);

乐观读，StampedLock支持tryOptimisticRead()方法（乐观读），读取完毕后需要做一次戳校验，如果校验通过，表示这期间确实没有写操作，数据可以安全使用，如果校验没通过，需要重新获取读锁，保证数据安全。
1
2
3
4
5
long stamp = lock.tryOptimisticRead();
// 验戳
if(!lock.validate(stamp)){
// 锁升级
}

提供一个数据容器类，内部分别使用读锁保护数据的read()方法，写锁保护数据的write()方法。

  @Slf4j
  class DataContainerStamped {
      private int data;
      private final StampedLock lock = new StampedLock();
      public DataContainerStamped(int data) {
          this.data = data;
      }

      public int read(int readTime) {
          long stamp = lock.tryOptimisticRead();
          log.debug("optimistic read locking...{}", stamp);
          try {
              Thread.sleep(readTime);
          } catch (InterruptedException e) {
              e.printStackTrace();
          }
          if (lock.validate(stamp)) {
              log.debug("read finish...{}, data:{}", stamp, data);
              return data;
          }
          // 锁升级:乐观读-->读锁
          log.debug("updating to read lock... {}", stamp);
          try {
              stamp = lock.readLock();
              log.debug("read lock {}", stamp);
              try {
                  Thread.sleep(readTime);
              } catch (InterruptedException e) {
                  e.printStackTrace();
              }
              log.debug("read finish...{}, data:{}", stamp, data);
              return data;
          } finally {
              log.debug("read unlock {}", stamp);
              lock.unlockRead(stamp);
          }
      }

      public void write(int newData) {
          long stamp = lock.writeLock();
          log.debug("write lock {}", stamp);
          try {
              try {
                  Thread.sleep(2000);
              } catch (InterruptedException e) {
                  e.printStackTrace();
              }
              this.data = newData;
          } finally {
              log.debug("write unlock {}", stamp);
              lock.unlockWrite(stamp);
          }
      }
}

测试读-读可以优化。

  public class TestStampedLock {
      public static void main(String[] args) {
          DataContainerStamped dataContainer = new DataContainerStamped(1);
          new Thread(() -> {
              dataContainer.read(1000);
          }, "t1").start();
          try {
              Thread.sleep(500);
          } catch (InterruptedException e) {
              e.printStackTrace();
          }
          new Thread(() -> {
              dataContainer.read(0);
          }, "t2").start();
      }
}

执行结果如下，可以看到实际没有加读锁：

15:07:00.018 org.example.DataContainerStamped [t1] - optimistic read locking...256
15:07:00.527 org.example.DataContainerStamped [t2] - optimistic read locking...256
15:07:00.528 org.example.DataContainerStamped [t2] - read finish...256, data:1
15:07:01.038 org.example.DataContainerStamped [t1] - read finish...256, data:1

Process finished with exit code 0


  +  **测试读-写时可以优化。**

    ```java
    public class TestStampedLock {
        public static void main(String[] args) {
            DataContainerStamped dataContainer = new DataContainerStamped(1);
            new Thread(() -> {
                dataContainer.read(1000);
            }, "t1").start();
            try {
                Thread.sleep(500);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            new Thread(() -> {
                dataContainer.write(100);
            }, "t2").start();
        }
}

执行结果：

1
2
3
4
5
6
7
8
9
15:09:56.340 org.example.DataContainerStamped [t1] - optimistic read locking...256
15:09:56.843 org.example.DataContainerStamped [t2] - write lock 384
15:09:57.358 org.example.DataContainerStamped [t1] - updating to read lock... 256
15:09:58.854 org.example.DataContainerStamped [t2] - write unlock 384
15:09:58.854 org.example.DataContainerStamped [t1] - read lock 513
15:09:59.863 org.example.DataContainerStamped [t1] - read finish...513, data:100
15:09:59.863 org.example.DataContainerStamped [t1] - read unlock 513

Process finished with exit code 0

4、信号量

4.1 使用Semaphore

Semaphore即信号量，用来限制能同时访问共享资源的线程上限。

@Slf4j
public class TestSemaphore {
    public static void main(String[] args) {
        // 1. 创建 semaphore 对象
        Semaphore semaphore = new Semaphore(3);

        // 2. 10个线程同时运行
        for (int i = 0; i < 10; i++) {
            new Thread(() -> {
                try {
                    semaphore.acquire();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                try {
                    log.debug("running...");
                    try {
                        Thread.sleep(1000);
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                    log.debug("end...");
                } finally {
                    semaphore.release();
                }
            }).start();
        }
    }
}

执行结果：

15:28:28.452 org.example.TestSemaphore [Thread-2] - running...
15:28:28.452 org.example.TestSemaphore [Thread-0] - running...
15:28:28.452 org.example.TestSemaphore [Thread-1] - running...
15:28:29.458 org.example.TestSemaphore [Thread-1] - end...
15:28:29.458 org.example.TestSemaphore [Thread-0] - end...
15:28:29.458 org.example.TestSemaphore [Thread-2] - end...
15:28:29.458 org.example.TestSemaphore [Thread-5] - running...
15:28:29.458 org.example.TestSemaphore [Thread-3] - running...
15:28:29.458 org.example.TestSemaphore [Thread-4] - running...
15:28:30.460 org.example.TestSemaphore [Thread-3] - end...
15:28:30.460 org.example.TestSemaphore [Thread-4] - end...
15:28:30.461 org.example.TestSemaphore [Thread-6] - running...
15:28:30.460 org.example.TestSemaphore [Thread-5] - end...
15:28:30.461 org.example.TestSemaphore [Thread-7] - running...
15:28:30.461 org.example.TestSemaphore [Thread-8] - running...
15:28:31.464 org.example.TestSemaphore [Thread-8] - end...
15:28:31.464 org.example.TestSemaphore [Thread-7] - end...
15:28:31.464 org.example.TestSemaphore [Thread-6] - end...
15:28:31.464 org.example.TestSemaphore [Thread-9] - running...
15:28:32.467 org.example.TestSemaphore [Thread-9] - end...

Process finished with exit code 0

Semaphore可以使用在自定义数据库连接池上。

一个线上商城应用，QPS达到数千，如果每次都重新创建和关闭数据库连接，性能会受到极大影响。这时预先创建好一批连接，放入连接池。一次请求到达后，从连接池获取连接，使用完毕后再还回连接池，这样既节约了连接的创建和关闭时间，也实现了连接的重用，不至于让庞大的连接数压垮数据库。
使用Semaphore限流，在访问高峰期时，让请求线程阻塞，高峰期过去再释放许可，当然它只适合限制单机线程数量，并且仅是限制线程数，而不是限制资源数。

原本自定义数据库连接池：

@Slf4j
class Pool {
    // 1. 连接池大小
    private final int poolSize;
    // 2. 连接对象数组
    private Connection[] connections;
    // 3. 连接状态数组 0 表示空闲， 1 表示繁忙
    private AtomicIntegerArray states;
    // 4. 构造方法初始化
    public Pool(int poolSize) {
        this.poolSize = poolSize;
        this.connections = new Connection[poolSize];
        this.states = new AtomicIntegerArray(new int[poolSize]);
        for (int i = 0; i < poolSize; i++) {
            connections[i] = new MockConnection("连接" + (i+1));
        }
    }
    // 5. 借连接
    public Connection borrow() {
        while(true) {
            for (int i = 0; i < poolSize; i++) {
                // 获取空闲连接
                if(states.get(i) == 0) {
                    if (states.compareAndSet(i, 0, 1)) {
                        log.debug("borrow {}", connections[i]);
                        return connections[i];
                    }
                }
            }
            // 如果没有空闲连接，当前线程进入等待
            synchronized (this) {
                try {
                    log.debug("wait...");
                    this.wait();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }
    }
    // 6. 归还连接
    public void free(Connection conn) {
        for (int i = 0; i < poolSize; i++) {
            if (connections[i] == conn) {
                states.set(i, 0);
                synchronized (this) {
                    log.debug("free {}", conn);
                    this.notifyAll();
                }
                break;
            }
        }
    }
}

class MockConnection implements Connection {
    private String name;

    public MockConnection(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return "MockConnection{" +
                "name='" + name + '\'' +
                '}';
    }
}

测试代码：

@Slf4j
public class TestPools {
    public static void main(String[] args) {
        Pool pool = new Pool(2);
        for (int i = 0; i < 5; i++) {
            new Thread(() -> {
                Connection conn = pool.borrow();
                try {
                    Thread.sleep(new Random().nextInt(1000));
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                pool.free(conn);
            }).start();
        }

    }
}

执行结果：

15:51:34.811 org.example.Pool [Thread-2] - wait...
15:51:34.811 org.example.Pool [Thread-1] - borrow MockConnection{name='连接2'}
15:51:34.813 org.example.Pool [Thread-4] - wait...
15:51:34.813 org.example.Pool [Thread-3] - wait...
15:51:34.811 org.example.Pool [Thread-0] - borrow MockConnection{name='连接1'}
15:51:34.883 org.example.Pool [Thread-0] - free MockConnection{name='连接1'}
15:51:34.883 org.example.Pool [Thread-4] - wait...
15:51:34.883 org.example.Pool [Thread-3] - borrow MockConnection{name='连接1'}
15:51:34.883 org.example.Pool [Thread-2] - wait...
15:51:35.336 org.example.Pool [Thread-1] - free MockConnection{name='连接2'}
15:51:35.336 org.example.Pool [Thread-2] - borrow MockConnection{name='连接2'}
15:51:35.336 org.example.Pool [Thread-4] - wait...
15:51:35.614 org.example.Pool [Thread-3] - free MockConnection{name='连接1'}
15:51:35.615 org.example.Pool [Thread-4] - borrow MockConnection{name='连接1'}
15:51:36.118 org.example.Pool [Thread-4] - free MockConnection{name='连接1'}
15:51:36.295 org.example.Pool [Thread-2] - free MockConnection{name='连接2'}

Process finished with exit code 0

使用Semaphore改进后的连接池代码：

@Slf4j
class Pool {
    // 1. 连接池大小
    private final int poolSize;

    // 2. 连接对象数组
    private Connection[] connections;

    // 3. 连接状态数组 0 表示空闲， 1 表示繁忙
    private AtomicIntegerArray states;

    private Semaphore semaphore;

    // 4. 构造方法初始化
    public Pool(int poolSize) {
        this.poolSize = poolSize;
        // 让许可数与资源数一致
        this.semaphore = new Semaphore(poolSize);
        this.connections = new Connection[poolSize];
        this.states = new AtomicIntegerArray(new int[poolSize]);
        for (int i = 0; i < poolSize; i++) {
            connections[i] = new MockConnection("连接" + (i+1));
        }
    }

    // 5. 借连接
    public Connection borrow() {// t1, t2, t3
        // 获取许可
        try {
            semaphore.acquire(); // 没有许可的线程，在此等待
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        for (int i = 0; i < poolSize; i++) {
            // 获取空闲连接
            if(states.get(i) == 0) {
                if (states.compareAndSet(i, 0, 1)) {
                    log.debug("borrow {}", connections[i]);
                    return connections[i];
                }
            }
        }
        // 不会执行到这里
        return null;
    }
    // 6. 归还连接
    public void free(Connection conn) {
        for (int i = 0; i < poolSize; i++) {
            if (connections[i] == conn) {
                states.set(i, 0);
                log.debug("free {}", conn);
                semaphore.release();
                break;
            }
        }
    }
}

4.2 Semaphore原理

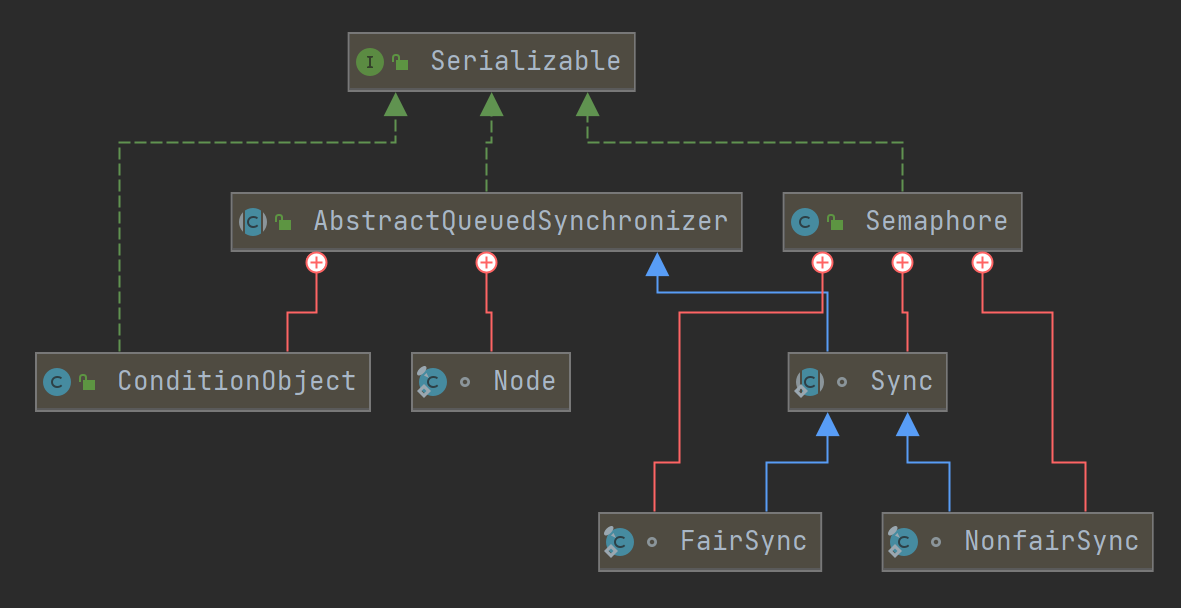

Semaphore也是基于AQS实现的，其内部结构如下图：

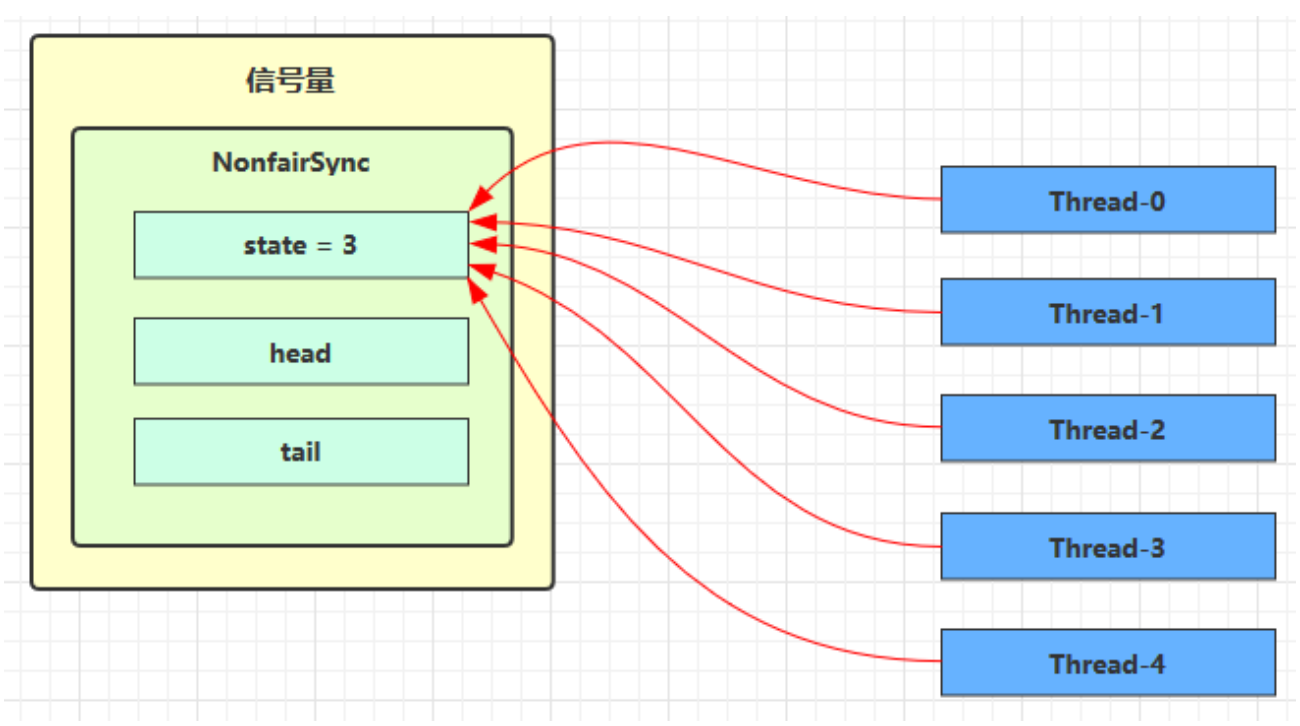

①从调用构造方法开始，假设传入许可数为3，这时5个线程来获取资源。

1
2
3

public Semaphore(int permits) {
    sync = new NonfairSync(permits);
}

static final class NonfairSync extends Sync {
    private static final long serialVersionUID = -2694183684443567898L;

    NonfairSync(int permits) {
        super(permits);
    }

    protected int tryAcquireShared(int acquires) {
        return nonfairTryAcquireShared(acquires);
    }
}

abstract static class Sync extends AbstractQueuedSynchronizer {
    private static final long serialVersionUID = 1192457210091910933L;

    Sync(int permits) {
        setState(permits);
    }
}

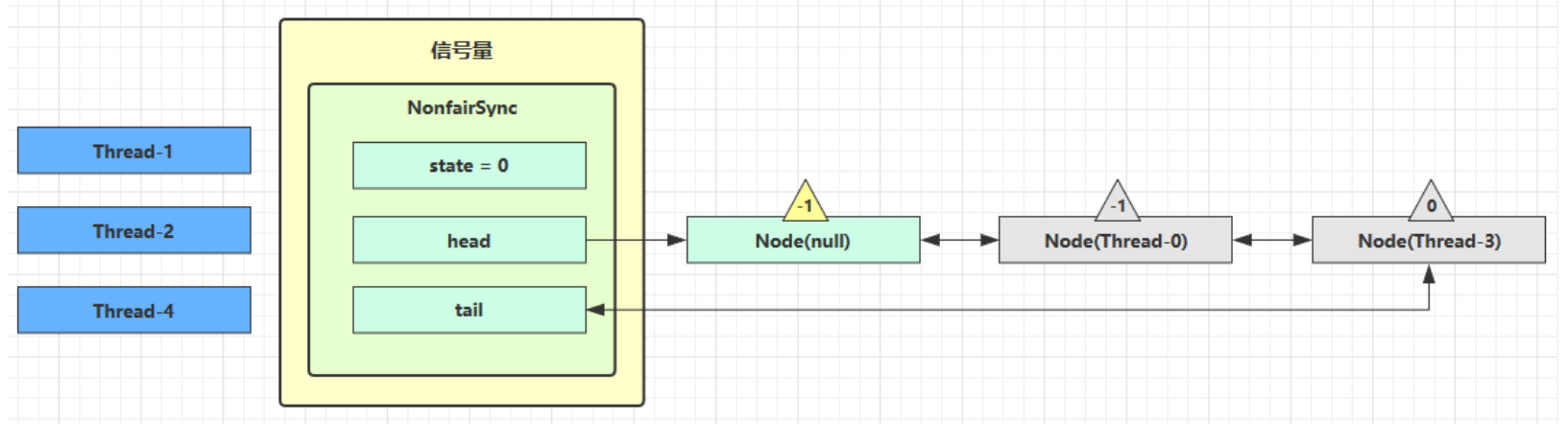

②假设其中Thread-1，Thread-2，Thread-4 cas竞争成功(调用acquire()方法)，而Thread-0和Thread-3竞争失败，进入AQS队列park阻塞。

//Semaphore类
public void acquire() throws InterruptedException {
    sync.acquireSharedInterruptibly(1);
}

//AQS抽象类
public final void acquireSharedInterruptibly(int arg)
    throws InterruptedException {
    if (Thread.interrupted())
        throw new InterruptedException();
    if (tryAcquireShared(arg) < 0)
        doAcquireSharedInterruptibly(arg);
}

static final class NonfairSync extends Sync {
    private static final long serialVersionUID = -2694183684443567898L;

    protected int tryAcquireShared(int acquires) {
        return nonfairTryAcquireShared(acquires);
    }
}

//Sync抽象类
final int nonfairTryAcquireShared(int acquires) {
    for (;;) {
        int available = getState();
        int remaining = available - acquires;
        //如果许可已经用完, 返回负数, 表示获取失败, 进入 doAcquireSharedInterruptibly
        if (remaining < 0 ||
            //如果 cas 重试成功, 返回正数, 表示获取成功
            compareAndSetState(available, remaining))
            return remaining;
    }
}

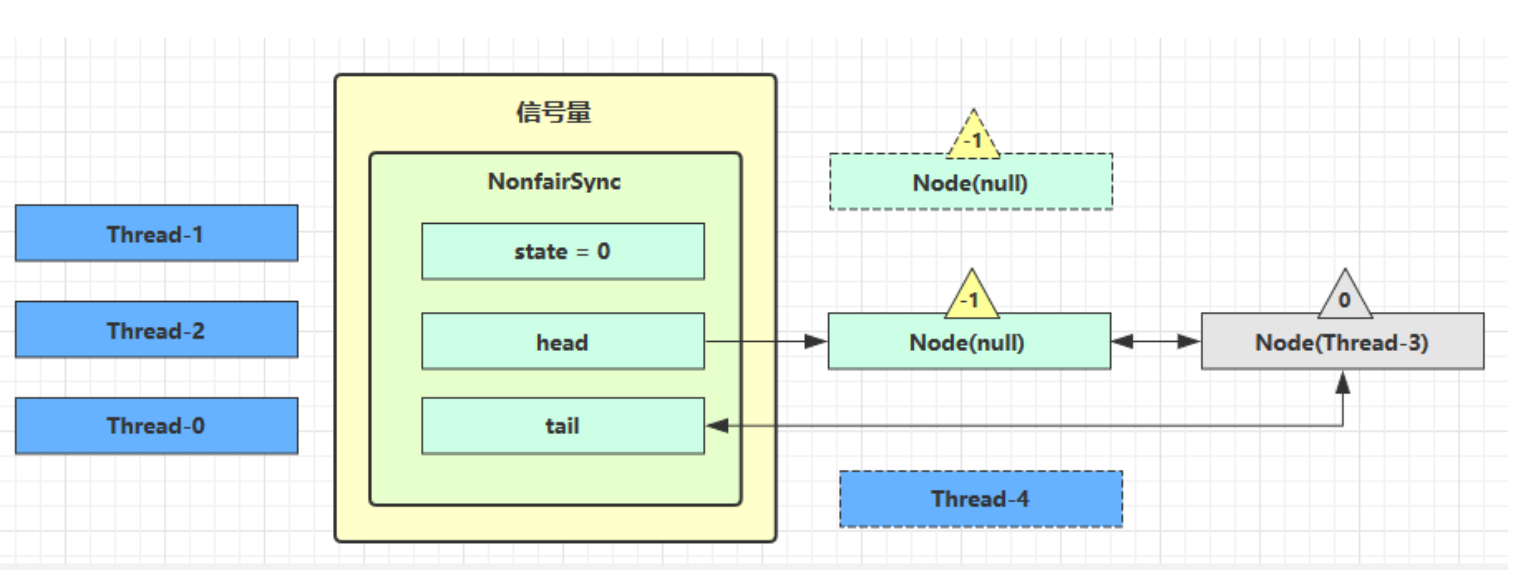

而如果获取不到许可，会执行doAcquireSharedInterruptibly(arg)：

//AQS抽象类
private void doAcquireSharedInterruptibly(int arg)
    throws InterruptedException {
    final Node node = addWaiter(Node.SHARED);
    boolean failed = true;
    try {
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                //再次尝试获取许可
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    //成功后本线程出队（AQS）, 所在 Node设置为 head
                    //r 表示可用资源数, 为 0 则不会继续传播
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    failed = false;
                    return;
                }
            }
            //不成功, 设置上一个节点 waitStatus = Node.SIGNAL, 下轮进入 park 阻塞
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                throw new InterruptedException();
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

③假设这时Thread-4释放了permits(调用了release())，状态如下：

//Semaphore类
public void release() {
    sync.releaseShared(1);
}

//AQS抽象类
public final boolean releaseShared(int arg) {
    if (tryReleaseShared(arg)) {
        doReleaseShared();
        return true;
    }
    return false;
}

//Sync抽象类
protected final boolean tryReleaseShared(int releases) {
    for (;;) {
        int current = getState();
        int next = current + releases;
        if (next < current) // overflow
            throw new Error("Maximum permit count exceeded");
        if (compareAndSetState(current, next))
            return true;
    }
}

//AQS抽象类
private void doReleaseShared() {
    for (;;) {
        Node h = head;
        if (h != null && h != tail) {
            int ws = h.waitStatus;
            if (ws == Node.SIGNAL) {
                if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                    continue;            // loop to recheck cases
                //唤醒后继节点
                unparkSuccessor(h);
            }
            else if (ws == 0 &&
                     !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
                continue;                // loop on failed CAS
        }
        if (h == head)                   // loop if head changed
            break;
    }
}

④这时Thread-0被唤醒，permits再次设置为0，设置自己为head节点，断开原来的head节点，unpark接下来的Thread-3节点，但由于permits是0，因此Thread-3在尝试不成功后再次进入park状态。

//AQS抽象类
private void doAcquireSharedInterruptibly(int arg)
    throws InterruptedException {
    final Node node = addWaiter(Node.SHARED);
    boolean failed = true;
    try {
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                //再次尝试获取许可
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    //成功后本线程出队（AQS）, 所在 Node设置为 head
                    //r 表示可用资源数, 为 0 则不会继续传播
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    failed = false;
                    return;
                }
            }
            //不成功, 设置上一个节点 waitStatus = Node.SIGNAL, 下轮进入 park 阻塞
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                throw new InterruptedException();
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

//AQS抽象类
private void setHeadAndPropagate(Node node, int propagate) {
    Node h = head; // Record old head for check below
    setHead(node);
    if (propagate > 0 || h == null || h.waitStatus < 0 ||
        (h = head) == null || h.waitStatus < 0) {
        Node s = node.next;
        //下个节点不为null且为共享节点
        if (s == null || s.isShared())
            //唤醒后继共享节点
            doReleaseShared();
    }
}

//AQS抽象类
private void doReleaseShared() {
    for (;;) {
        Node h = head;
        if (h != null && h != tail) {
            int ws = h.waitStatus;
            //将自己的Status从-1变成0后唤醒后继节点
            if (ws == Node.SIGNAL) {
                if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                    continue;            // loop to recheck cases
                unparkSuccessor(h);
            }
            else if (ws == 0 &&
                     !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
                continue;                // loop on failed CAS
        }
        if (h == head)                   // loop if head changed
            break;
    }
}

5、CountdownLatch

用来进行线程同步协作，等待所有线程完成倒计时。

其中构造参数用来初始化等待计数值，await()用来等待计数归零，countDown()用来让计数减一。

@Slf4j
public class TestCountdownLatch {
    public static void main(String[] args) throws InterruptedException {
        CountDownLatch latch = new CountDownLatch(3);
        new Thread(() -> {
            log.debug("begin...");
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            latch.countDown();
            log.debug("end...{}", latch.getCount());
        }).start();
        new Thread(() -> {
            log.debug("begin...");
            try {
                Thread.sleep(2000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            latch.countDown();
            log.debug("end...{}", latch.getCount());
        }).start();
        new Thread(() -> {
            log.debug("begin...");
            try {
                Thread.sleep(1500);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            latch.countDown();
            log.debug("end...{}", latch.getCount());
        }).start();
        log.debug("waiting...");
        latch.await();
        log.debug("wait end...");
    }
}

执行结果：

14:59:26.184 org.example.TestCountdownLatch [main] - waiting...
14:59:26.184 org.example.TestCountdownLatch [Thread-2] - begin...
14:59:26.184 org.example.TestCountdownLatch [Thread-1] - begin...
14:59:26.184 org.example.TestCountdownLatch [Thread-0] - begin...
14:59:27.200 org.example.TestCountdownLatch [Thread-0] - end...2
14:59:27.688 org.example.TestCountdownLatch [Thread-2] - end...1
14:59:28.192 org.example.TestCountdownLatch [Thread-1] - end...0
14:59:28.192 org.example.TestCountdownLatch [main] - wait end...

Process finished with exit code 0

可以配合线程池使用，改进如下：

@Slf4j
public class TestCountdownLatch {
    public static void main(String[] args) throws InterruptedException {
        CountDownLatch latch = new CountDownLatch(3);
        ExecutorService service = Executors.newFixedThreadPool(4);
        service.submit(() -> {
            log.debug("begin...");
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            latch.countDown();
            log.debug("end...{}", latch.getCount());
        });
        service.submit(() -> {
            log.debug("begin...");
            try {
                Thread.sleep(1500);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            latch.countDown();
            log.debug("end...{}", latch.getCount());
        });
        service.submit(() -> {
            log.debug("begin...");
            try {
                Thread.sleep(2000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            latch.countDown();
            log.debug("end...{}", latch.getCount());
        });
        service.submit(()->{
            try {
                log.debug("waiting...");
                latch.await();
                log.debug("wait end...");
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        });
    }
}

执行结果：

15:02:59.023 org.example.TestCountdownLatch [main] - waiting...
15:02:59.023 org.example.TestCountdownLatch [Thread-2] - begin...
15:02:59.023 org.example.TestCountdownLatch [Thread-1] - begin...
15:02:59.023 org.example.TestCountdownLatch [Thread-0] - begin...
15:03:00.035 org.example.TestCountdownLatch [Thread-0] - end...2
15:03:00.533 org.example.TestCountdownLatch [Thread-2] - end...1
15:03:01.039 org.example.TestCountdownLatch [Thread-1] - end...0
15:03:01.039 org.example.TestCountdownLatch [main] - wait end...

Process finished with exit code 0

6、CyclicBarrier

循环栅栏，用来进行线程协作，等待线程满足某个计数。构造时设置计数个数，每个线程执行到某个需要“同步”的时刻调用await()方法进行等待，当等待的线程数满足计数个数时，继续执行。

@Slf4j
public class TestCyclicBarrier {
    public static void main(String[] args) {
        ExecutorService service = Executors.newFixedThreadPool(2);
        CyclicBarrier barrier = new CyclicBarrier(2, ()-> {
            log.debug("task1, task2 finish...");
        });
        for (int i = 0; i < 3; i++) {
            service.submit(() -> {
                log.debug("task1 begin...");
                try {
                    Thread.sleep(1000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                try {
                    barrier.await(); // 2-1=1,阻塞
                } catch (InterruptedException | BrokenBarrierException e) {
                    e.printStackTrace();
                }
            });
            service.submit(() -> {
                log.debug("task2 begin...");
                try {
                    Thread.sleep(2000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                try {
                    barrier.await(); // 1-1=0
                } catch (InterruptedException | BrokenBarrierException e) {
                    e.printStackTrace();
                }
            });
        }
        service.shutdown();
    }
}

执行结果：

15:09:03.303 org.example.TestCyclicBarrier [pool-1-thread-2] - task2 begin...
15:09:03.303 org.example.TestCyclicBarrier [pool-1-thread-1] - task1 begin...
15:09:05.314 org.example.TestCyclicBarrier [pool-1-thread-2] - task1, task2 finish...
15:09:05.314 org.example.TestCyclicBarrier [pool-1-thread-2] - task1 begin...
15:09:05.314 org.example.TestCyclicBarrier [pool-1-thread-1] - task2 begin...
15:09:07.322 org.example.TestCyclicBarrier [pool-1-thread-1] - task1, task2 finish...
15:09:07.322 org.example.TestCyclicBarrier [pool-1-thread-1] - task1 begin...
15:09:07.322 org.example.TestCyclicBarrier [pool-1-thread-2] - task2 begin...
15:09:09.323 org.example.TestCyclicBarrier [pool-1-thread-2] - task1, task2 finish...

Process finished with exit code 0
